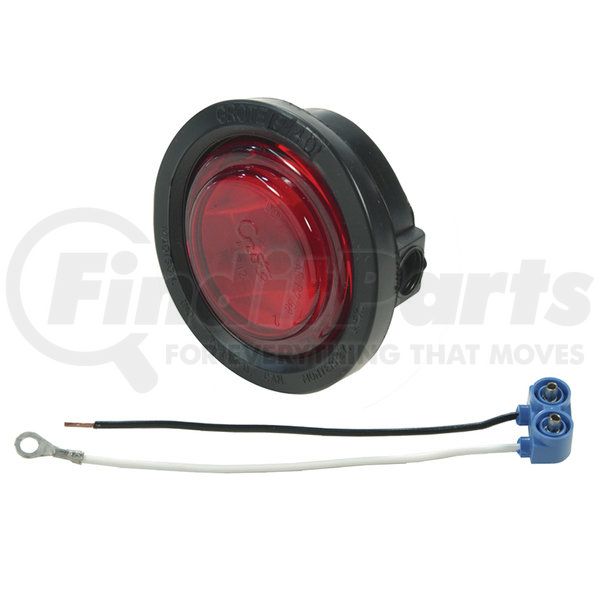

Grote 47472 - SuperNova® 2 1/2" LED Clearance / Marker Light - Kit (47122 + 91400 + 67001)
$1099
MSRP: $24.95
Save: $13.96
In stock
limited availability at this price!
. Learn more
GROTE part description
Technical specifications
| Material: | PVC Grommet, Polycarbonate Housing, Polycarbonate Lens |
| Color: | Red |
| Lens Color: | Red |
| Amperage: | .06A |
| Mounting Type: | Grommet |
| Connection Type: | PL-10 |
| Size: | 2½" |
| Regulations: | FMVSS 108 |
| Functions: | P2 |
| Diameter: | 3.25" |
With encapsulant potting for total circuit board protection and hermetic lens-to-housing seal, Our SuperNova® 2 1/2" LED Clearance Marker Lights use the same UBS double-seal pigtails as incandescent versions for a quick Plug-and-Go® Retrofit. The tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure causing leak paths.
Features & Benefits
- Hermetic lens-to-housing seal
- Encapsulant potting for total circuit-board protection
- Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit
- Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
| Color/Finish | Red |
| Material | Polycarbonate |
| Voltage | 12V / .06A |
| Lighting Technology | LED |
Product Description
CLR/MKR,2.5",RED,LED,47122+91400+67001
Features & Benefits
- Hermetic lens-to-housing seal
- Hermetic lens-to-housing seal
- Encapsulant potting for total circuit-board protection
- Encapsulant potting for total circuit-board protection
- Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit
- Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit
- Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
- Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
With encapsulant potting for total circuit board protection and hermetic lens-to-housing seal, Our SuperNova® 2 1/2" LED Clearance Marker Lights use the same UBS double-seal pigtails as incandescent versions for a quick Plug-and-Go® Retrofit. The tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure causing leak paths.
Product Attributes
| Amperage | .06A |
| Color | Red |
| Connection Type | PL-10 |
| Function | P2 |
| LED | Y |
| Lens Color | Red |
| Material | Polycarbonate Lens, Polycarbonate Housing, PVC Grommet |
| Mounting Type | Grommet |
| Regulations | FMVSS 108 |
| Shape | Round |
| Voltage | 12V |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8512200000 |
| Refurbished Part | N |
| Remanufactured Part | N |
| UPC | 00089373107929 |
| VMRS Code | 034004253 |
Part Interchanges
GROTE 47472 Cross Reference
We have 8 alternatives for the 47472 by GROTE:
Established in 1901, Grote® is a world-class manufacturer and supplier of light components and smart visibility systems for heavy duty vehicles. From LED beacons to trailer connectors, Grote products provide effective solutions and added value to its customers in the agricultural, construction, freight, and mining industries. The company has been a major supplier to commercial vehicle manufacturers, utilizing the latest quality planning techniques and manufacturing systems as well as rigorous environmental testing to maintain their competitive edge. Grote also works closely with OEM distributors and fleet managers in developing new ways to maximize the efficiency of their products according to the demands of the market.
