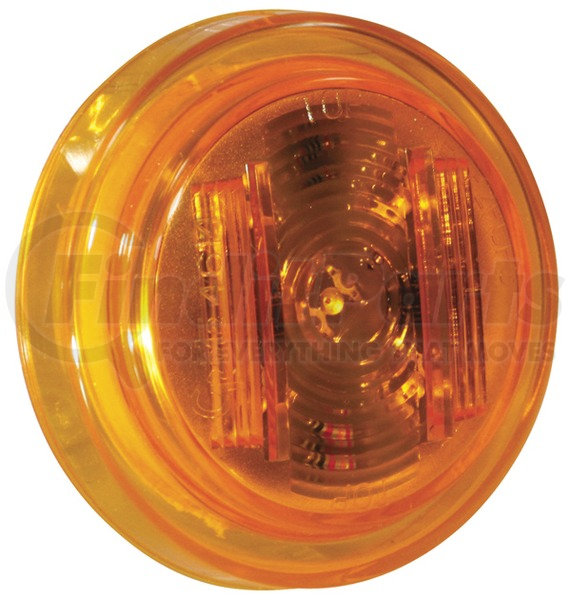

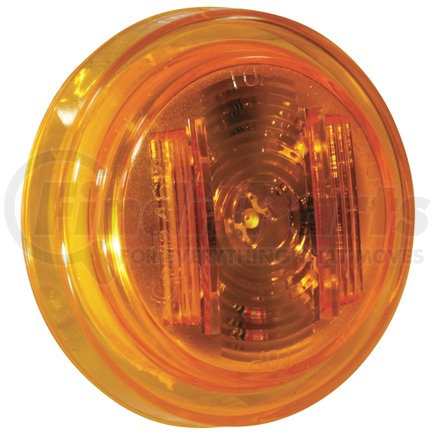

Grote 46143-3 - SuperNova® 2 1/2" LED Clearance / Marker Light - Yellow, Multi Pack
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GROTE part description
Technical specifications
| Material: | Polycarbonate Housing, Polycarbonate Lens |
| Color: | Yellow |
| Lens Color: | Yellow |
| Amperage: | .06A |
| Mounting Type: | Grommet, Bracket |
| Connection Type: | PL-10 |

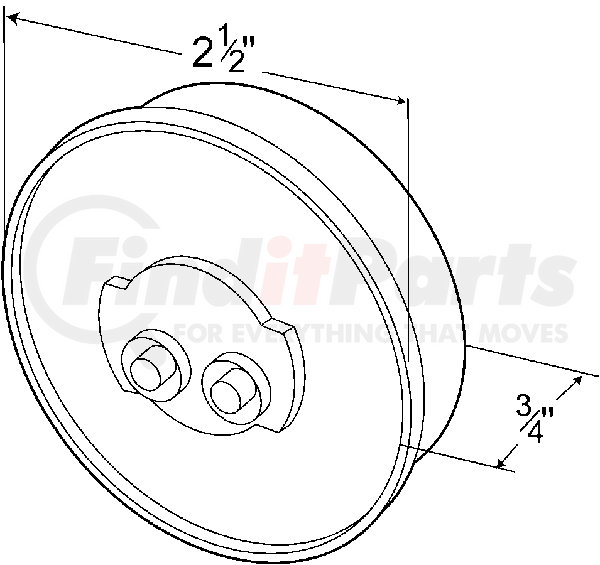

| Size: | 2½" |
| Height: | .75" |
| Regulations: | FMVSS 108 |
| Functions: | PC |
| Diameter: | 2.5" |
With encapsulant potting for total circuit board protection and hermetic lens-to-housing seal, Our SuperNova® 2 1/2" LED Clearance Marker Lights use the same UBS double-seal pigtails as incandescent versions for a quick Plug-and-Go® Retrofit. The tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure causing leak paths.
Features & Benefits
- Hermetic lens-to-housing seal
- Encapsulant potting for total circuit-board protection
- Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit
- Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
| Color/Finish | Yellow |
| Material | Polycarbonate |
| Voltage | 12V / .06A |
| Lighting Technology | LED |
Product Description
SUPERSEDED BY 46143
Features & Benefits
- Hermetic lens-to-housing seal
- Hermetic lens-to-housing seal
- Encapsulant potting for total circuit-board protection
- Encapsulant potting for total circuit-board protection
- Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit
- Uses the same UBS double-seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit
- Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
- Tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
With encapsulant potting for total circuit board protection and hermetic lens-to-housing seal, Our SuperNova® 2 1/2" LED Clearance Marker Lights use the same UBS double-seal pigtails as incandescent versions for a quick Plug-and-Go® Retrofit. The tin-plated, solid-brass terminals are sealed to housing, to resist corrosion and eliminate failure causing leak paths.
Product Attributes
| Amperage | .06A |
| Color | Yellow |
| Connection Type | PL-10 |
| Function | PC |
| Housing Color | Gray |
| LED | Y |
| Lens Color | Yellow |
| Material | Polycarbonate Lens,Polycarbonate Housing |
| Mounting Type | Grommet,Bracket |
| Regulations | FMVSS 108 |
| Shape | Round |
| Voltage | 12V |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8512200000 |
| Refurbished Part | N |
| Remanufactured Part | N |
| VMRS Code | 034004253 |
Part Interchanges
