AUTOLITE part description

Product Description

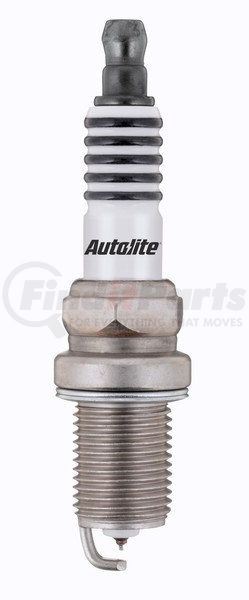

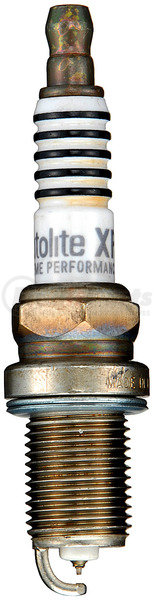

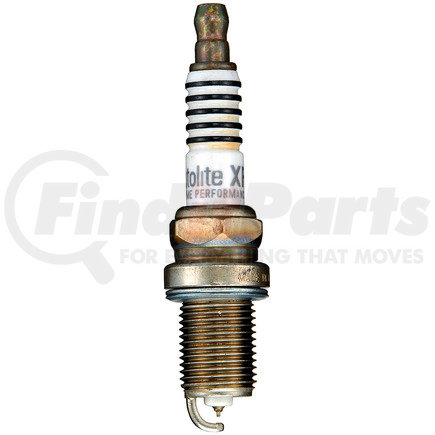

Autolite Iridium XP Spark Plug

Application Summary

Bentley Brooklands (1994-1995), Bentley Continental (1994-1995), Bentley Turbo R (1994-1995), Buick Skylark (1993-1994), Chevrolet Camaro (1987-1992), Chevrolet Corvette (1988-1991), Ford F-100 (1982), Ford Granada (1982), Ford Thunderbird (1982), Lincoln Continental (1982), Mercedes-Benz 300CE (1990-1993), Mercedes-Benz 300E (1993), Mercedes-Benz 300SE (1993), Mercedes-Benz 300SL (1990-1993), Mercedes-Benz 300TE (1993), Mercedes-Benz 400E (1992-1993), Mercedes-Benz 400SE (1992), Mercedes-Benz 400SEL (1993), Mercedes-Benz 500E (1992-1993), Mercedes-Benz 500SEC (1993), Mercedes-Benz 500SEL (1992-1993), Mercedes-Benz 500SL (1990-1993), Mercedes-Benz 600SEC (1993), Mercedes-Benz 600SEL (1992-1993), Mercedes-Benz 600SL (1993), Mercedes-Benz C220 (1994), Mercedes-Benz C280 (1994-1996), Mercedes-Benz E320 (1994-1996), Mercedes-Benz E420 (1994-1995), Mercedes-Benz E500 (1994), Mercedes-Benz S320 (1994-1996), Mercedes-Benz S420 (1994), Mercedes-Benz S420 (1996), Mercedes-Benz S500 (1994-1996), Mercedes-Benz SL320 (1994-1996), Mercedes-Benz SL500 (1994-1996), Mercedes-Benz SL600 (1994-1995), Mercury Cougar (1982), Oldsmobile Achieva (1994), Pontiac Grand Am (1994), Rolls-Royce Corniche IV (1994-1995), Rolls-Royce Silver Dawn (1995-1997), Rolls-Royce Silver Spirit (1994-1995), Rolls-Royce Silver Spur (1994-1997), Rolls-Royce Touring Limousine (1994), Saturn SC (1991-1992), Saturn SC1 (1993-2002), Saturn SC2 (1993-1999), Saturn SL (1991-2002), Saturn SL1 (1991-2002), Saturn SL2 (1991-1999), Saturn SW1 (1993-1999), Saturn SW2 (1993-1999)

Features & Benefits

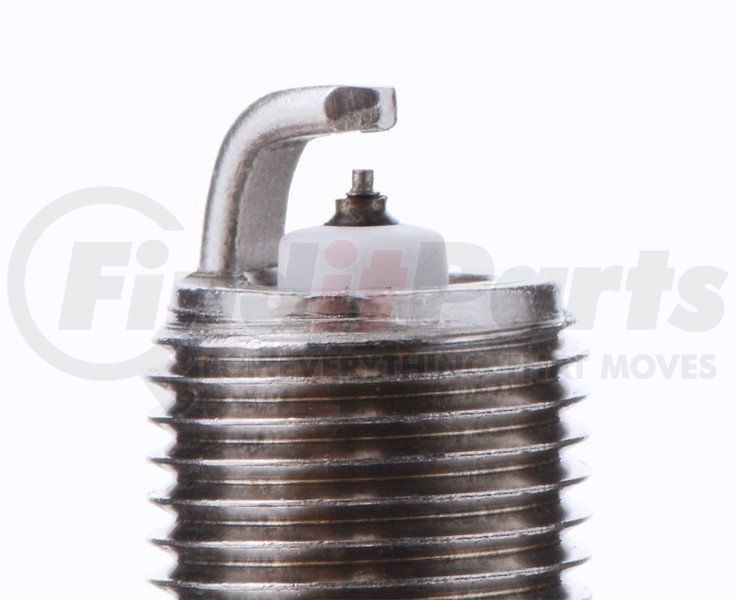

  • Iridium enhanced 0.6mm finewire design for optimal durability and performance
  • Patented, platinum sidewire technology
  • Platinum ground wire for maximum efficiency in all ignition types including DIS systems
  • V-trimmed ground electrode for improved ignitability
  • Heat range precisely set by Ionization Sensing Technology
  • Includes a lifetime limited warranty that guarantees optimum performance equal to OE designed plugs.

Spark, Plug, Spark Plug, Autolite

Product Attributes

Resistance 4000 82
Ground Electrode Tip Design Tapered
Ground Electrode Core Material Nickel
Electrical Terminal Type Stud
Center Electrode Core Material Copper
Center Electrode Tip Material Iridium
Pre-Gap Size 0.035 IN
Pre-Gap Size 0.9 MM
Ground Electrode Quantity 1
Hex Size 5/8 IN
Hex Size 16 MM
Seat Type Flat
Reach 0.75 IN
Reach 19.5 MM
Thread Diameter 14 MM
Insulator Material Ceramic
Resistor Type Yes
Ground Electrode Tip Material Platinum
9608 Fine Wire
9805 Mid Projection

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8511100000
Warranty Special Limited Lifetime
Warranty Special UOM TX
UPC 00009100267238
UNSPSC 26101732

Part Interchanges

Autolite® allows you to go anywhere—without delay—with its comprehensive spark plugs offerings. Although it was initially established as a buggy lamp manufacturer in 1911, it slowly gained recognition as an ignition expert when it developed and introduced the very first Autolite spark plug in 1935. Over the years, the company has reached greater heights, producing and supplying spark plugs and other ignition parts to some of the major automotive manufacturers, such as Chrysler, Studebaker, Willys, and Packard. Headquartered in Lake Forest, Illinois, Autolite is a proud member of the FRAM Group, North America's largest and most diversified group servicing the vehicle replacement parts market.
