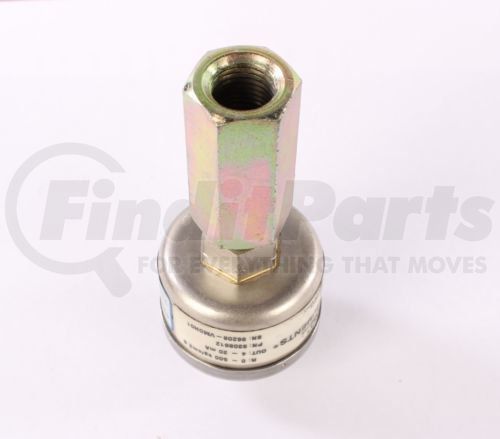

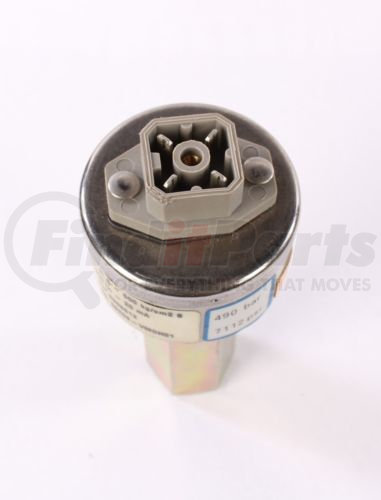

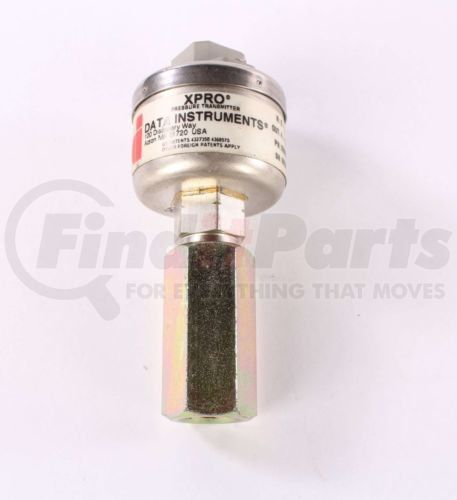

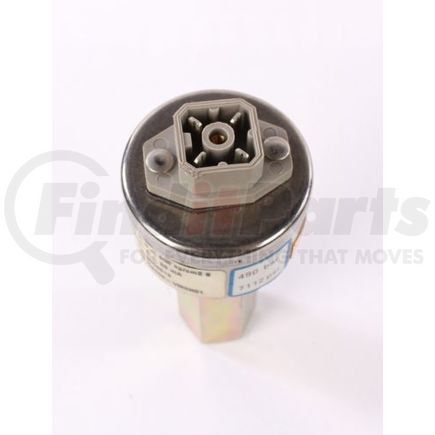

Data Instruments 9308612 - PRESSURE TRANSDUCER

• Low Cost Pressure Transmitter Honeywell Data Instruments Model XPRO
• Manufacturer: Data Instrument
• Manufacturer Part Number: 9308612

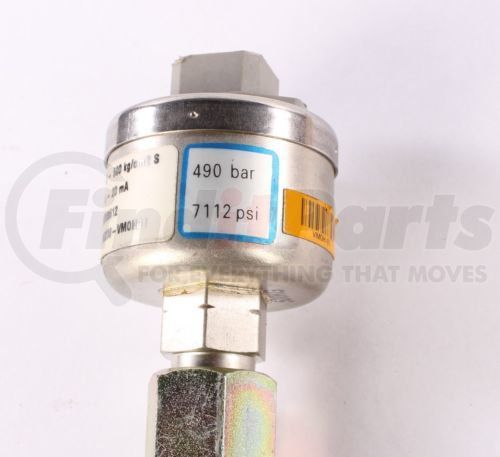

• Marked on Tag: R:0-500kg/cm2S, Out: 4-20 mA, 490bar, 7112 PSI
• Original Packaging: No

The XPRO pressure transmitter provides both the instrument engineer and OEM designer with a reliable and affordable measurement. The 4-20 mA output signal is particularly suited for long cable runs in electrically noisy environments. The XPRO's silicon strain gauges are mounted on a beam coupled to a 300 series stainless steel diaphragm for maximum isolation from thermal transients. The pressure cavity is a brazed assembly of 300 series stainless steel with no elastomer seals or adhesive bonds to corrode or deteriorate. The XPRO is recognized by Underwriters Laboratories as an intrinsically safe device for use in hazardous locations.
