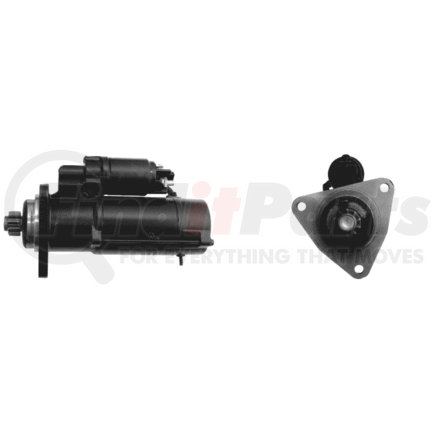

Letrika MS101 - Starter 12V, 10T, CW, PLGR, Letrika/MAHLE AZF46, 4.2kW, New
$43549
MSRP: $619.52
Save: $184.03
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
LETRIKA part description
Technical Data
| Product | Starter |
| Letrika P/N | IS1077 |
| Voltage | 12 V |
| Power | 4.2 kW |
| OEM P/N | 11.131.839 |
| MAHLE P/N | MS 101 |
| Description | AZF4691 |
| No. of pinion teeth | 10 |
| Module | 3.175 mm |
| Distance over two teeth | 15.42 mm |
| Outside diameter of pinion | 40.5 mm |
| Notes | Noseless version of starter |
| Off set drive end bracket | |
| Oil sealed | |
| With reduction gear |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1077 | 11.131.839 AZF4691 12V 4,2kW | MS 101 | Available |
| IS1077 | 11.131.213 AZF4616 12V 4,2kW | Superseded unit, see available P/N IS1077 | |
| IS1077 | 11.131.117 AZF4611 12V 4,2kW | Superseded unit, see available P/N IS1077 |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.915.352 | MSX 1030 | Switch | 4 |
| 16.283.635 | MSX 105 | Rear-end bracket | 15 |
| 16.907.091 | MSX 119 | Reduction gear | 8 |
| 16.902.035 | MSX 1205 | Gear with clutch | 18 |
| 16.908.336 | MSX 1225 | Brush holder | 13 |
| 16.283.464 | MSX 16 | Drive end bracket | 1 |
| 16.902.036 | MSX 164 | Pinion with clutch | 6 |
| 16.908.335 | MSX 192 | Lever | 7 |
| 16.907.092 | MSX 263 | Fixing set | 11 |
| 16.908.340 | MSX 305 | Bearing | 10 |
| 16.907.383 | MSX 481 | Bearing | 2 |
| 16.282.089 | MSX 497 | Stator | 12 |
| 16.908.339 | MSX 786 | Armature | 9 |
| 16.908.337 | MSX 79 | Set of brushes | 14 |
LETRIKA MS101 Cross Reference
We have 19 alternatives for the MS101 by LETRIKA:
