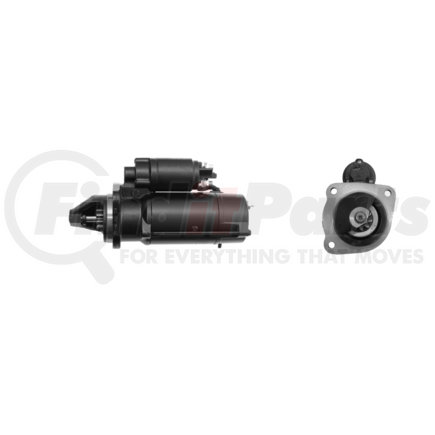

Letrika MS196 - Starter 24V, 10T, 4.5kW
$42299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
LETRIKA part description
Technical Data
| Product | Starter |
| Letrika P/N | IS1290 |
| Voltage | 24 V |
| Power | 4.5 kW |
| OEM P/N | 11.132.188 |
| MAHLE P/N | MS 196 |
| Description | AZF4326 |
| No. of pinion teeth | 10 |
| Module | 3.175 mm |
| Distance over two teeth | 15.42 mm |
| Outside diameter of pinion | 39.6 mm |
| Notes | Mass terminal 31 |
| With reduction gear |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1290 | 11.132.188 AZF4326 24V 4,5kW | MS 196 | Available |
| IS1290 | 11.131.897 AZF4246 24V 4,5kW | Superseded unit, see available P/N IS1290 |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.285.554 | MSX 1051 | Drive end bracket | 1 |
| 16.285.941 | MSX 1123 | Rear-end bracket | 15 |
| 16.908.993 | MSX 1247 | Armature | 9 |
| 16.908.995 | MSX 1249 | Set of brushes | 14 |
| 16.907.985 | MSX 1749 | Brush holder | 13 |
| 16.915.516 | MSX 1754 | Switch | 4 |
| 16.908.335 | MSX 192 | Lever | 7 |
| 16.280.958 | MSX 197 | Stator | 12 |
| 16.908.542 | MSX 236 | Fixing set | 11 |
| 16.908.340 | MSX 305 | Bearing | 10 |
| 16.902.126 | MSX 49 | Pinion with clutch | 6 |
| 16.904.832 | MSX 609 | Reduction gear | 8 |
| 15.120.243 | MSX 684 | Bearing | 2 |
LETRIKA MS196 Cross Reference
We have 3 alternatives for the MS196 by LETRIKA:
