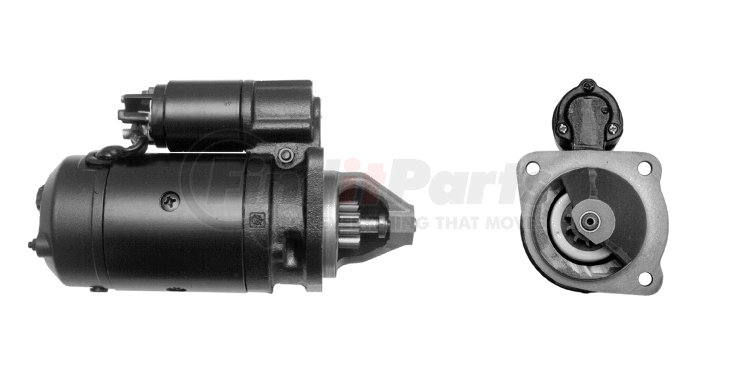

Letrika MS347 - Starter 12V, 10T, CW, DD, Letrika/MAHLE AZJ, 2.8kW, New
$37449
MSRP: $517.17
Save: $142.68
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
LETRIKA part description
Technical Data
| Product | Starter |
| Letrika P/N | IS0526 |
| Voltage | 12 V |
| Power | 2.8 kW |
| OEM P/N | 11.130.526 |
| MAHLE P/N | MS 347 |
| Description | AZJ3151 |
| No. of pinion teeth | 10 |
| Module | 3.175 mm |
| Distance over two teeth | 15.42 mm |
| Outside diameter of pinion | 39.6 mm |
| Notes | Mass terminal 31 |
| We recommend using the Reduction Gear version IS1377 |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS0526 | 11.130.526 AZJ3151 12V 2,8kW | MS 347 | Available |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.361.491 | MSX 161 | Armature | 9 |
| 16.905.973 | MSX 175 | Set of brushes | 14 |
| 16.905.972 | MSX 255 | Brush holder | 13 |
| 16.905.853 | MSX 370 | Lever | 7 |
| 16.906.170 | MSX 375 | Fixing set | 11 |
| 16.281.299 | MSX 379 | Central cover | 3 |
| 16.281.595 | MSX 55 | Drive end bracket | 1 |
| 15.120.161 | MSX 643 | Bearing | 2 |
| 15.120.155 | MSX 697 | Bearing | 10 |
| 16.908.100 | MSX 717 | Switch | 4 |
| 16.906.421 | MSX 72 | Rear-end bracket | 15 |
| 16.901.694 | MSX 734 | Pinion with clutch | 6 |
| 16.906.168 | MSX 802 | Stator | 12 |
LETRIKA MS347 Cross Reference
We have 72 alternatives for the MS347 by LETRIKA:
- AGCO C000900060090
- AHLMAN N (MECALAC) 5029042
- BOSCH 0986018151
- CLAAS 6005706629
- CNH/FIAT AGRI 73328002
- DELCO REMY DRS3289
- HELLA 8EA 730 209-001
- HELLA 8EA 730 219-001
- HELLA CS 693
- HELLA CS 703
- HITACHI S12-84
- JCB 714/29300R
- LANDINI 3551 773 M91
- LANDINI 3648 190 M91
- LESTER 17644
- LESTER 17649
- LESTER 17650
- LUCAS 27 518
- LUCAS 27 520
- LUCAS 27 570
- LUCAS 27 588
- LUCAS LRS00124
- LUCAS LRS00161
- LUCAS LRS00195
- LUCAS LRS00302
- LUCAS LRS00968
- LUCAS NSB 524
- LUCAS NSB 529
- MAGNETI MARELLI 542 932 84
- MAGNETI MARELLI 632 274 78
- MAGNETI MARELLI 632 274 86
- MAGNETI MARELLI 632 275 18
- MAGNETI MARELLI 632 275 20
- MAGNETI MARELLI 632 275 85
- MAGNETI MARELLI 632 275 88
- MAGNETI MARELLI 632 275 96
- MAGNETI MARELLI 632 963 57
- MAGNETI MARELLI 9432 262 94
- MAGNETI MARELLI 9432 263 29
- MAGNETI MARELLI 9432 263 48
- MAGNETI MARELLI 9432 263 57
- MAGNETI MARELLI 9432 263 59
- MAGNETI MARELLI 9432 263 66
- MAGNETI MARELLI 9432 263 69
- MAGNETI MARELLI 9432 275 02
- MAGNETI MARELLI 9432 275 18
- MAGNETI MARELLI 9432 275 20
- MAGNETI MARELLI 9432 275 24
- MAGNETI MARELLI 9432 275 70
- MAGNETI MARELLI 9432 275 72
- MAGNETI MARELLI 9432 520 75
- MAGNETI MARELLI 9432 520 76
- MAGNETI MARELLI MSN 180
- MAGNETI MARELLI MSN 191
- ITOU745011
- MASSEY-FERGUSON 2873 001 T
- MASSEY-FERGUSON 3581 576 M1
- PERKINS 1446 802 M91
- PERKINS 1447 732 MI
- PERKINS 1447 732 R1
- PERKINS 2873A001
- PERKINS 2873A030
- PERKINS 2873A102
- PERKINS 2873B056
- PERKINS 2873B071
- PERKINS 3581 576 MI
- PERKINS 3581 576 R1
- PERKINS 37701400
- PRESTOLITE 20500968
- SPARE X361050
- IS0526
- MS 347
