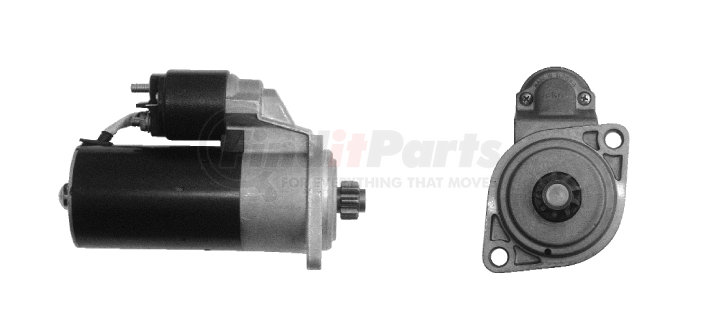

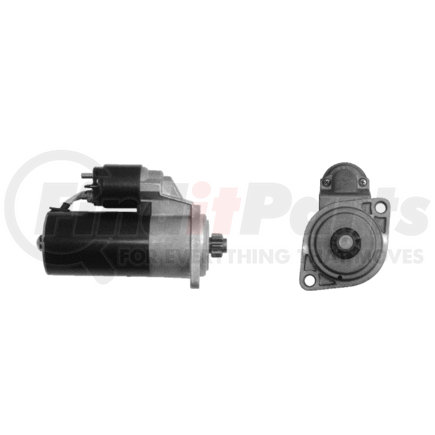

Letrika MS98 - Starter 12V, 9T, CW, PMGR, Letrika/MAHLE AZE26, 2kW, New
$30749
MSRP: $440.95
Save: $133.46
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
LETRIKA part description
Technical Data
| Product | Starter |
| Letrika P/N | IS1115 |
| Voltage | 12 V |
| Power | 2.0 kW |
| OEM P/N | 11.131.255 |
| MAHLE P/N | MS 98 |
| Description | AZE2645 |
| No. of pinion teeth | 9 |
| Module | 3 mm |
| Distance over two teeth | 14.36 mm |
| Outside diameter of pinion | 34.8 mm |
| Notes | Noseless version of starter |
| With reduction gear |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1115 | 11.131.255 AZE2645 12V 2,0kW | MS 98 | Available |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.908.354 | MSX 1280 | Reduction gear | 8 |
| 16.908.349 | MSX 1330 | Set of brushes | 14 |
| 16.902.506 | MSX 1775 | Gear with clutch | 18 |
| 16.908.353 | MSX 193 | Fixing set | 11 |
| 16.908.351 | MSX 216 | Bearing | 10 |
| 16.908.348 | MSX 306 | Brush holder | 13 |
| 16.908.518 | MSX 312 | Rear-end bracket | 15 |
| 16.908.347 | MSX 36 | Lever | 7 |
| 16.908.624 | MSX 455 | Switch | 4 |
| 16.907.379 | MSX 465 | Pinion with clutch | 6 |
| 16.282.164 | MSX 61 | Stator | 12 |
| 16.361.412 | MSX 772 | Armature | 9 |
| 16.283.725 | MSX 842 | Drive end bracket | 1 |
LETRIKA MS98 Cross Reference
We have 11 alternatives for the MS98 by LETRIKA:
