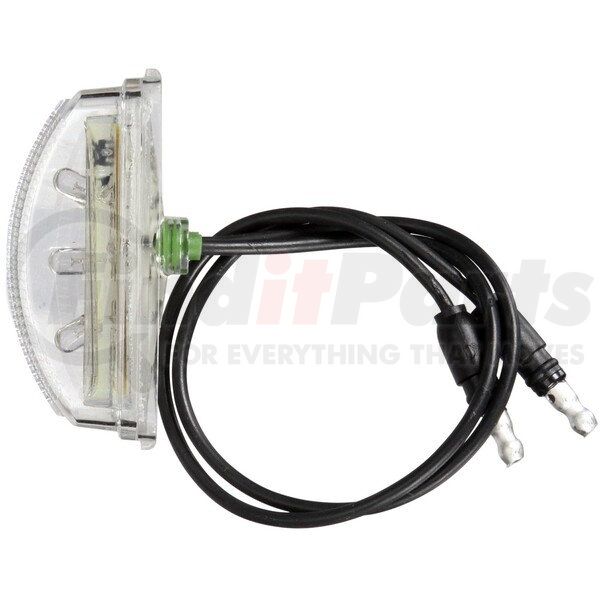

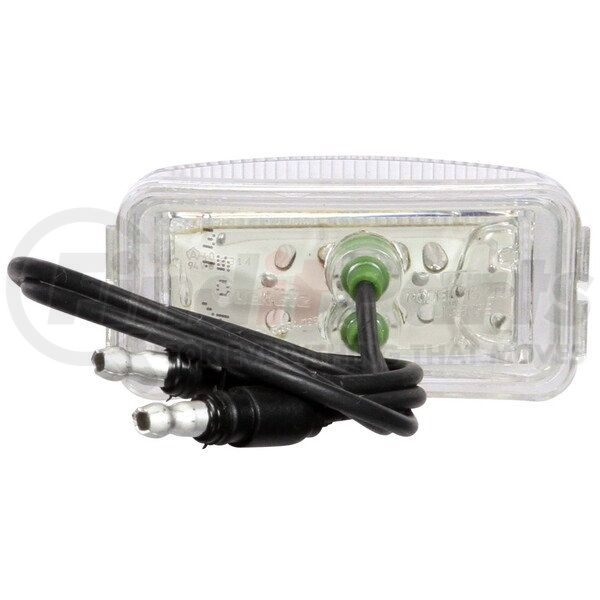

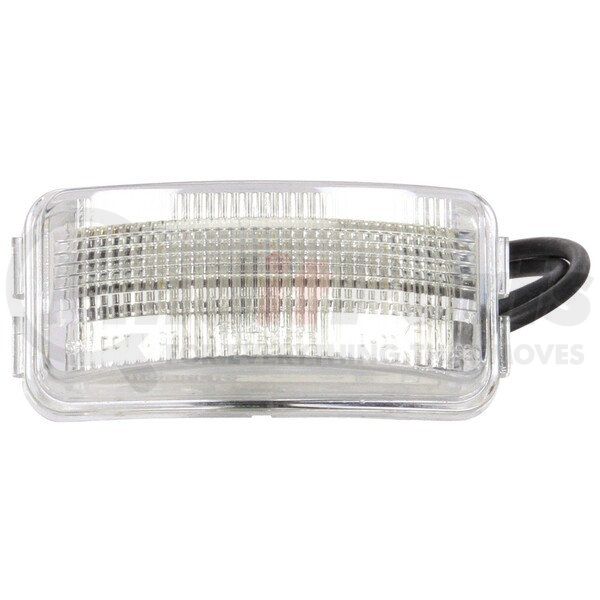

Name: Truck-Lite 15227 15 Series, LED, 3 Diode, License Light, Rectangular, Bracket Mount, Hardwired, .180 Bullet, 12V, Kit
SKU: 15227
Price: 25.49 USD
Availability: InStock

TRUCK-LITE part description

Features and Benefits

Meets SAE J587 and European ECE Regulations 4
Hard-wired design w/ adapter plug for quick changeover without rewiring
Functions as Utility Lamp or License Lamp when properly mounted using License plate brackets #00820, #15729, #15730, #15732 or #15736

Technical Specifications

Compliance Family	FMVSS 108\|CMVSS 108\|DOT\|SAE\|ECE
Product Type	License Light
Packaging Type	Standard
KIT (Y/N)	Yes
Series	15 Series
Standards Met	R4\|J587\|L
VMRS	034-002-042
Warranty	Lifetime

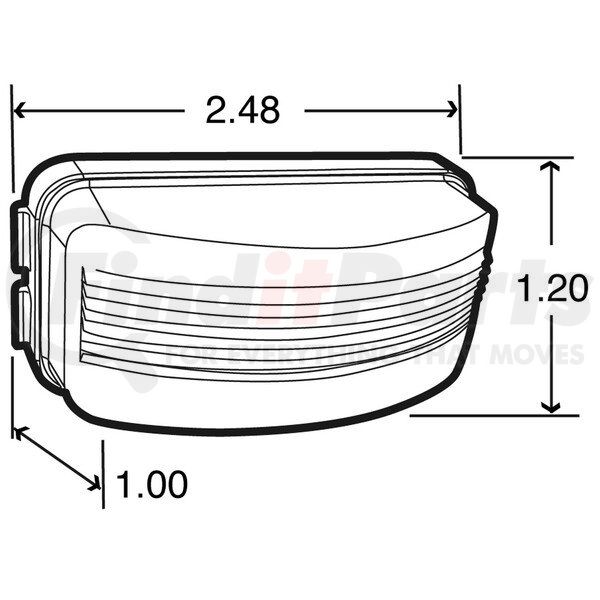

Total Height_INH	1.2
Total Height_MMT	30.48
Total Depth_INH	1
Total Depth_MMT	25.4
Total Width_INH	2.48
Total Width_MMT	62.99
Plug Side One	Hardwired
Number of Wires	2
Lens Height_INH	1.2
Lens Shape	Rectangular
Lens Material	Polycarbonate
Lens Color	Clear
Sealed/Bulb Replaceable	Sealed
Voltage_VLT	12
Number of Diodes/Bulbs	3
Lens Width_INH	2.48
Lighting Technology	LED
Diamond Shell (Y/N)	No
Plug Side Two	.180 Bullet
Common Size	1"x2"
Mount Type	Bracket Mount Kit
Lamp Connection	Hardwired
Wire Gauge	18
Current_AMP	0.03
Housing Material	Polycarbonate

Truck-Lite 15 Series LED License Light

Truck-Lite 15 Series LED license plate lights provide efficient, all-weather visibility of the license plate. It is versatile enough for use in a wide variety of vehicle applications including most heavy duty trucks, buses, and trailers.

Features & Benefits

Snap-fit bracket mount for easy installation on flat surfaces
Energy-efficient LEDs draw less power and last longer than incandescent bulbs
Lens and body are made of molded polycarbonate with high impact and UV resistance
Uses hardwired connectors for hassle-free installation and retrofit

Lighting Technology	LED
Voltage	12
Size	1"x2"
Lens Material	Polycarbonate
Lens Color	Clear
Number Of Diodes/Bulbs	3
Connection/Plug Type	Hardwired

Product Description

15 Series, LED, 3 Diode, Rectangular, License Light, Bracket, 12V

Features & Benefits

Snap-fit bracket mount for easy installation on flat surfaces
Energy-efficient LEDs draw less power and last longer than incandescent bulbs
Lens and body are made of molded polycarbonate with high impact and UV resistance
Uses hardwired connectors for hassle-free installation and retrofit

Truck-Lite 15 Series LED License Light

Product Attributes

Voltage	12
Bulb Technology	LED
Amperage Rating	0.03
Common Size	1x2 IN
Diamond Shell	No
Housing Material	Polycarbonate
Kit	No
Lamp Connection	Hardwired
Lens Color	Clear
Lens Height	1.2 IN
Lens Material	Polycarbonate
Lens Shape	Rectangular
Lens Width	2.48 IN
Mount Type	Bracket Mount Kit
Number Of Diodes/bulbs	3
Plug Side One	Hardwired
Plug Side Two	.180 Bullet
Sealed/bulb Replaceable	Sealed
Series	15 Series
Standards Met	R4, J587, L
Wire Quantity	2

Part Interchanges

TRUCK-LITE 15227 Cross Reference

We have 4 alternatives for the 15227 by TRUCK-LITE:
