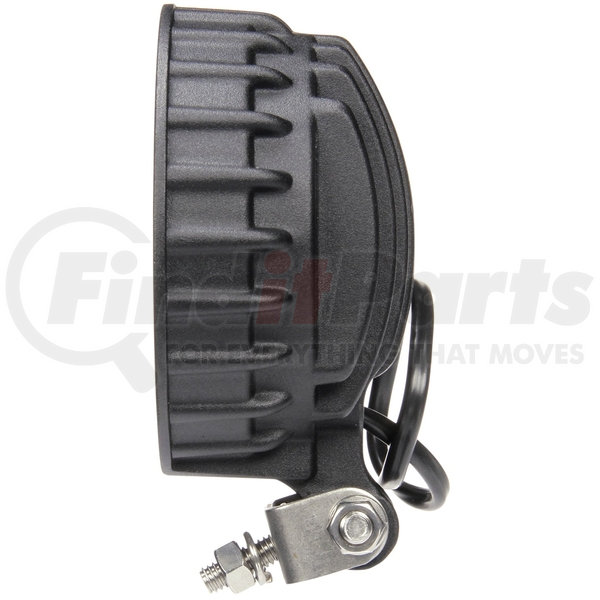

Truck-Lite 81360-P - 81 Series 4 in. Round LED Work Light, Black, 6 Diode, 500 Lumen, Stripped End, 12V, Pallet
- Part Number
- 81360-P
- Manufacturer
- TRUCK-LITE
- Description
-
81 Series 4 in. Round LED Work Light, Black, 6 Diode, 500 Lumen, Stripped End, 12V, Pallet
details
$17949
MSRP: $263.97
Save: $84.48
In stock
limited availability at this price!
. Learn more
TRUCK-LITE part description
Features and Benefits
- Manufactured under Design Patent# US D572,856 S
- Rugged all purpose work lamp
- General purpose "Work" pattern
- More even lighting than comparable incandescent work lamps
- LED light is whiter and brighter than comparable incandescent lamps
- LEDs have no filament, therefore are extremely resistant to shock and vibration
- 81360/81374/81365-Operates at full brightness between 8.5v and 16v
- 81240/81270/81245-Operates at full brightness between 21v and 34v
- 81360/81374/81365-Overvoltage protection @ 17v-18v
- 81240/81270/81245-Overvoltage protection @ 34v-36v
- LEDs have less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
- Available in durable black, white or chrome powder coated housings
- Includes stainless steel mounting hardware
- Mounts on one 5/16"-18 stud
- 5 year limited warranty
Technical Specifications
| Product Type | Work Light |
| Packaging Type | Pallet |
| Keyword | Auxiliary |
| KIT (Y/N) | No |
| Series | 81 Series |
| VMRS | 034-006-031 |
| Warranty | 5-Year |
| Total Height_INH | 4.18 |
| Total Height_MMT | 106.17 |
| Total Depth_INH | 2.47 |
| Total Depth_MMT | 62.74 |
| Total Width_INH | 4.18 |
| Total Width_MMT | 106.17 |
| Lumens_LM | 388 |
| Plug Side One | Hardwired |
| Number of Wires | 2 |
| Lens Shape | Round |
| Lens Material | Polycarbonate |
| Lens Color | Clear |
| Sealed/Bulb Replaceable | Sealed |
| Voltage_VLT | 12 |
| Number of Diodes/Bulbs | 6 |
| Mounting Connector Diameter_INH | .313 |
| Light Intensity_CP | 3120 |
| Lighting Technology | LED |
| Housing Color | Black |
| Plug Side Two | Stripped End |
| Mount Material | Stainless Steel |
| Beam Pattern | Work |
| Common Size | 4" |
| Mount Type | Stud |
| Lamp Connection | Hardwired |
| Wire Gauge | 18 |
| Current_AMP | 1.2 |
| Housing Material | Die-Cast Aluminum |
Product Description
81 Series 4 in. Round LED Work Light, Black, 6 Diode, 500 Lumen, Stripped End
Features & Benefits
- Manufactured under design patent# US D572,856 S
- Rugged all purpose work lamp
- General purpose "Work" pattern
- LED light is whiter and brighter than comparable incandescent lamps
- LEDs have no filament, therefore are extremely resistant to shock and vibration
- 81360/81374/81365-Operates at full brightness between 85v and 16v
- 81240/81270/81245-Operates at full brightness between 21v and 34v
- 81360/81374/81365-Overvoltage protection @ 17v-18v
- 81240/81270/81245-Overvoltage protection @ 34v-36v
- LEDs have less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
- Available in durable black, white or chrome powder coated housings
- Includes stainless steel mounting hardware
- Mounts on one 5/16"-18 stud
- 5 year limited warranty
Product Attributes
| Bulb Technology | LED |
| Common Size | 4 IN |
| Current Amp | 1.2 |
| High Output | No |
| Housing Color | Black |
| Housing Material | Die-Cast Aluminum |
| Kit | No |
| Lamp Connection | Hardwired |
| Lens Color | Clear |
| Lens Material | Polycarbonate |
| Lens Shape | Round |
| Light Intensity Cp | 3120 |
| Lumens | 388 |
| Mount Material | Stainless Steel |
| Mount Type | Stud |
| Number Of Diodes/bulbs | 6 |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Sealed/bulb Replaceable | Sealed |
| Series | 81 Series |
| Voltage | 12 |
| Wire Quantity | 2 |
Truck-Lite® is a world-renowned manufacturer of mirrors, heavy-duty forward and signal lighting, trailer harnesses, and other safety and visibility-enhancing products. Its main headquarters is located in Falconer, NY, and it maintains ten more facilities across North America and Europe. The company may have started small as a sealed lighting manufacturer in 1955. But it has grown tremendously over the years—in fact, it introduced a series of firsts including the first sealed lighting products, first LED S/T/T lamps, and first forward lighting. Being first in product development has sure paved the way for Truck-Lite to become a successful business today.
