Grote 63G11 - Trilliant® Oval LED Work Light - Wide Flood, Deutsch, 12-24V
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GROTE part description
Technical specifications
| Material: | Polycarbonate, Aluminum , Stainless Steel Hardware |
| Finish: | Black Powder Coated |
| Color: | White |
| Lens Color: | Clear |
| Voltage: | 12/24V |
| Amperage: | 1.0A, 2A |
| Lumens: | 1200 |
| Light Pattern: | Wide Flood |
| Mounting Type: | Pendent |
| Connection Type: | Deutsch |
| Ingress Protection: | IP69K |
| Height: | 130 mm |
| Length: | 68.8 mm |
| # of Pins (Flashers & Cords): | Deutsch, Wide Flood |

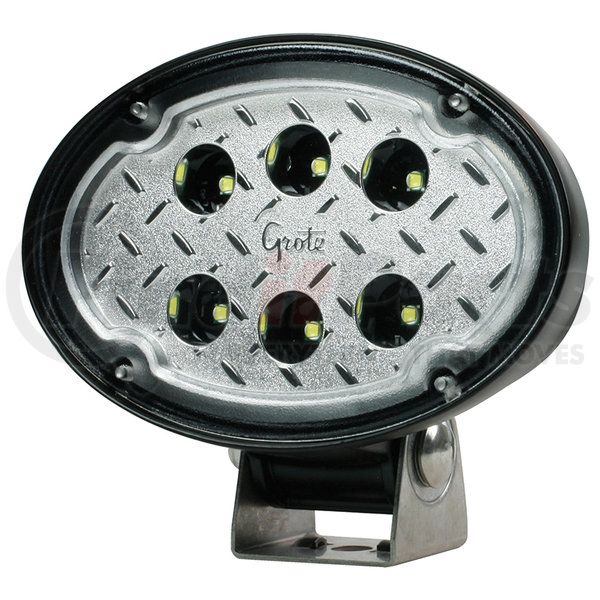

GROTE Trilliant® Oval LED Work Light
The choice of the professional vehicle community, Grote Trilliant® oval LED work light will work around the clock until the job is done. Each unit is built to deliver rugged and reliable performance in any weather.
Features & Benefits
- Innovative thermal management and advanced circuit design ensures consistent light output and long product life
- Premium-level EMC requirements prevent interference with radio signals
- Sophisticated reflector optics and LED focus more light while keeping eye strain to a minimum
- Aluminum powder-coated housing withstands heavy vibration, corrosion, dust, and moisture
- Multiple connections such as DT-2 Pin and Amp SuperSeal ensure compatibility with various vehicle applications
| Color/Finish | Black |
| Material | Polycarbonate/Aluminum/Stainless Steel Hardware |
| Voltage | 12V-2.0A / 24V-1.0A |
| Lighting Technology | LED |
Product Description
LED WORK LAMP ASM
Features & Benefits
- Innovative thermal management and advanced circuit design ensures consistent light output and long product life
- Innovative thermal management and advanced circuit design ensures consistent light output and long product life
- Premium-level EMC requirements prevent interference with radio signals
- Premium-level EMC requirements prevent interference with radio signals
- Sophisticated reflector optics and LED focus more light while keeping eye strain to a minimum
- Sophisticated reflector optics and LED focus more light while keeping eye strain to a minimum
- Aluminum powder-coated housing withstands heavy vibration, corrosion, dust, and moisture
- Aluminum powder-coated housing withstands heavy vibration, corrosion, dust, and moisture
- Multiple connections such as DT-2 Pin and Amp SuperSeal ensure compatibility with various vehicle applications
- Multiple connections such as DT-2 Pin and Amp SuperSeal ensure compatibility with various vehicle applications
GROTE Trilliant® Oval LED Work Light
The choice of the professional vehicle community, Grote Trilliant® oval LED work light will work around the clock until the job is done. Each unit is built to deliver rugged and reliable performance in any weather.
Product Attributes
| Amperage | 1.0A-2.0A |
| Color | White |
| Color Temp | 6500K IP69K |
| Connection Type | Deutsch |
| Finish | Black Powder Coated |
| Function | R10 |
| Housing Color | Black |
| LED | Y |
| Lens Color | Clear |
| Light Pattern | Wide Flood |
| Lumens | 1200(Effective) |
| Material | Polycarbonate Lens, Die-Cast Aluminium Housing |
| Mounting Type | Pendant |
| Regulations | ECE |
| Shape | Oval |
| Voltage | 12-24V |
Additional Information
| Country of Origin (Primary) | DE |
| Harmonized Tariff Code (Schedule B) | 8512200000 |
| Refurbished Part | N |
| Remanufactured Part | N |
| UPC | 00089373152011 |
| VMRS Code | 034006031 |
Established in 1901, Grote® is a world-class manufacturer and supplier of light components and smart visibility systems for heavy duty vehicles. From LED beacons to trailer connectors, Grote products provide effective solutions and added value to its customers in the agricultural, construction, freight, and mining industries. The company has been a major supplier to commercial vehicle manufacturers, utilizing the latest quality planning techniques and manufacturing systems as well as rigorous environmental testing to maintain their competitive edge. Grote also works closely with OEM distributors and fleet managers in developing new ways to maximize the efficiency of their products according to the demands of the market.
