Haldex AQ960208 - Kitabs Plcsff
$56399
MSRP: $1,279.42
Save: $715.43
In stock
limited availability at this price!
. Learn more
HALDEX part description
| Voltage: | 12 |
| Valve Type: | Full-Function ABS |
| Related Parts: | A027533909, A902700, A993107, AL10271914, AL430624, AL919338, AL919347, AQ15463, L30041 |
| Port 5 Diameter: | .375 in. (1 Supply Port with Filter) |
| Port 4 Diameter: | .375 in. (4 Spring Brake Ports) |
| Port 3 Diameter: | .5/34 in. Nipple (Reservoir Port) |
| Port 2 Diameter: | .375 in. (4 Delivery Ports) |
| Port 1 Diameter: | .375 in. (1 Control Port with Filter) |
| Notes:: | 4-Port FFABS Valve - Spring Brake Priority |
| Kit Contents: | (1) 20 x 12M Power Cord, (2) 2.5M Sensors (90°), and (1) Clips |
| ECU Design: | PLC Select |
| ECU / Valve Number: | N9001JB |
| ECU / Valve Number: | N4306JD |
| Freight Class: | 70 |
| VMRS Code: | 013011076 |
| UPC (GTIN): | 767653269405 |
| Harmonized Tariff Code: | 8716905060 |

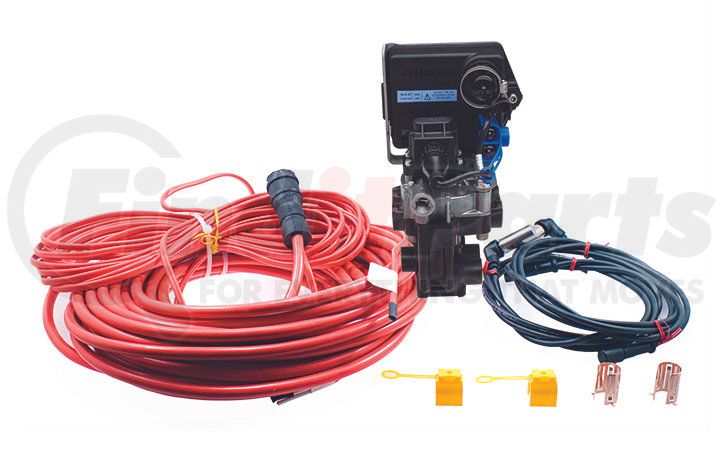

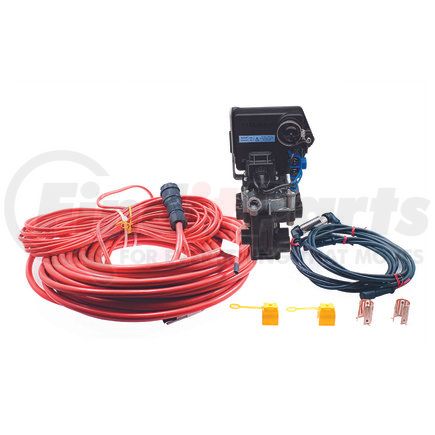

Haldex FFABS Installation Kit
Maintenance and servicing of your fully functional ABS has never been easier with the Haldex FFABS installation kit. Manufactured by a brand with a solid reputation in manufacturing air brake system components, this kit already includes all the hardware you need to restore your air brake system’s like-new performance.
Features & Benefits
- Has new trailer placement and PLC Select ECU design
- An FFABS valve type and reservoir mount
- Designed with 3/8"-18 control port and 3/8"-18 emergency supply port
- Built in compliance with the March 2001 PLC4 Trucks industry
- Comes with detailed instructions for maintenance and installation
- Specifically designed for use with ABS ready axles and builders power cord
Product Description
2S/1M Kit
Application Summary
Full kits do not include wheel end exciters. AL301220 junction cable needed for PLC 6S/4M multiple systems. Most ABS maintenance involves Wheel-end Sensors. Haldex recommends that Wheel-end Sensors be replaced when replacing or upgrading the ABS system.,Multi Complies with the March 2001 PLC4 Trucks industry. Kit includes detailed instructions for installation and maintenance.
Features & Benefits
- Has new trailer placement and PLC Select ECU design
- An FFABS valve type and reservoir mount
- Designed with 3/8"-18 control port and 3/8"-18 emergency supply port
- Built in compliance with the March 2001 PLC4 Trucks industry
- Comes with detailed instructions for maintenance and installation
- Specifically designed for use with ABS ready axles and builders power cord
Haldex FFABS Installation Kit
Maintenance and servicing of your fully functional ABS has never been easier with the Haldex FFABS installation kit. Manufactured by a brand with a solid reputation in manufacturing air brake system components, this kit already includes all the hardware you need to restore your air brake system’s like-new performance.
Product Attributes
| Control Port Diameter | 3/8 in. |
| Delivery Port Diameter | 4 @ 3/8 in. |
| ECU / Valve Number | N9001JB, N4306JD |
| ECU Design | PLC Select |
| Freight Class | 70 |
| Kit Content | (1) 20 x 12M Power Cord, (2) 2.5M Sensors (90°), and (1) Clips |
| Notes | 4-Port FFABS Valve - Spring Brake Priority |
| Reservoir Port Diameter | 1 @ 1/2 in., 1 @ 3/4 in. (Nipple) |
| Spring Brake Port Diameter | 4 @ 3/8 in. |
| Supply Port Diameter | 3/8 in. |
| Valve Type | Full-Function ABS |
| Voltage | 12V |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8716905060 |
| Harmonized Tariff Code (HTS) | 8716905060 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 36 MO, 200,000 MI=ABS - Antilock Braking Systems Including Haldex TRS (Valves, ECUs and Looms Only). 12 MO, 100,000 MI= All Other ABS - Antilock Braking Systems Components. See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653269405 |
| VMRS Code | 013011076 |
Part Interchanges
HALDEX AQ960208 Cross Reference
We have 2 alternatives for the AQ960208 by HALDEX:
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
