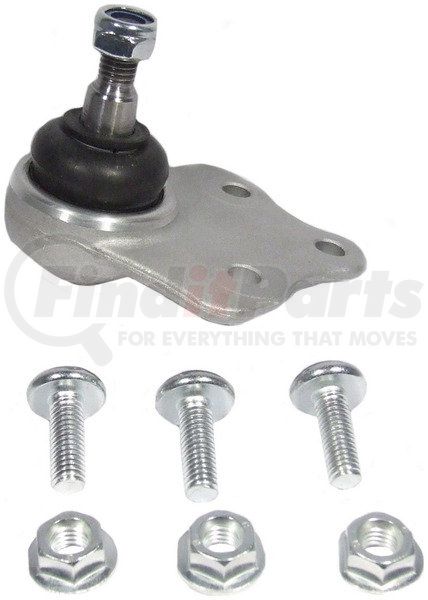

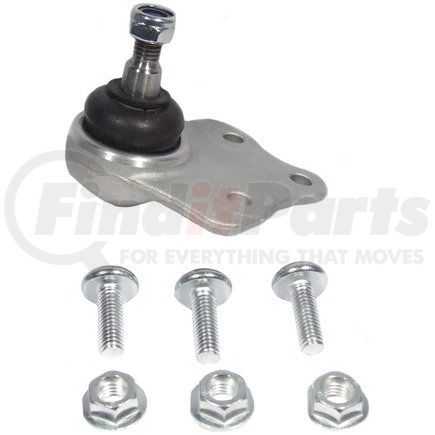

Delphi TC1995 - Suspension Ball Joint Front Upper Delphi TC1995
$2299
In stock
limited availability at this price!
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Material | Steel |
| Maximum Outside Diameter | 1.969 IN |
| Maximum Outside Diameter | 50.0 MM |
| Length | 100 MM |
| Color | Black |
| Stud Thread Diameter | 0.394 IN |
| Stud Thread Diameter | 10.0 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 85.0 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| 3068 | 1.181 IN |
| Mounting Bolt Length | 30.0 MM |
| Washers Included | No |
| Height | 34.331 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 2.008 IN |
| Bushing Material | Natural Rubber (NR) |
| Stud Type | Threaded |
| Mounting Type | Bolt On |
| Distance Between Mounting Holes | 50.2 MM |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Mounting Bolt Shank Diameter | 8.0 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.0 MM |
| 9207 | 0.866 IN |
| Mounting Bolt Thread Length | 22.0 MM |
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604254974 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
- Beck/Arnley 101-6897
- Beck/Arnley 102-6299
- MOOG Chassis Products K500222
- Mevotech MS10578
- Mercedes-Benz 000 330 10 07
- Mercedes-Benz 211 330 99 07
- Mercedes-Benz 3301007
- Mercedes-Benz A000 330 1007
- Mercedes-Benz A211 330 9907
- MAS Industries BJ28006
- TRW JBJ783
- Import Direct BJ07074
- Mevotech CMS101390
- Mevotech CMS101391
