ConMet 10083394 - ASSY PRESET HUB/ROTR AFTMKT TP HP10 ABS
$86949
MSRP: $1,063.21
Save: $193.72
In stock
limited availability at this price!
. Learn more
CONMET part description
| Hub Assembly Data | |
| Hub Assembly | 10083394 |
| Status | Active |
| Assembly Type | PreSet Hub & Rotor Assembly (Aftermarket) |
| Axle Location | Trailer |
| Axle Name | TP |
| Axle-Specific Specification | Aluminum - Disc |
| Mounting | Hub Piloted - 10 Studs |
| ABS | Yes |
| ABS Characteristic | ABS Ring Attached To Brake Rotor |
| Wheel Stud Bolt Circle Diameter | 285.75 mm |
| Wheel Stud | 102291 |
| Wheel Stud Standout | 3.44" |
| Detailed On | 10083386 |
| Hub Rating | 12,500 LBS 5,670 kg |
| Hub Cap Bolt Circle Diameter | 6.750" |
| Brake Drum Type | Disc Rotor |
| Bearing Set | _-stand Premium |
| Fill Hole | 9/16Ó-18 UNF Ñ #6 SAE J1926 |
| Fill Plug | Yes |
| ABS Offset | 5.31" |
| Hub Offset | 1.79" |
| Weight | 130 LBS 59 kg |
| Machining | 10045467 |
| Machined Flange Thickness | 1.53" |
| Casting | 10016225 |
| Casting Material | A356.0-T61 Aluminum |
| Seal Vendor | ConMet |
| Bill of Materials Ñ 10083394 Ñ PreSet Hub & Rotor Assembly (Aftermarket | |||||
| Item | Description | Material | Qty | Unit | Type |
|---|---|---|---|---|---|
| 10082385 | INSTRUCTIONS AMKT INSTALLATION | DOCUMENTATION | 1 | EA | Miscellaneous Shipping Component |
| 10081847 | AMKT WARRANTY KIT REGISTRATION | WARRANTY DOCUMENTATION | 1 | EA | Miscellaneous Shipping Component |
| 10050190 | RTR BX, 20 X 20 X 16, CMI | AFTERMARKET PACKAGING | 1 | EA | Miscellaneous Shipping Component |
| 10014425 | SHIPPING BUNGEE-DISC | PLASTIC DISC & NYLON BUNGEE | 1 | EA | Shipping Bungee-Disc for PreSet/LMS |
| 10009971 | NUT, FLANGED HEX HEAD | 5/8-18 UNF | 10 | EA | Nut on Brake Rotor Studs |
| 10041958 | SCREW #8-32 UNC, PANHEAD TORX | STAINLESS STEEL | 10 | EA | Screw Panhead Torx, ABS Attachment |
| 10016195 | DISC BRAKE ROTOR | CAST CMI ROTOR 10016194 | 1 | EA | Brake Rotor - Machined |
| 10016194 | ROTOR, DISC - AS CAST | SEE DRAWING 10016194 | 1 | EA | Brake Rotor - As Cast |
| 10012056 | INSULATOR | STAINLESS STEEL | 1 | EA | Thermal Gasket Between Hub & Rotor |
| 10003413 | RING, ABS | MILD STEEL | 1 | EA | ABS Tone Ring |
| 10083471 | PRESET HUB ASSEMBLY | SEE DRAWING 10083471 | 1 | EA | Hub Assembly |
| 107483 | SHIPPING PLUG EXTRUSION | PLASTIC | 1 | EA | Shipping Plug Extrusion |
| 103623 | PINE-TREE CLIP | PLASTIC | 2 | EA | Pine Tree Clip |
| 10041787 | SHIPPING CAP | PLASTIC | 1 | EA | Shipping Cap |
| 10080132 | SEAL, PRESET | CONMET PREMIUM | 1 | EA | Seal |
| 10034343 | BEARING SPACER | STEEL | 1 | EA | Bearing Spacer |
| 10041942 | CONE, BEARING | 1/2-STAND; STEEL (PREMIUM) | 2 | EA | Bearing Cone |
| 105272 | #6 OIL PORT PLUG | MILD STEEL | 1 | EA | Port Plug |
| 10023850 | STUD, DOUBLE-ENDED | 5/8"-11UNC / 5/8"-18UNF THDLOCK | 10 | EA | Double-Ended Stud |
| 102291 | STUD, WHEEL - PROP CL 10.9 | M22 X 1.5MM X 4.97 LG | 10 | EA | Wheel Stud |
| 10041941 | CUP, BEARING | 1/2-STAND; STEEL (PREMIUM) | 2 | EA | Bearing Cup |
| 10045467 | HUB, MACHINED | 10016225 HUB, CAST ALUM | 1 | EA | Hub Machining |
| 10016225 | HUB, CASTING | A356-T6 ALUMINUM | 1 | EA | Hub Casting |
Product Description

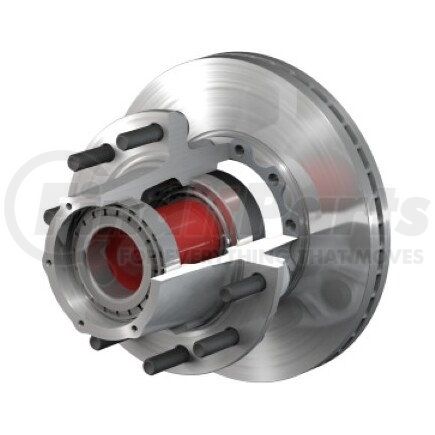

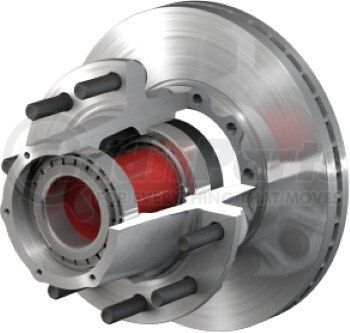

Aluminum Preset Hub/Rotor TP Trailer
Product Attributes
| Axle | R |
| Axle Position | Trailer |
| Bearing Number Inboard | 432 |
| Bearing Number Inboard - 246 | 432 |
| Bearing Number Outboard | 432 |
| Bearing Number Outboard - 245 | 432 |
| Brake Type | Disc |
| Flange Offset | 1.79 IN |
| Hub Mounting System | HP10 |
| Hub Rating | 12500 PG |
| Lead Time | 5 days |
| Material | Aluminum |
| Weight | 130 PG |
| Wheel Stud Bolt Circle Diameter | 11.25 IN |
| Wheel Stud Standout | 3.44 IN |
| Wheel Stud Thread | M22 X 1.5 mm MM |
Additional Information
| Country of Origin (Primary) | US |
| 5 | |
| UPC | 00810004770966 |
ConMet® is the market leader in wheel hubs, aluminum castings, and plastic components for commercial vehicles. It traces back its roots to 1964 when it started as a part of Portland Freightliner, a subsidiary of Consolidated Freightways. More than 30 years later, it began its operation under Amsted Industries, a global manufacturer of components serving the vehicular, railroad, construction, and industrial markets. Headquartered in Vancouver, Washington, ConMet takes pride in its patented innovations, including PreSet®, PreSet Plus®, and TruTurn® product lines. It uses cutting-edge design technologies, such as Solidification Modeling and Finite Element Analysis, and it works hand-in-hand with OE manufacturers to provide highly engineered solutions that best meet the customers' needs.
