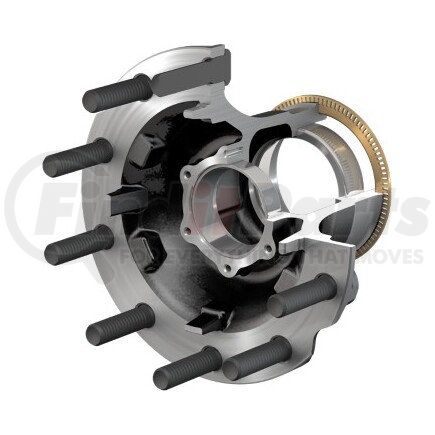

ConMet 10083784 - ASSY HUB AFTMKT FF HP10 ABS
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CONMET part description
| Hub Assembly Data | |
| Hub Assembly | 10083784 |
| Status | Active |
| Assembly Type | Basic Hub Assembly (Aftermarket) |
| Axle Location | Front |
| Axle Name | FF |
| Axle-Specific Specification | 5.44" Iron |
| Mounting | Hub Piloted - 10 Studs |
| ABS | Yes |
| ABS Characteristic | Has Stamped ABS Ring |
| Wheel Stud Bolt Circle Diameter | 285.75 mm |
| Wheel Stud | 10001405 |
| Wheel Stud Standout | 2.60" |
| Detailed On | 10083804 |
| Hub Rating | 7,350 LBS 3,334 kg |
| Hub Cap Bolt Circle Diameter | 4.500" |
| Drum Pilot Diameter | 8.78" |
| Bearing Set | _-stand Premium |
| Fill Hole | No Fill Hole |
| ABS Offset | 1.53" |
| Hub Offset | 5.44" |
| Weight | 46.0 LBS 20.9 kg |
| Machining | 10018074 |
| Machined Flange Thickness | 0.86" |
| Casting | 10001389 |
| Casting Material | D4512 Ductile Iron |
| Bill of Materials Ñ 10083784 Ñ Basic Hub Assembly (Aftermarket) | |||||
| Item | Description | Material | Qty | Unit | Type |
|---|---|---|---|---|---|
| 10083455 | INSTRUCTIONS AMKT INSTALLATION | DOCUMENTATION | 1 | EA | Miscellaneous Shipping Component |
| 10081847 | AMKT WARRANTY KIT REGISTRATION | WARRANTY DOCUMENTATION | 1 | EA | Miscellaneous Shipping Component |
| 10049237 | HUB BX, 14 X 14 X 13, KRFT, CMI | AFTERMARKET PACKAGING | 1 | EA | Miscellaneous Shipping Component |
| 10009780 | RING, ABS | STEEL | 1 | EA | ABS Tone Ring |
| 10001405 | STUD, WHEEL - PROP CL 10.9 | M22 X 1.5MM X 3.46 LG | 10 | EA | Wheel Stud |
| 10041903 | CUP, BEARING - OUTBOARD | 1/2-STAND; STEEL (PREMIUM) | 1 | EA | Bearing Cup |
| 10041901 | CUP, BEARING - INBOARD | 1/2-STAND; STEEL (PREMIUM) | 1 | EA | Bearing Cup |
| 10018074 | HUB, MACHINED | 10001389 HUB, CAST IRON | 1 | EA | Hub Machining |
| 10001389 | HUB, CASTING | D4512 DUCTILE IRON | 1 | EA | Hub Casting |
Product Description
Iron Conventional FF Front
Product Attributes
| Axle | FF |
| Axle Position | Front |
| Bearing Number Inboard | HM212011PS |
| Bearing Number Inboard - 246 | HM212011PS |
| Bearing Number Outboard | 3720 PS |
| Bearing Number Outboard - 245 | 3720 PS |
| Brake Type | Drum |
| Flange Offset | 5.44 IN |
| Hub Mounting System | HP10 |
| Hub Rating | 7350 PG |
| Lead Time | 5 days |
| Material | Iron |
| Weight | 46 PG |
| Wheel Stud Bolt Circle Diameter | 11.25 IN |
| Wheel Stud Standout | 2.6 IN |
| Wheel Stud Thread | M22 X 1.5 mm MM |
Additional Information
| Country of Origin (Primary) | US |
| 5 | |
| UPC | 00810004771215 |
Part Interchanges
CONMET 10083784 Cross Reference
We have 2 alternatives for the 10083784 by CONMET:
ConMet® is the market leader in wheel hubs, aluminum castings, and plastic components for commercial vehicles. It traces back its roots to 1964 when it started as a part of Portland Freightliner, a subsidiary of Consolidated Freightways. More than 30 years later, it began its operation under Amsted Industries, a global manufacturer of components serving the vehicular, railroad, construction, and industrial markets. Headquartered in Vancouver, Washington, ConMet takes pride in its patented innovations, including PreSet®, PreSet Plus®, and TruTurn® product lines. It uses cutting-edge design technologies, such as Solidification Modeling and Finite Element Analysis, and it works hand-in-hand with OE manufacturers to provide highly engineered solutions that best meet the customers' needs.
