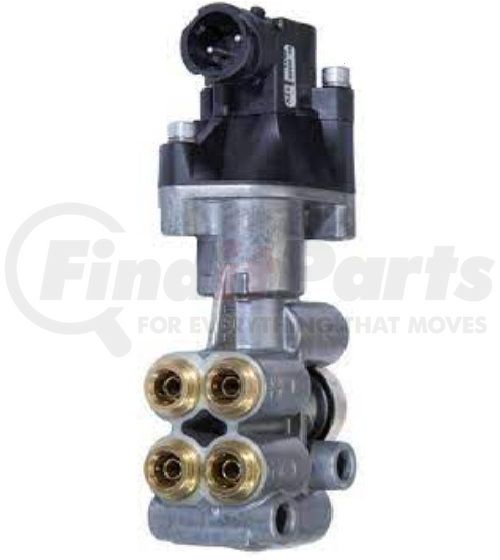

Bendix K118463 - TLV-9000 Lift Axle Valve, Service New
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
BENDIX part description
BENDIX® LIFT AXLE VALVE
| Mounting: | Ø .355 in. (2x) |
| Connector Type: | DIN 72585-A1-2.1 |
| Maximum Operating Temperature: | 176 °F (80 °C) |
| Minimum Operating Temperature: | -40 °F (-40 °C) |
| Cautionary Notes: | Exhaust port can not be pointed down (toward the road) when installed. |
| Exhaust Port: | Dust Shield |
| Voltage Nominal: | 12 Volts |
| Maximum Operating Pressure: | 145 PSI |
| Supply Port 1 - Lift Bag: | 3/8 PTC |
| Supply Port 11 - Suspension Bag: | 3/8 PTC |
| Delivery Port 21 - Suspension Bag: | 3/8 PTC (2x) |
| Delivery Port 23 - Lift Bag: | 3/8 PTC (2x) |
| Product Type | Trailer Valve |
| Valve Type | TLV-9000 |
| Application | Trailer |
Product Description
Lift Axle Valve
Courtesy of Bendix – All rights reserved
Product Attributes
| Gross Weight | 0.513 KG |
| Height | 167 MM |
| Length | 40 MM |
| Market Indicator | Aftermarket (New) |
| Net Weight | 0.513 KG |
| Width | 69 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8481200080 |
| VMRS Code | 016014017 |
Part Interchanges
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
