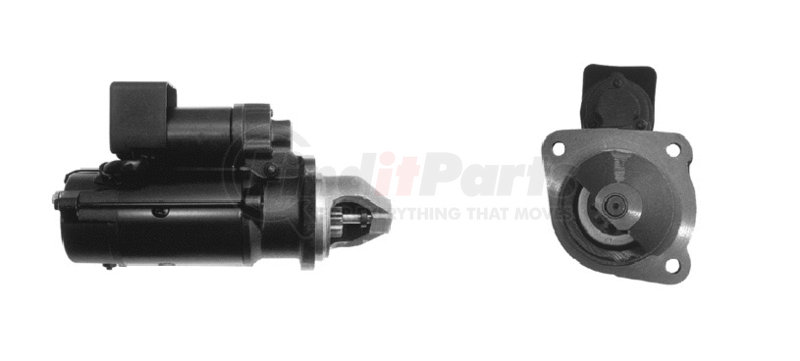

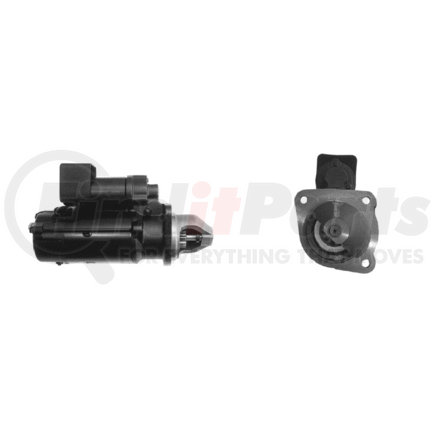

Letrika MS90 - Starter 24V, 10T, CW, PLGR, Letrika/MAHLE AZF45, 4kW, New
$45049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
LETRIKA part description
Technical Data
| Product | Starter |
| Letrika P/N | IS1095 |
| Voltage | 24 V |
| Power | 4.0 kW |
| OEM P/N | 11.131.271 |
| MAHLE P/N | MS 90 |
| Description | AZF4572 |
| No. of pinion teeth | 10 |

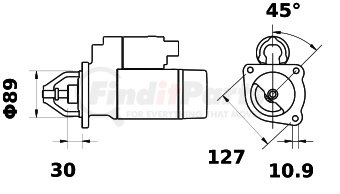

| Module | 3.175 mm |
| Distance over two teeth | 15.42 mm |
| Outside diameter of pinion | 40.5 mm |
| Notes | Insulated ground |
| With reduction gear |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1095 | 11.131.271 AZF4572 24V 4,0kW | MS 90 | Available |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.908.993 | MSX 1247 | Armature | 9 |
| 16.908.995 | MSX 1249 | Set of brushes | 14 |
| 16.915.751 | MSX 1483 | Switch | 4 |
| 16.283.639 | MSX 158 | Rear-end bracket | 15 |
| 16.908.335 | MSX 192 | Lever | 7 |
| 16.280.958 | MSX 197 | Stator | 12 |
| 16.908.340 | MSX 305 | Bearing | 10 |
| 16.907.138 | MSX 419 | Brush holder | 13 |
| 16.904.832 | MSX 609 | Reduction gear | 8 |
| 15.120.243 | MSX 684 | Bearing | 2 |
| 16.902.835 | MSX 766 | Pinion with clutch | 6 |
| 16.908.341 | MSX 787 | Fixing set | 11 |
| 16.283.303 | MSX 9 | Drive end bracket | 1 |
LETRIKA MS90 Cross Reference
We have 4 alternatives for the MS90 by LETRIKA:
