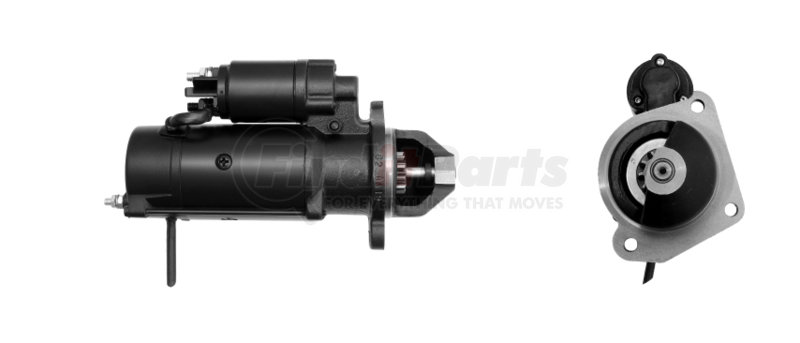

Letrika MS84 - Starter 12V, 11T, CW, PLGR, Letrika/MAHLE AZF41, 4.2kW, New
$35499
MSRP: $528.28
Save: $173.29
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
LETRIKA part description
Technical Data
| Product | Starter |
| Letrika P/N | IS1105 |
| Voltage | 12 V |
| Power | 4.2 kW |
| OEM P/N | 11.131.848 |
| MAHLE P/N | MS 84 |
| Description | AZF4224 |
| No. of pinion teeth | 11 |
| Module | 3.175 mm |
| Distance over two teeth | 15.50 mm |
| Outside diameter of pinion | 41 mm |
| Notes | Mass terminal 31 |
| With reduction gear |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1105 | 11.132.113 AZF4301 12V 4,2kW | Superseded unit, see available P/N IS1105 | |
| IS1105 | 11.131.848 AZF4224 12V 4,2kW | MS 84 | Available |
| IS1105 | 11.131.711 AZF4186 12V 4,2kW | Superseded unit, see available P/N IS1105 | |
| IS1105 | 11.131.697 AZF4181 12V 4,2kW | Superseded unit, see available P/N IS1105 | |
| IS1105 | 11.131.292 AZF4576 12V 4,2kW | Superseded unit, see available P/N IS1105 |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.915.354 | MSX 1060 | Switch | 4 |
| 16.908.336 | MSX 1225 | Brush holder | 13 |
| 16.902.621 | MSX 1345 | Pinion with clutch | 6 |
| 16.283.937 | MSX 1447 | Rear-end bracket | 15 |
| 16.908.335 | MSX 192 | Lever | 7 |
| 16.908.340 | MSX 305 | Bearing | 10 |
| 16.283.424 | MSX 432 | Drive end bracket | 1 |
| 16.911.446 | MSX 533 | Reduction gear | 8 |
| 16.282.438 | MSX 673 | Stator | 12 |
| 15.120.243 | MSX 684 | Bearing | 2 |
| 16.908.341 | MSX 787 | Fixing set | 11 |
| 16.908.337 | MSX 79 | Set of brushes | 14 |
| 16.915.044 | MSX 997 | Armature | 9 |
LETRIKA MS84 Cross Reference
We have 15 alternatives for the MS84 by LETRIKA:
