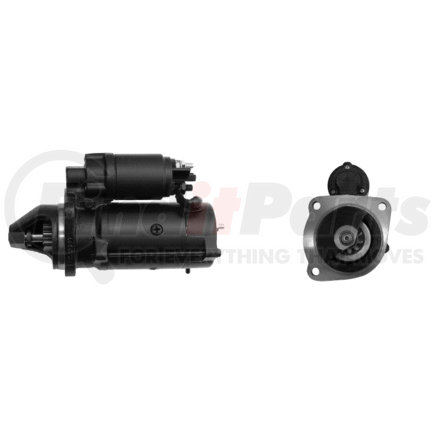

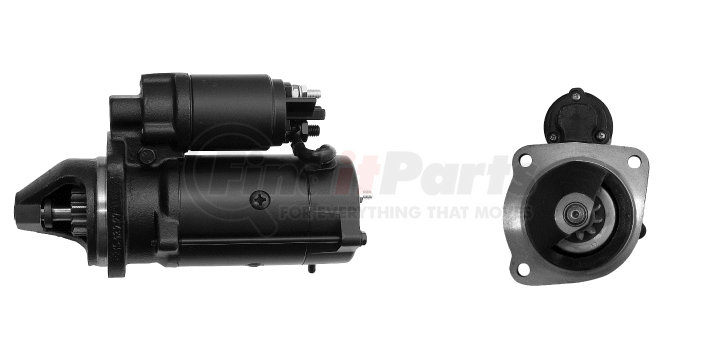

Letrika MS399 - Starter 12V, 10T, CW, PLGR, Letrika/MAHLE AZE41, 3.2kW, New
$36899
MSRP: $548.95
Save: $179.96
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
LETRIKA part description
Technical Data
| Product | Starter |
| Letrika P/N | IS1201 |
| Voltage | 12 V |
| Power | 3.2 kW |
| OEM P/N | 11.131.781 |
| MAHLE P/N | MS 399 |
| Description | AZE4173 |
| No. of pinion teeth | 10 |
| Module | 3.175 mm |
| Distance over two teeth | 15.42 mm |
| Outside diameter of pinion | 39.6 mm |
| Notes | Mass terminal 31 |
| With reduction gear |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1201 | 11.132.036 AZE4220 12V 3,2kW | Superseded unit, see available P/N IS1201 | |
| IS1201 | 11.131.989 AZE4215 12V 3,2kW | Superseded unit, see available P/N IS1201 | |
| IS1201 | 11.131.956 AZE4204 12V 3,2kW | Superseded unit, see available P/N IS1201 | |
| IS1201 | 11.131.947 AZE4201 12V 3,2kW | Superseded unit, see available P/N IS1201 | |
| IS1201 | 11.131.942 AZE4197 12V 3,2kW | Superseded unit, see available P/N IS1201 | |
| IS1201 | 11.131.793 AZE4175 12V 3,2kW | Superseded unit, see available P/N IS1201 | |
| IS1201 | 11.131.781 AZE4173 12V 3,2kW | MS 399 | Available |
| IS1201 | 11.131.761 AZE4170 12V 3,2kW | Superseded unit, see available P/N IS1201 | |
| IS1201 | 11.131.605 AZE4150 12V 3,2kW | Superseded unit, see available P/N IS1201 |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.911.623 | MSX 1282 | Reduction gear | 8 |
| 16.282.543 | MSX 1315 | Stator | 12 |
| 16.907.753 | MSX 1366 | Armature | 9 |
| 16.908.335 | MSX 192 | Lever | 7 |
| 16.902.507 | MSX 233 | Pinion with clutch | 6 |
| 16.908.753 | MSX 322 | Set of brushes | 14 |
| 15.120.243 | MSX 684 | Bearing | 2 |
| 16.915.546 | MSX 924 | Switch | 4 |
| 16.285.119 | MSX 941 | Rear-end bracket | 15 |
| 16.907.910 | MSX 942 | Fixing set | 11 |
| 16.285.476 | MSX 971 | Drive end bracket | 1 |
| 16.908.752 | MX 5 | Brush holder | 13 |
LETRIKA MS399 Cross Reference
We have 28 alternatives for the MS399 by LETRIKA:
- AGCO 261 946 00
- AGCO 291 948 00
- BOBCAT 7169477
- CARGO 114388
- CATERPILLAR 225 3149
- CATERPILLAR 312 7540
- CATERPILLAR 329 0290
- CATERPILLAR 365 3422
- HATTAT 9HT12010A6A
- JCB 714/40159
- JCB 714/40159R
- JCB 714/40231
- JCB 714/40531
- JCB 714/40536
- LESTER 18940
- MAGNETI MARELLI 632 800 41
- MAGNETI MARELLI MSN 8041
- PERKINS 2873K405
- PERKINS 2873K624
- PERKINS 2873K625
- PERKINS 2873K626
- PERKINS 2873K634
- PERKINS 3586849
- PERKINS 3873K627
- PRESTOLITE 860715
- SPARE X68296
- IS1201
- MS 399
