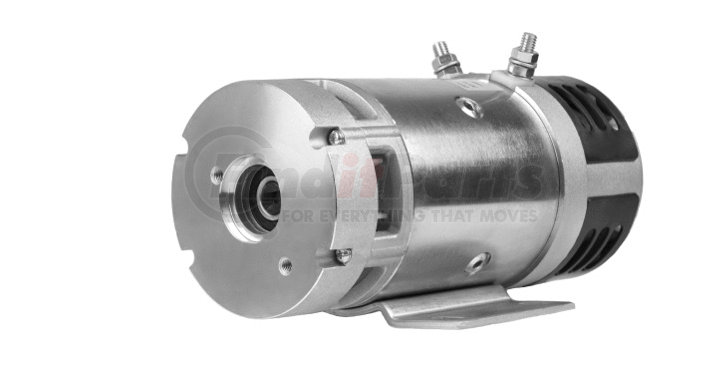

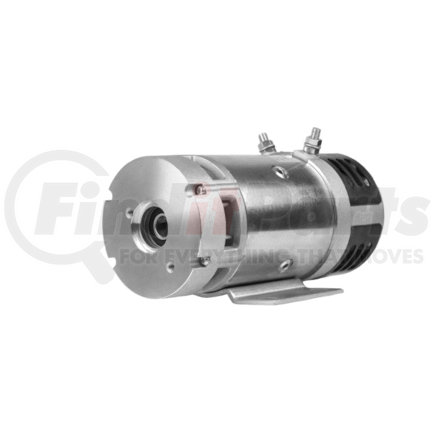

Letrika MM389 - Hydraulic Motor 24V, CW, 3kW / 4.02HP
$34549
MSRP: $505.95
Save: $160.46
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
LETRIKA part description
Technical Data
| Product | Motor |
| Letrika P/N | IM0398 |
| Voltage | 24 V |
| Power | 3.0 kW |
| OEM P/N | 11.216.992 |
| MAHLE P/N | MM 389 |
| Description | AMK4671 |
| No. of revolutions | 3,100/min |
| Rotation | ⇒ |
| S1 | |
| S2 | 13 min |
| S3 | 28 %ED |
| Mass | 12.5 kg |
| Flange | Customer design |
| Termo protection | No |
| Ventilation | Yes |
| Notes | Heavy duty |
| Hydraulics | |
| Insulated ground | |
| Ventilation |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IM0398 | 11.216.992 AMK4671 24V 3,0kW | MM 389 | Available |
| IM0398 | 11.216.713 AMK4672 24V 3,0kW | Superseded unit, see available P/N IM0398 | |
| IM0398 | 11.216.709 AMK4671 24V 3,0kW | Superseded unit, see available P/N IM0398 |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.907.807 | MMX 1104 | Bearing | 2 |
| 16.285.435 | MMX 1126 | Drive end bracket | 1 |
| 16.908.450 | MMX 468 | Stator | 8 |
| 15.133.378 | MMX 537 | Central cover | 3 |
| 16.908.260 | MMX 546 | Set of brushes | 11 |
| 15.421.058 | MMX 603 | Fan | 14 |
| 15.133.052 | MMX 658 | Rear-end bracket | 13 |
| 16.908.258 | MMX 748 | Bolt | 7 |
| 16.907.608 | MMX 790 | Bearing | 5 |
| 16.362.756 | MMX 819 | Armature | 4 |
| 16.915.171 | MMX 820 | Brush holder | 10 |
| 16.915.592 | MMX 847 | Protecting cover | 15 |
LETRIKA MM389 Cross Reference
We have 4 alternatives for the MM389 by LETRIKA:
