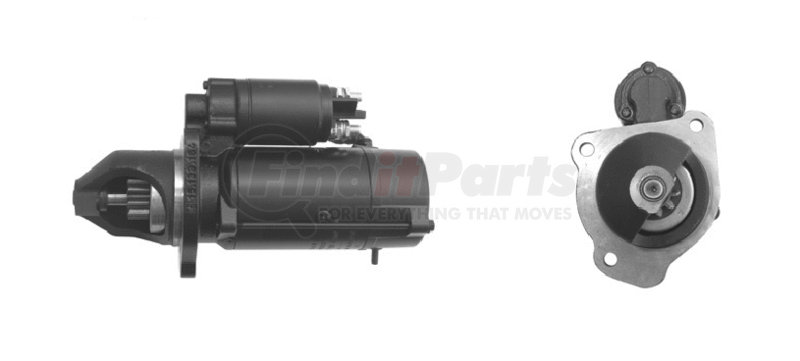

Letrika MS94 - Starter 12V, 10T, CW, PLGR, Letrika/MAHLE AZJ, 4.2kW, New
$37249
MSRP: $489.28
Save: $116.79
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
LETRIKA part description
Technical Data
| Product | Starter |
| Letrika P/N | IS1063 |
| Voltage | 12 V |
| Power | 4.2 kW |
| OEM P/N | 11.131.375 |
| MAHLE P/N | MS 94 |
| Description | AZF4597 |
| No. of pinion teeth | 10 |
| Module | 3.175 mm |
| Distance over two teeth | 15.42 mm |
| Outside diameter of pinion | 39.6 mm |
| Notes | Mass terminal 31 |
| With reduction gear |
| Letrika P/N | OEM P/N | MAHLE P/N | |
|---|---|---|---|
| IS1063 | 11.131.375 AZF4597 12V 4,2kW | MS 94 | Available |
| IS1063 | 11.131.092 AZF4550 12V 4,2kW | Superseded unit, see available P/N IS1063 | |
| IS1063 | 11.131.060 AZF4541 12V 4,2kW | Superseded unit, see available P/N IS1063 | |
| IS1063 | 11.130.794 AZF4522 12V 4,2kW | Superseded unit, see available P/N IS1063 | |
| IS1063 | 11.130.679 AZJ3226 12V 3,1kW | Superseded unit, see available P/N IS1063 |
Related Parts
| Letrika P/N | MAHLE P/N | DESCRIPTION | POS |
|---|---|---|---|
| 16.915.718 | MSX 1007 | Switch | 4 |
| 16.908.336 | MSX 1225 | Brush holder | 13 |
| 16.908.492 | MSX 1227 | Lever | 7 |
| 16.908.542 | MSX 236 | Fixing set | 11 |
| 16.908.340 | MSX 305 | Bearing | 10 |
| 16.902.379 | MSX 483 | Pinion with clutch | 6 |
| 16.282.089 | MSX 497 | Stator | 12 |
| 16.283.630 | MSX 548 | Rear-end bracket | 15 |
| 16.904.832 | MSX 609 | Reduction gear | 8 |
| 15.120.243 | MSX 684 | Bearing | 2 |
| 16.908.339 | MSX 786 | Armature | 9 |
| 16.908.337 | MSX 79 | Set of brushes | 14 |
| 16.908.783 | MSX 85 | Drive end bracket | 1 |
LETRIKA MS94 Cross Reference
We have 61 alternatives for the MS94 by LETRIKA:
- BOBCAT 6651258
- BOBCAT 6651664
- BOSCH 0001362324
- CARGO 113454
- CASE 4507 32 R91
- CASE 5964 93 R92
- CLARK 910886
- CLARK E FIRE PROT. PROD. INC. OCO71072
- DELCO REMY 10461450
- DELCO REMY 10461451
- DELCO REMY 10465049
- DELCO REMY 10465050
- DELCO REMY 1107866
- DELCO REMY 1109198
- DELCO REMY 1109263
- DELCO REMY 1113281
- DELCO REMY 1113282
- DELCO REMY 12301341
- DELCO REMY 1998330
- DELCO REMY 323-674
- DELCO REMY 323-684
- DELCO REMY 323442
- DELCO REMY 323443
- DENSO 228000-640
- DIXIE TS-6133
- HYSTER 3042511
- JOHN DEERE AL81154
- JOHN DEERE RE105298
- JOHN DEERE RE501766
- JOHN DEERE RE501767
- JOHN DEERE RE505744
- JOHN DEERE RE507639
- JOHN DEERE RE508322
- JOHN DEERE RE509903
- JOHN DEERE RE540136
- JOHN DEERE RE60171
- JOHN DEERE RE60239
- JOHN DEERE RE70728
- JOHN DEERE SE501850
- JOHN DEERE SE502631
- LESTER 18195
- LESTER 18483
- LESTER 4196
- LESTER 4274
- LESTER 4963
- LESTER 6576
- MASSEY-FERGUSON 1903 103 M91
- MASSEY-FERGUSON 1903 117 M91
- MASSEY-FERGUSON 517 533 M93
- MASSEY-FERGUSON 579 937 M91
- MERCURY 347198
- MERCURY 646218
- SPARE X32999
- SPARE X70904
- THERMO KING 3185C37G01
- WHITE 10-14194S
- WHITE 30-3123383
- WILSON 91-01-4310
- WILSON 91-23-6501
- IS1063
- MS 94
