HORTON part description

CLUTCH*VMASTER*DIRECT SENSING*VS 217

Product Description

VS Directly Controlled Fan Drive

Application Summary

FREIGHTLINER

Features & Benefits

  • Rapid response to changing cooling requirements
  • Enhanced fuel economy, lower noise and maximum efficiency
  • Compatible with Horton and other fan manufacturer parts
  • Simple, flexible design for easier installation

Fan clutch, drive, engine cooling system, fully variable, performance, horsepower, viscous

Product Attributes

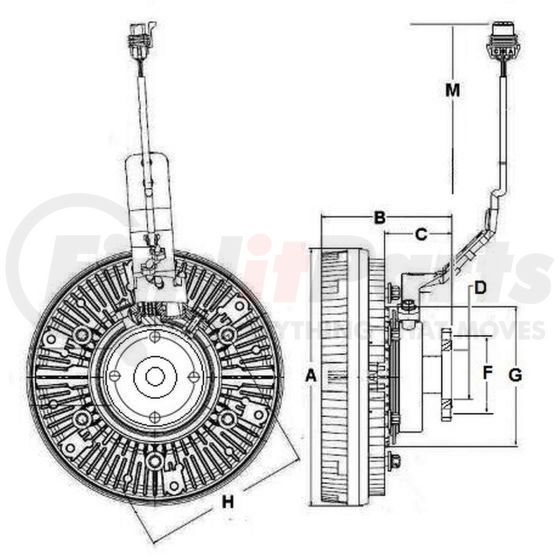

CLUTCH TO FAN MOUNTING SURFACE 4.58503937 IN
Connector Type Delphi Metri-Pack Series 150
Fan Bolt Circle 6 IN
FAN PILOT DIAMETER 4.996062992 IN
Heavy Duty No
LENGTH OF WIRE 9.842519685 IN
MOUNTING BOLT CIRCLE 2.362204724 IN
MOUNTING PILOT DIAMETER 1.000787402 IN
MOUNTING THREAD TYPE / SLOTS M30X2-6G-LH
OUTER (OVERALL) DIAMETER 9.173228346 IN
Overall Length 6.823228346 IN
Voltage 12V

Additional Information

OEM's Part Number 9804088
VMRS Code 042003036

HORTON 9904088 Cross Reference

We have 2 alternatives for the 9904088 by HORTON:

Horton® is a world-renowned manufacturer of high-grade engine cooling solutions for the trucking industry for over 65 years. This company believes that improved airflow translates to better performance, reduced emissions, more significant fuel savings, and happy customers. Horton offers best-in-class fans, fan drives, and clutches for on-highway big rigs like heavy-, medium-, and light-duty trucks, R.V.s, buses, refuse vehicles, commercial vehicles, and other applications. This company also takes pride in its off-highway and heavy-duty products, including sweepers, agricultural tractors, mining trucks, aerial work platforms, excavators, generators, articulated vehicles, and industrial compressors. Made to operate in harsh environments, these Horton products withstand temperature extremes, dust, dirt, chemicals, as well as stop-and-go driving. For truck parts that consume less fuel, last longer, and run quieter, trust no other brand than Horton.
