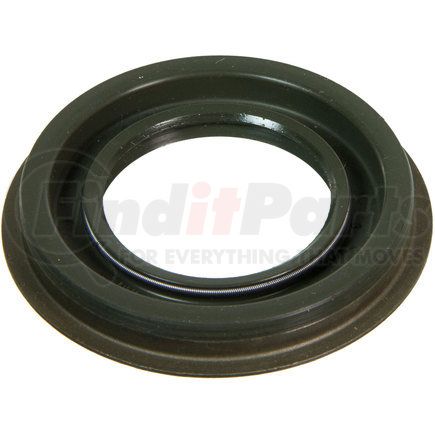

Name: National Seals 710712 Auto Trans Seal
SKU: 710712
Price: 8.49 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

National® oil seals provide advanced solutions for today's vehicles.

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for todays vehicles.

Low swell in hydrocarbon fluids
Design type: spring loaded: multi-lip
Provides good low temperature capability
Temperature range: -40°F to 225°F: -40°C to 107°C
Delivers quality and reliable performance for every type of repair

Part Specifications

NATIONAL OIL SEAL SPECS

Part Description	Oil Seal
Shaft (Inch)	1.561
Shaft (MM)	39.649
Housing Bore (Inch)	2.565
Housing Bore (MM)	65.151
Outside Diameter (Inch)	2.570
Outside Diameter (MM)	65.278
Flanged Outside Diameter (Inch)	2.839
Flanged Outside Diameter (MM)	72.100
Width (Inch)	0.314
Width (MM)	7.976
Material	Fluoro-Elastomer
Type	74
Footnote	Clockwise-Spiral Lip Design
Series	717000

Product Description

Auto Trans Torque Conv. Seal

Application Summary

2010-2011 Ford Fusion (Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Ford 6F35 Transmission); 2009-2019 Ford Escape (Transmission Code: 6F35 & Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Ford 6F35 Transmission); 2016-2019 Ford Explorer (Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Ford 6F35 Transmission); 2017-2018 Lincoln MKC (Transmission Code: 6F35 & Transmission Base Gear: 6 & Transmission Control Type: Automatic); 2010-2011 Lincoln MKZ (Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Ford 6F35 Transmission); 2016-2018 Lincoln MKX (Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Ford 6F35 Transmission); 2009-2011 Mercury Mariner (Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Ford 6F35 Transmission); 2010 Mercury Milan (Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Ford 6F35 Transmission); 2009-2011 Mazda Tribute (Transmission Base Gear: 6 & Transmission Control Type: Automatic / Qualifier: with Ford 6F35 Transmission)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40degF to 400degF / -40degC to 204degC
Excellent high temperature capabilities
Compatible with wide range of fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Material	Fluoro-Elastomer
Inside Diameter	1.561 IN
Thickness	0.314 IN
Outside Diameter	2.570 IN
Flanged Outside Diameter (inch)	2.839 IN
Flanged Outside Diameter (mm)	72.100 MM
Helix Type	Clockwise-Spiral Lip Design
Housing Bore (inch)	2.565 IN
Housing Bore (mm)	65.151 MM
Outside Diameter (inch)	2.570 IN
Outside Diameter (mm)	65.278 MM
Part Description	Oil Seal
Series	710700
Shaft (inch)	1.561 IN
Shaft (mm)	39.649 MM
Type	74
Unit of Dimension	Inch
Width (inch)	0.314 IN
Width (mm)	7.976 MM

Additional Information

Country of Origin (Primary)	TW
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00019826202543

Part Interchanges

Fits Vehicles

Lincoln MKC (2017-2018)
Lincoln MKX (2016-2018)
Ford Explorer (2016-2019)
Lincoln MKZ (2010-2011)
Ford Fusion (2010-2011)
Mercury Milan (2010)
Mazda Tribute (2009-2011)
Mercury Mariner (2009-2011)
Ford Escape (2009-2011, 2017-2019)
