Name: Gates 2/9447PB BELT
SKU: 29447pb
Price: 22.99 USD
Availability: InStock

GATES CORPORATION part description

Features Advantages: Meets or exceeds SAE J1459 specifications. Designed for problem, heavy-duty, applications requiring belt sets. Tie-band joining belts together ensures stability lacking in ordinary belt sets. Even load distribution between strands provides better shock load absorption. Molded notches reduce bending stress, especially on small diameter pulleys

Belt / Sprocket Specifications

Angle: 36

Effective Length (in): 44.54

Effective Length (mm): 1131

Number of Strands: 2

Outside Circumference (in): 45.42

Outside Circumference (mm): 1154

Total Top Width (in): 1.125

Total Top Width (mm): 28

Customer Pack: 1.0

Standard Pack: 40

Product Attributes

Notched: Yes

Section: HC50

Specifications

Top Width Per Strand (in): .5

Top Width Per Strand (mm): 13

Weight

Weight (Lbs.): .69

Product Description

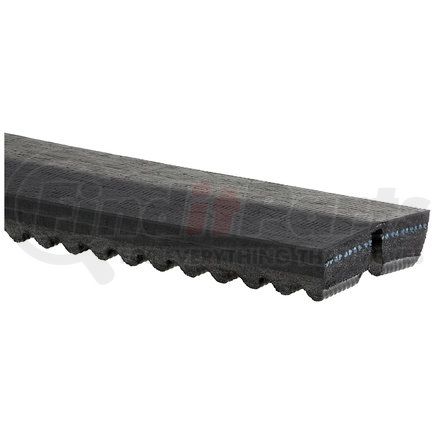

Green Stripe PowerBand Heavy-Duty Joined V-Belt

Application Summary

1999-1991 International/Navistar, 9400, Cummins N14 Diesel, Alt.

Features & Benefits

Unique tensile cord design gives belt extra strength, added flexibility and shock-load resistance
Molded notches reduce bending stress, especially on small diameter pulleys, while dissipating heat
Even load distribution between strands provides better shock-load absorption
Eliminates belt turnover or belts jumping off the drive
Meets or exceeds SAE J636 specifications
Meets RMA oil and heat resistant standards and static conductivity requirements

Product Attributes

Top Width	1.125 in
Construction	Notched
Cord Material	Polyester
Cross Section Designation	HC50
Strand Quantity	2
2000	.5 IN
Effective Length	44.54 in
Outside Circumference	45.42 in
Type	High Capacity Joined V-Belt
Belt Material	EPDM
Angle	36
9837	Yes

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4010323000
UPC	00072053416602
VMRS Code	065005003
UNSPSC	26111801

Part Interchanges

GATES CORPORATION 2/9447PB Cross Reference

We have 1 alternatives for the 2/9447PB by GATES CORPORATION:

85410013

Fits Vehicles

Volvo WG (1996)
International 9900 SFA (1999)
International F5070-WW (1993)
International F5070 (1990-1998)
International 5070 (1990-1998)
International 9900ix (2000-2002)
International 9900 (1999)
International 9900i (2000-2002)
Volvo WX (1996)
Mack MH (1988-1990)
Mack RW (1990-1991)
International 9400i SBA (2000-2002)
International 9200i SBA (2000-2002)
International 9900ix SFA (2001-2002)
International 9900i SFA (2000-2002)
International 9100 SBA (1998-1999)
International 9100i SBA (2000-2002)
International 9200 SBA (1995-2000)
International 9300 (1991-1999)
International 9600 (1992-1995)
International 9700 (1992-1994)
International 9400 (1991-1995, 1997-2000)
International 5000 (1990-1998)
White/GMC WXR (1995)
White/GMC WXLL (1989-1991, 1994-1995)
White/GMC WX (1989-1991, 1994-1995)
