Name: Champion 946 Champion Copper SME
SKU: 946
Price: 13.2 USD
Availability: InStock

CHAMPION part description

Champions traditional plugs are all constructed with a corrosion resistant zinc plated shell. Resistor plugs have the most durable high voltage semiconductor while marine application use a special wire wound Q-type suppressor (CDI resistor) when noted. Copper core ground or center electrode (when noted). Conforms to all I.S.O and S.A.E standards as specified by all manufacturers.

14mm Thread Size
19mm (3/4") Reach
5/8" (16mm) Hex Size
Gasket Seat
Copper Core

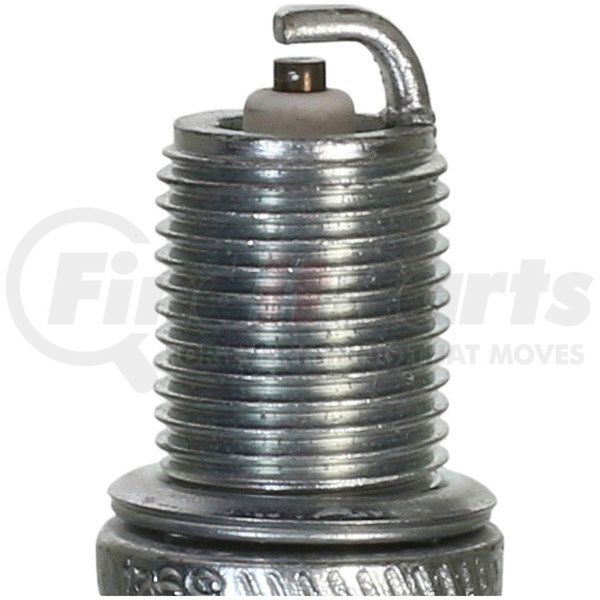

Projected Tip
CDI Resistor
Heat Range 12

Product Description

Copper Plus Small Engine Spark Plug QC12YC Carton of 4

Application Summary

Saab Pass. Car: 2.0L L4 (90-86), 2.1L L4 (94-91), 2.3L L4 (98-94)

Features & Benefits

Copper Plus - Dependable Performance and Durability
OE type replacement plug
Resists fouling
Copper core center electrode allows for accurate control of heat range for longer life
Superior corrosion resistance
Built to ISO and SAE standards for proven performance

Product Attributes

Ground Electrode Core Material	Nickel
Washer Included	Yes
Electrical Terminal Type	Non-Removable Nut
Center Electrode Tip Material	Nickel
Pre-Gap Size	0.030 IN
Ground Electrode Quantity	1
Hex Size	0.625 IN
Insulator Height	0.06 IN
Manufacturer Heat Range	12
Seat Type	Flat
Reach	0.75 IN
Thread Diameter	0.551 IN
Resistor Type	Yes
9507	Hex
9745	Crush
9746	No
Center Electrode Diameter (inch)	0.1 IN
Classification	Champion Copper Plus Small Engine
Ground Electrode Material	Nickel Copper Alloy
Installed Height (inch)	1.99 IN
Insulator Projection (inch)	0.06 IN

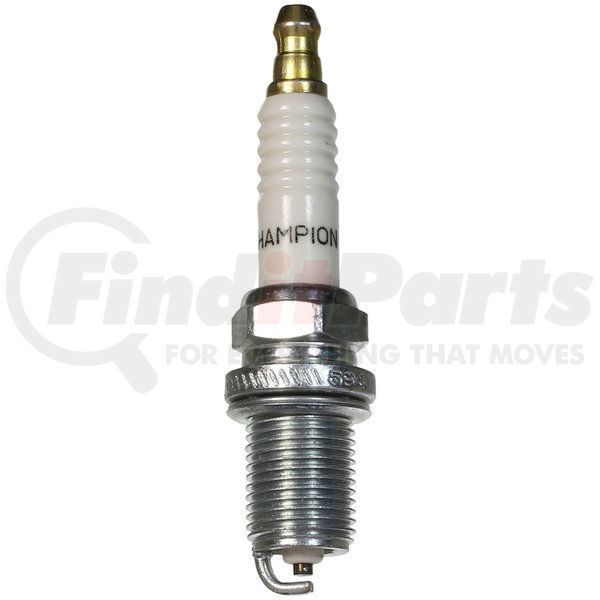

Part Description	Spark Plug
Plug Type	QC12YC
Taper Diameter (inch)	0.25 IN

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8511100000
Harmonized Tariff Code (HTS)	8511100000
UPC	00037551007615
VMRS Code	033003005

Part Interchanges

CHAMPION 946 Cross Reference

We have 1 alternatives for the 946 by CHAMPION:

QC12YC

Fits Vehicles

Saab 900 (1986-1994)
