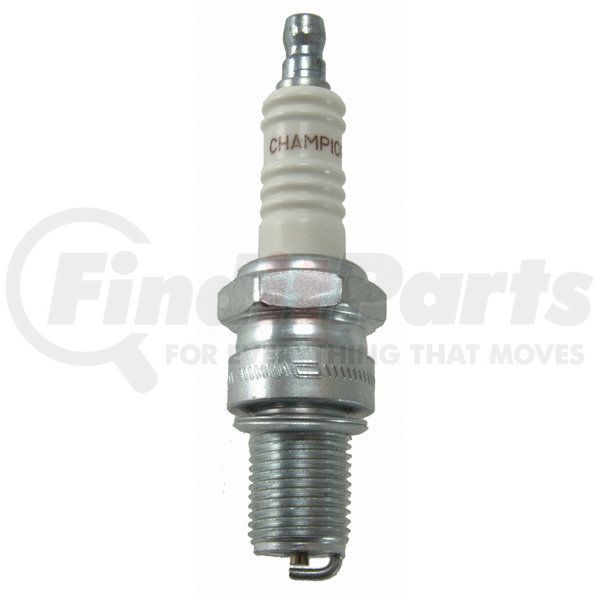

Name: Champion 803 Champion Copper SME
SKU: 803
Price: 2.33 USD
Availability: InStock

CHAMPION part description

Champions traditional plugs are all constructed with a corrosion resistant zinc plated shell. Resistor plugs have the most durable high voltage semiconductor while marine application use a special wire wound Q-type suppressor (CDI resistor) when noted. Copper core ground or center electrode (when noted). Conforms to all I.S.O and S.A.E standards as specified by all manufacturers.

14mm Thread Size
19mm (3/4") Reach
13/16" (20.6mm) Hex Size
Gasket Seat
Non-Resistor
Copper Core
Heat Range 4

Product Description

Copper Plus Small Engine Spark Plug N4C Carton of 4

Application Summary

Alfa Romeo Pass. Car: 1.9L L4 (54-51), 2.0L L4 (62-53), 2.6L L6 (66-62); Alvis Pass. Car: 3.0L L6 (66-63); Fiat Pass. Car: 1.2L L4 (67-66); Lancia Pass. Car: 2.5L V6 (66-64), 2.8L V6 (66-64); Mercedes-Benz Pass. Car: 2.2L L6 (59-51); MG Pass. Car: 1.6L L4

Features & Benefits

Copper Plus - Dependable Performance and Durability
OE type replacement plug
Resists fouling
Copper core center electrode allows for accurate control of heat range for longer life
Superior corrosion resistance
Built to ISO and SAE standards for proven performance

Product Attributes

Ground Electrode Core Material	Nickel
Washer Included	Yes
Electrical Terminal Type	Removable Nut
Center Electrode Tip Material	Nickel
Pre-Gap Size	0.025 IN
Ground Electrode Quantity	1
Hex Size	0.813 IN
Manufacturer Heat Range	4
Seat Type	Flat
Reach	0.75 IN
Thread Diameter	0.551 IN
Resistor Type	No
9507	Hex
9745	Crush
9746	No
9748	12.7 MM
Center Electrode Diameter (inch)	0.1 IN
Classification	Champion Copper Plus Small Engine
Ground Electrode Material	Nickel Copper Alloy
Installed Height (inch)	2.15 IN
Part Description	Spark Plug
Plug Type	N4C
Taper Diameter (inch)	0.25 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8511100000
Harmonized Tariff Code (HTS)	8511100000
UPC	00037551000494
VMRS Code	033003005

Part Interchanges

CHAMPION 803 Cross Reference

We have 1 alternatives for the 803 by CHAMPION:

Fits Vehicles

Chevrolet C70 (1960-1961)
Chevrolet C60 (1966-1968)
Chevrolet C50 (1966-1968)
Sno-Jet Star-Jet 292 Yamaha (1971-1973)
Polaris Electra 440 (1975-1976)
Polaris Electra 340 (1976-1977)
Polaris Colt S/S 295 (1972)
Polaris Colt 295 (1972)
Harley Davidson Z90 (1973-1975)
Harley Davidson SX125 (1974-1975)
Kawasaki JS400 (1976)
Suzuki RL250 (1974-1975)
Beta TR33 (1985-1986)
BMW 2600 (1962-1963)
Turner 803 (1955)
Yamaha RT100 (1990-2000)
Kawasaki JS650 650SX (1987-1990)
Kawasaki KLT200 (1981-1984)
Kawasaki KZ650H CSR (1981-1983)
Yamaha YZ50 (1980)
Kawasaki KZ250 (1980-1983)
Kawasaki KZ440D LTD Belt (1980-1983)
Kawasaki KZ650E LTD (1980)
Kawasaki KZ440A LTD (1980-1983)
Kawasaki KZ440B/G (1980-1982)
Yamaha MX100 (1979-1983)
Suzuki GS425 (1979)
Suzuki DS185 (1979-1980)
Kawasaki KZ400H LTD (1979)
Kawasaki KE175 (1979-1983)
Kawasaki KZ200 (1978)
Suzuki DS80 (1978-2000)
Kawasaki KZ650D SR (1978-1979)
Kawasaki KZ400B (1978-1979)
Kawasaki KZ400C Special (1978)
Kawasaki KL250 (1978-1984)
Suzuki RM80 (1977)
Suzuki GS400X (1977-1978)
Kawasaki KZ650B/F (1977-1980)
Kawasaki KZ400A Deluxe (1977-1978)
Kawasaki KZ650C Custom (1977-1979)
Bultaco Pursang 250 (1977-1979)
Yamaha TY175 (1976-1979)
Yamaha DT100 (1976-1983)
Kawasaki KZ400S Special (1975-1977)
Suzuki GT550 (1975-1977)
Yamaha TY250 (1974-1978)
Kawasaki KZ400/D (1974-1977)
Yamaha SL292 (1972-1973)
Yamaha SS396 (1969)
Kawasaki W2TT Commander (1969)
Kawasaki W2SS Commander (1968-1969)
Kawasaki W1SS (1968-1969)
Kawasaki W1 (1966-1967)
Alvis TF21 (1966-1967)
Alvis TE21 (1963-1966)
Simca 1000 (1962-1968)
Panhard PL-17 (1960-1962)
Turner SPR60 (1959-1966)
Turner 950 (1956-1966)
Panhard Dyna (1956-1959)
Facel Vega Facellia (1960-1963)
NSU 1200C (1968-1972)
Lancia Flaminia (1963-1968)
Lancia Fulvia (1963-1969)
Alfa Romeo 2600 (1962-1968)
Alfa Romeo 2000 (1958-1962)
Alfa Romeo 1900 (1951-1958)
BMW 3200 (1962-1963)
Mercedes-Benz 219 (1951-1959)
Volkswagen Transporter (1985-1991)
MG MGA (1959-1961)
Lotus Super Seven (1961-1962)
Fiat 124 (1966-1967)
Volkswagen Vanagon (1984-1991)
Renault R17 (1972-1974, 1976-1979)
Renault Fuego (1982-1984)
