Champion 7712 - Champion DBL Plat
$899
MSRP: $13.00
Save: $4.01
In stock
limited availability at this price!
. Learn more
CHAMPION part description
Product Description

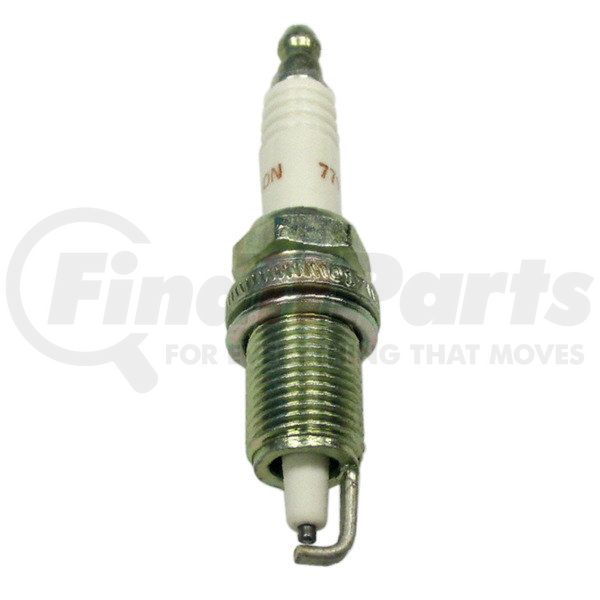

Double Platinum Power Spark Plug QC12PEP Carton of 4
Application Summary
MARINE
Features & Benefits
- Double Platinum Power - Premium Spark Plug. More Powerful Performance.
- Platinum center and ground electrode for greater wear resistance
- Maintains stable operating temperature under all engine loads

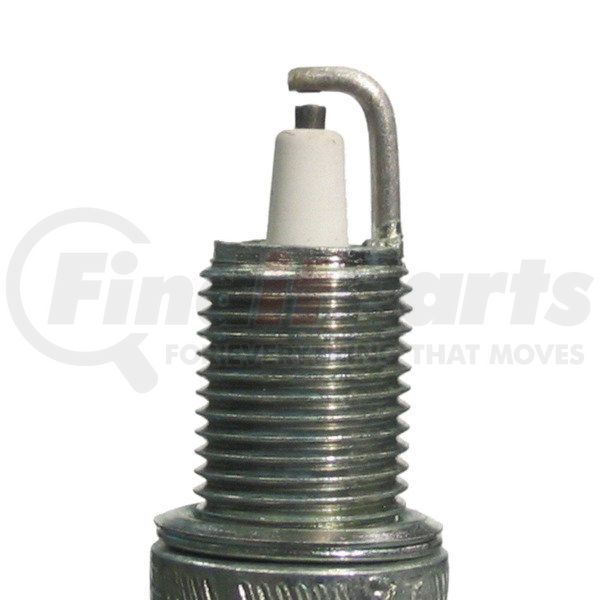

- Fine-wire center electrode for greater ignitability
- V-trimmed ground electrode promotes sharper spark focus
- Heat-ActiveTM alloy allows electrodes to reach optimal temperature
Product Attributes
| Ground Electrode Core Material | Platinum |
| Washer Included | Yes |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | 0.030 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 0.625 IN |
| Insulator Height | 0.29 IN |
| Manufacturer Heat Range | 12 |
| Seat Type | Flat |
| Reach | 0.75 IN |
| Thread Diameter | 0.551 IN |
| Resistor Type | Yes |
| 9507 | Hex |
| 9745 | Crush |
| 9746 | No |
| Center Electrode Diameter (inch) | 0.078 IN |
| Classification | Champion Premium Small Engine |
| Ground Electrode Material | Platinum Pad Surface |
| Installed Height (inch) | 1.99 IN |
| Insulator Projection (inch) | 0.29 IN |
| Part Description | Spark Plug |
| Plug Type | QC12PEP |
| Taper Diameter (inch) | 0.25 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00037551500413 |
| VMRS Code | 033003005 |
Part Interchanges
For more than 110 years, Champion® has been a highly respected brand for spark plugs worldwide. From airplanes to high-performance race cars, Champion has developed spark plugs for almost every type of engine. Its century’s worth of experience and commitment has led to designs and optimizations that make Champion spark plugs perform better than the competition. This proven expertise and engineering has also been expanded to other maintenance products, including Champion filters, batteries, and lighting. All products are designed, manufactured, and tested in accordance with OE specifications to ensure a seamless fit and function. When it comes to quality, the customer is always a winner with Champion.
