Champion 3017 - Champion Platinum
$382
MSRP: $5.43
Save: $1.61
In stock
limited availability at this price!
. Learn more
CHAMPION part description
Product Description

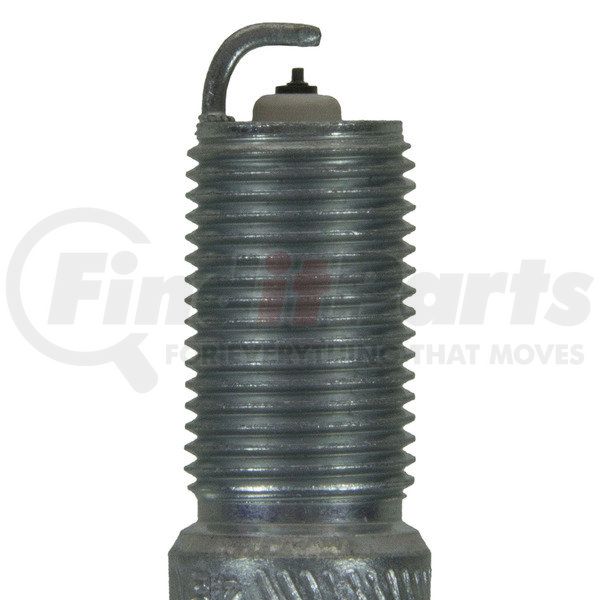

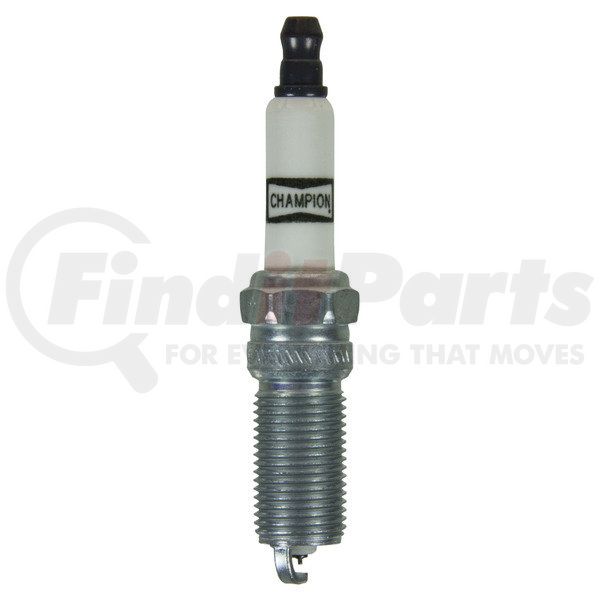

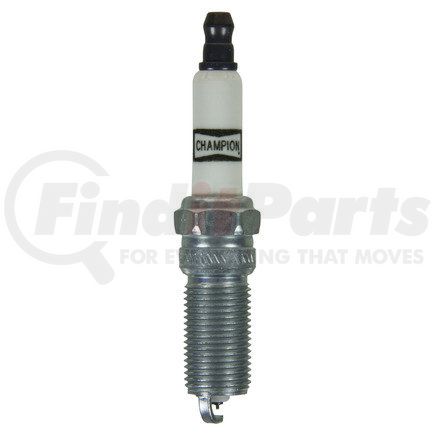

Platinum Power Spark Plug RES8PYB5 Carton of 4
Application Summary
Buick Pass. Car: 3.0L V6 (10-10), 3.6L V6 (10-10); Cadillac Pass. Car: 2.5L L4 (15-13), 3.6L V6 (15-13); Ford Lt. Trk.: 3.5L V6 (14-07), 3.7L V6 (15-11), 6.2L V8 (15-10); Ford Pass. Car: 2.5L L4 (15-13), 3.5L V6 (15-08), 3.7L V6 (15-11), 5.0L V8 (14-11);
Features & Benefits
- Platinum Power- Premium Spark Plug. Powerful Performance.
- Platinum center electrode for long life
- Fine-wire center electrode for greater ignitability
- V-trimmed ground electrode promotes sharper spark focus
- Heat-ActiveTM alloy allows electrodes to reach optimal temperature
- Platinum tipped center wire resists wear and helps to maintain proper gap spec over life of the plug
Product Attributes
| Ground Electrode Tip Design | J Gap |
| Ground Electrode Core Material | Nickel |
| Washer Included | No |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | 0.05 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 0.625 IN |
| Insulator Height | 0.06 IN |
| Manufacturer Heat Range | 8 |
| Seat Type | Tapered |
| Reach | 0.984 IN |
| Thread Diameter | 0.551 IN |
| Resistor Type | Yes |
| 9507 | Hex |
| 9746 | No |
| Classification | Champion Platinum Power |
| Part Description | Spark Plug |
| Plug Type | RES8PYB5 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8511100000 |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00037551013487 |
| VMRS Code | 033003005 |
Part Interchanges
Fits Vehicles
- Ford E-450 Super Duty (2019)
- Ford E-350 Super Duty (2017-2019)
- Lincoln Continental (2017-2020)
- Mobility Ventures MV-1 (2015-2017)
- Ford Transit-250 (2015-2020)
- Ford Transit-150 (2015-2020)
- Ford Transit-350 HD (2015-2020)
- Ford Transit-350 (2015-2020)
- Ford Police Interceptor Utility (2013-2021)
- Ford Police Interceptor Sedan (2013-2019)
- Cadillac ATS (2013-2015)
- Buick Allure (2010)
- Ford Explorer (2011-2021)
- Ford F-250 Super Duty (2011-2021)
- Ford F-350 Super Duty (2011-2021)
- Ford Mustang (2011-2021)
- Ford F-150 (2010-2021)
- Lincoln MKT (2010-2019)
- Ford Fusion (2010-2012)
- Suzuki Grand Vitara (2009-2010)
- Mazda 6 (2009-2013)
- Ford Flex (2009-2019)
- Lincoln MKS (2009-2016)
- Ford Taurus X (2008-2009)
- Pontiac Torrent (2008-2009)
- Mercury Sable (2008-2009)
- Ford Taurus (2008-2019)
- Mazda CX-9 (2007-2015)
- Lincoln MKZ (2007-2016)
- Lincoln MKX (2007-2018)
- Ford Edge (2007-2018)
- Saturn Aura (2007-2009)
- Suzuki XL-7 (2007-2009)
- Mazda MX-5 Miata (2006-2015)
- Cadillac CTS (2005-2007, 2014-2015)
For more than 110 years, Champion® has been a highly respected brand for spark plugs worldwide. From airplanes to high-performance race cars, Champion has developed spark plugs for almost every type of engine. Its century’s worth of experience and commitment has led to designs and optimizations that make Champion spark plugs perform better than the competition. This proven expertise and engineering has also been expanded to other maintenance products, including Champion filters, batteries, and lighting. All products are designed, manufactured, and tested in accordance with OE specifications to ensure a seamless fit and function. When it comes to quality, the customer is always a winner with Champion.
