Haldex 65437X - Valve Spg Brk Sr5
$9199
+$37.50 Core Deposit
Total price w/ core: $129.49
MSRP: $205.32
Save: $113.33
In stock
limited availability at this price!
. Learn more
HALDEX part description

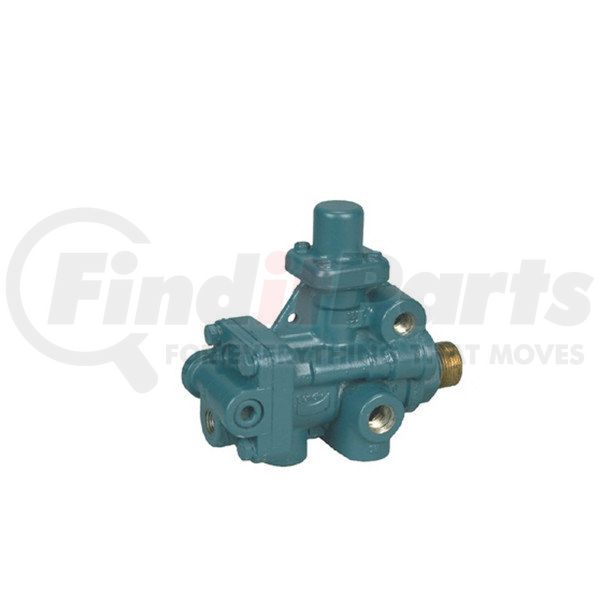

HALDEX TRAILER SPRING BRAKE VALVE
Remanufactured Bendix® SR-5 with Anti-Compounding- Meets FMVSS-121 requirements
- Used on trailers with dual air brake systems
- Permits the use of a single reservoir on the trailer
- Approximate Weight 3 lbs.
- Available CoreFree™, order part number 65437RX
- Repair kit not available
Technical Specifications:
| Supply (1): | 1/4" in. |
| Delivery (4): | 3/8" in. |
| Reservoir (1): | 3/4" in. |
| Service (2): | 1/4" in. |
| Approximate Weight: | 3 lbs. |
| Core Group: | 117SR4 |
Haldex Bendix® SR-5 Trailer Spring Brake Valve
The Haldex Bendix® SR-5 trailer spring brake valve is a premium-quality replacement to your air brake system’s worn or faulty valve. Rebuilt by a brand with a solid reputation in the manufacture of air brake system components, this remanufactured valve offers a direct fit and functionality at a more affordable price.
Features & Benefits
- Specifically rebuilt for use on trailers with dual air brake systems
- Has the ability to release the spring brakes at least once prior to their application
- Stringently evaluated to ensure reliability, performance, and high efficiency
- All Haldex valves are designed for trouble-free air brake system repair and maintenance
Product Description
Remanufactured Bendix® SR-5 with Anti-Compounding
Application Summary
Trailer
Features & Benefits
- Specifically rebuilt for use on trailers with dual air brake systems
- Has the ability to release the spring brakes at least once prior to their application
- Stringently evaluated to ensure reliability, performance, and high efficiency
- All Haldex valves are designed for trouble-free air brake system repair and maintenance
Haldex Bendix® SR-5 Trailer Spring Brake Valve
The Haldex Bendix® SR-5 trailer spring brake valve is a premium-quality replacement to your air brake system’s worn or faulty valve. Rebuilt by a brand with a solid reputation in the manufacture of air brake system components, this remanufactured valve offers a direct fit and functionality at a more affordable price.
Product Attributes
| Delivery Port Diameter | 4 @ 3/8 in. |
| Freight Class | 70 |
| Reservoir Port Diameter | 3/4 in. |
| Service Port Diameter | 1/4 in. |
| Supply Port Diameter | 1/4 in. |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8481200070 |
| Harmonized Tariff Code (HTS) | 8481200070 |
| Remanufactured Part | Y |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 24 MO, 200,000 MI=Air Compressors EL850(4), EL1300(5), EL1600(5), Tu-Flo 501/550(4), Tu-Flo 700/750(4), 12 MO, 100,000 MI=All Other REMAN Products Not Listed(13). See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653025629 |
| VMRS Code | 013010050 |
HALDEX 65437X Cross Reference
We have 2 alternatives for the 65437X by HALDEX:
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
