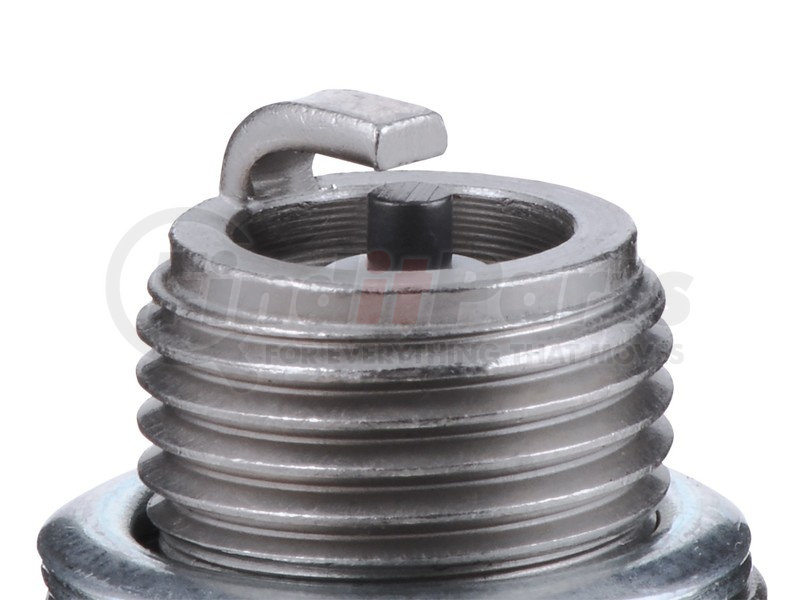

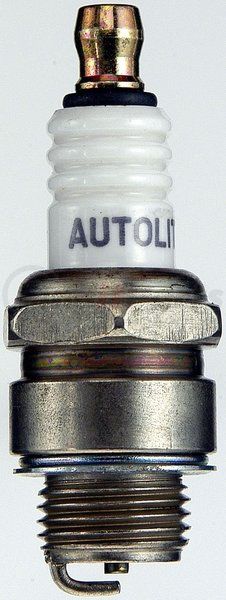

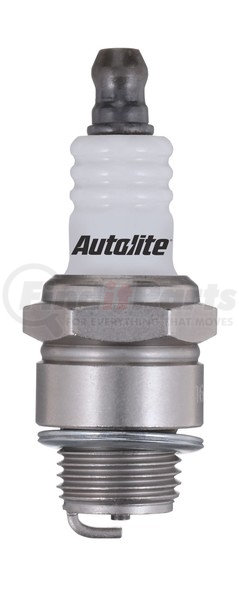

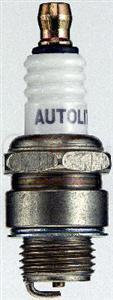

Name: Autolite 258 Copper Non-Resistor Spark Plug
SKU: 258
Price: 1.74 USD
Availability: InStock

AUTOLITE part description

Heat Range Chart Location:A7
Hex:3/4"
Reach:3/8"
Resistor/Non-Resistor/Suppressor:Non Resistor
Seat:Gasket
Thread Diameter:14MM
Tip:Standard
Principal Applications:BRIGGS & STRATON, CHRYSLER POWER BEE, CLINTON, HONDA, KAWASAKI, KOHLER, KOMATSU ZENOAU, LAUSON, O & R, POWER BEE, POWER PRODUCTS, ROBIN for Subaru, SACHS, TECUMSEH, WISCONSIN-ROBIN (Power Equipment Engines)

Product Description

Autolite 258 Copper Non-Resistor Spark Plug

Application Summary

ALL SEASONS EQUIPMENT Equipment, ALL SEASONS EQUIPMENT Pump Water, BELL GROUP Construction Equipment, GENERAL EQUIPMENT Construction Equipment, GLOBAL MARINE PUMPOUT Pump Marine Waste, Kawasaki KAF620 Mule 2500 (1994-1995), Kawasaki KAF620 Mule 2500 (1997-2000), Kawasaki KAF620 Mule 2510 4x4 (1993), Kawasaki KAF620 Mule 2510 4x4 (1995), Kawasaki KAF620 Mule 2510 4x4 (1997-2000), Kawasaki KAF620 Mule 2520 (1993), Kawasaki KAF620 Mule 2520 (1995), Kawasaki KAF620 Mule 2520 (1997-2000)

Features & Benefits

One-Piece terminal stud provides a reliable high voltage electrical connection
High alumina multi-rib insulator helps prevent flash-over which can lead to misfires
Heat-fused glass composite resistor center seal provides high performance EMI noise suppression and a 100 percent leak-proof seal
Solid copper core center electrode provides optimal thermal and electrical conductivity for better performance in all driving conditions
High nickel alloy side electrode resists electrical and chemical wear providing excellent durability
2 year limited warranty

Spark, plug, spark plug, small engine, Autolite

Product Attributes

Resistance	1 82
Ground Electrode Tip Design	Tapered
Ground Electrode Core Material	Nickel
Electrical Terminal Type	Stud
Center Electrode Core Material	Copper
Center Electrode Tip Material	Nickel
Pre-Gap Size	0.025 IN
Pre-Gap Size	0.6 MM
Ground Electrode Quantity	1
Hex Size	3/4 IN
Hex Size	19 MM
Seat Type	Flat
Reach	0.374 IN
Reach	9.5 MM
Thread Diameter	14 MM
Insulator Material	Ceramic
Resistor Type	No
Ground Electrode Tip Material	Nickel
9608	Standard
9805	Short Projection

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8511100000
Warranty Time	24
Warranty Time UOM	MO
UPC	00009100253316
UNSPSC	26101732

Part Interchanges

AUTOLITE 258 Cross Reference

We have 45 alternatives for the 258 by AUTOLITE:

Fits Vehicles

Kawasaki KAF620 Mule 2520 (1993, 1995, 1997-2000)
Kawasaki KAF620 Mule 2510 4x4 (1993, 1995, 1997-2000)
Kawasaki KAF620 Mule 2500 (1994-1995, 1997-2000)

Autolite® allows you to go anywhere—without delay—with its comprehensive spark plugs offerings. Although it was initially established as a buggy lamp manufacturer in 1911, it slowly gained recognition as an ignition expert when it developed and introduced the very first Autolite spark plug in 1935. Over the years, the company has reached greater heights, producing and supplying spark plugs and other ignition parts to some of the major automotive manufacturers, such as Chrysler, Studebaker, Willys, and Packard. Headquartered in Lake Forest, Illinois, Autolite is a proud member of the FRAM Group, North America's largest and most diversified group servicing the vehicle replacement parts market.
