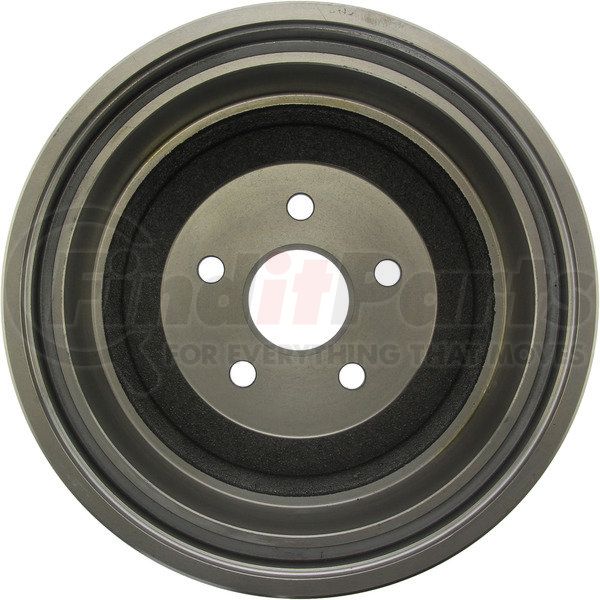

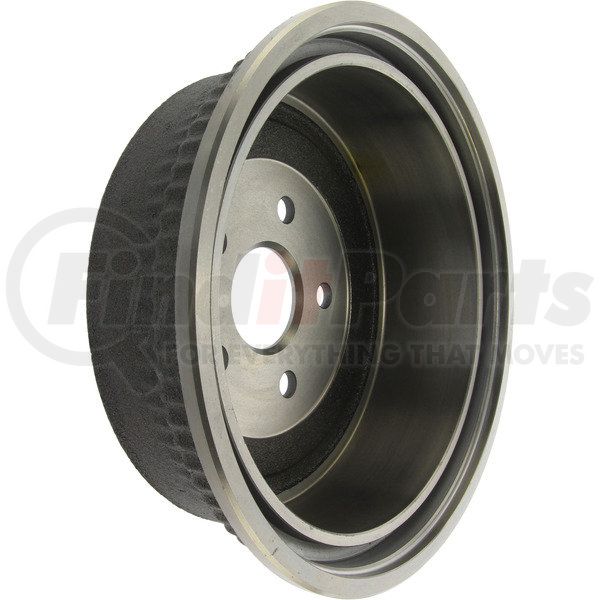

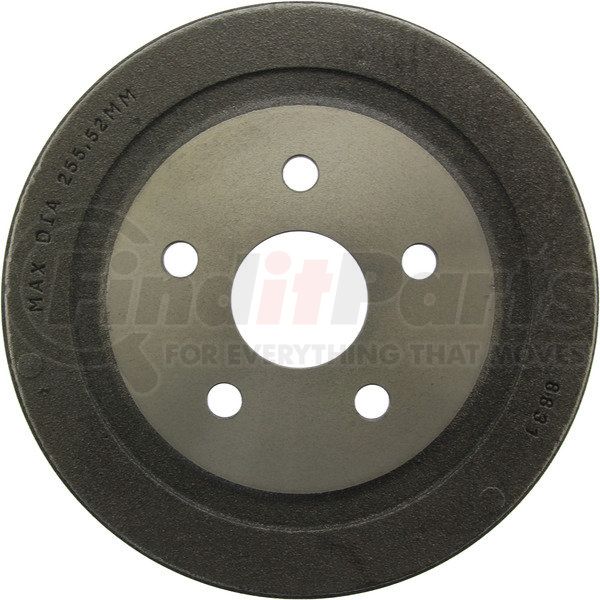

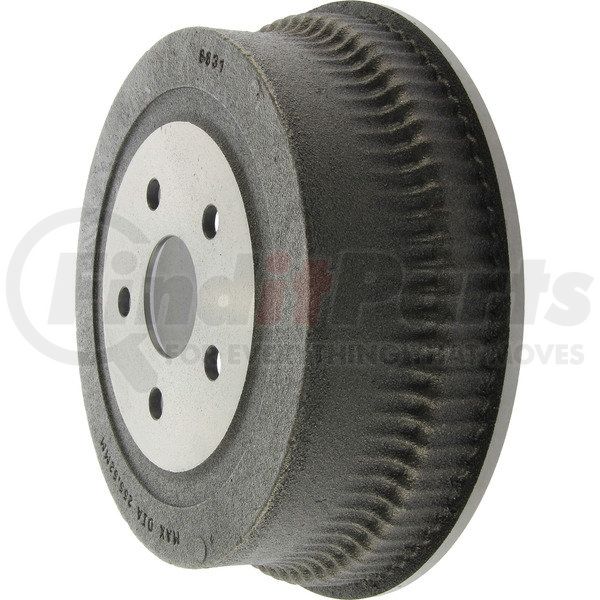

Centric 123.61010 - Standard Brake Drum
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
| Make | Ford, Mercury |
| Model | Caliente, Comet, Cougar, Country Squire, Cyclone, Fairlane, Falcon, Falcon Sedan Delivery, Maverick, Montego, Mustang, Ranchero, Torino, Villager, Voyager |
| Year | 1962 |
Product Description
C-Tek Standard Brake Drum
Application Summary
Ford Country Squire 1970-1969, Fairlane 1970-1962, Falcon 1970-1965, Falcon Sedan Delivery 1965, Maverick 1973-1971, Mustang 1973-1964, Ranchero 1971-1963, Torino 1971-1968, Mercury Caliente 1967-1964, Comet 1969-1963, Comet 1973-1971, Cougar 1972-1967, Cyclone 1971-1964, Montego 1971-1968, Villager 1965-1963, Villager 1967, Voyager 1967-1966
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
C-Tek; Centric; Standard brake rotor; standard brake drum; Centric standard Drums; Centric c-tek standard brake drum
Product Attributes
| Maximum Brake Diameter (Discard) | 256.300 MM |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 314.960 MM |
| Outer Cooling Fins | Yes |
| Mounting Hole Diameter | 15.494 MM |
| Nominal Drum Diameter | 254.000 MM |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Friction Surface Width [cntrc] In | 2.810 |
| Friction Surface Width [cntrc] Mm | 71.374 |
| Height [cntrc] In | 3.810 |
| Height [cntrc] Mm | 96.774 |
| Hub Hole / Register [cntrc] In | 2.430 |
| Hub Hole / Register [cntrc] Mm | 61.722 |
| Mounting Type [cntrc] | Floating |
| Weight [cntrc] Kgs | 7.955 |
| Weight [cntrc] Lbs | 17.500 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890052180 |
Fits Vehicles
- Mercury Villager (1963-1965, 1967)
- Mercury Voyager (1966-1967)
- Mercury Montego (1968-1971)
- Mercury Cyclone (1964-1971)
- Mercury Cougar (1967-1972)
- Mercury Comet (1963-1969, 1971-1973)
- Mercury Caliente (1964-1967)
- Ford Torino (1968-1971)
- Ford Ranchero (1963-1971)
- Ford Mustang (1964-1973)
- Ford Maverick (1971-1973)
- Ford Falcon Sedan Delivery (1965)
- Ford Falcon (1965-1970)
- Ford Fairlane (1962-1970)
- Ford Country Squire (1969-1970)
