Name: Centric 130.83010 Premium Brake Master Cylinder
SKU: 13083010
Price: 252.49 USD
Availability: InStock

CENTRIC part description

Make	International
Model	1654, 1724, 1754, 1824, 1854, 1924 S, 2276 S, 2375 S, F1924, F1954, S1624, S1654, S1723, S1724, S1753, S1754, S1823, S1824, S1853, S1853FC, S1854, S1924, S1925, S1954, S1955, S2100, S2125, S2155, S2300, S2375, S2500, S2524, S2554
Year	1973

Product Description

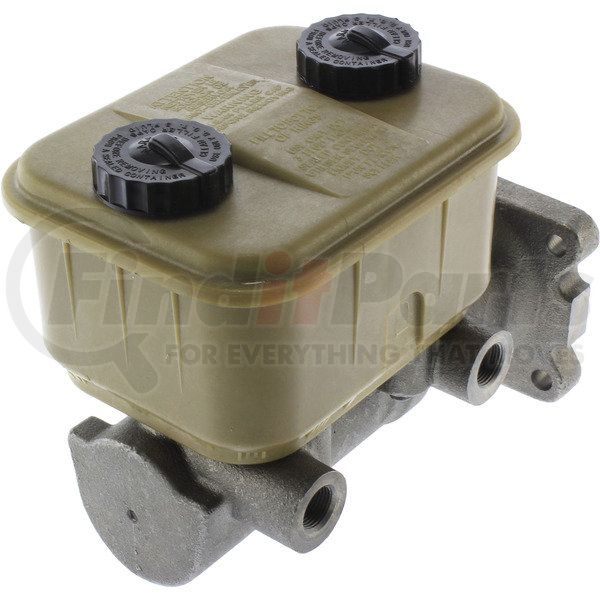

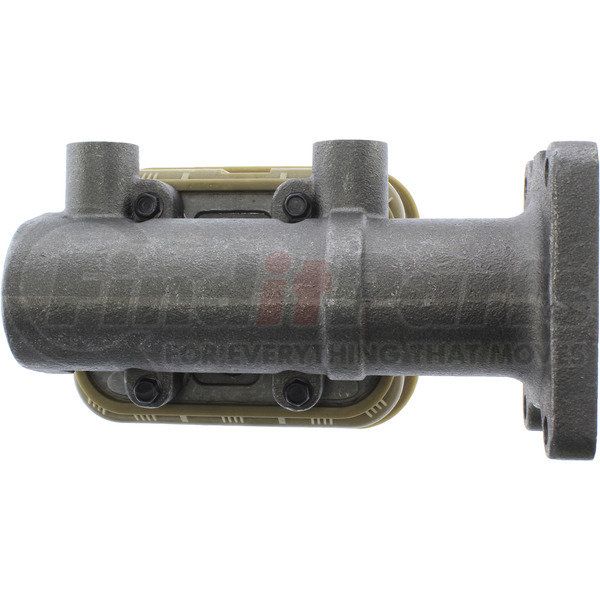

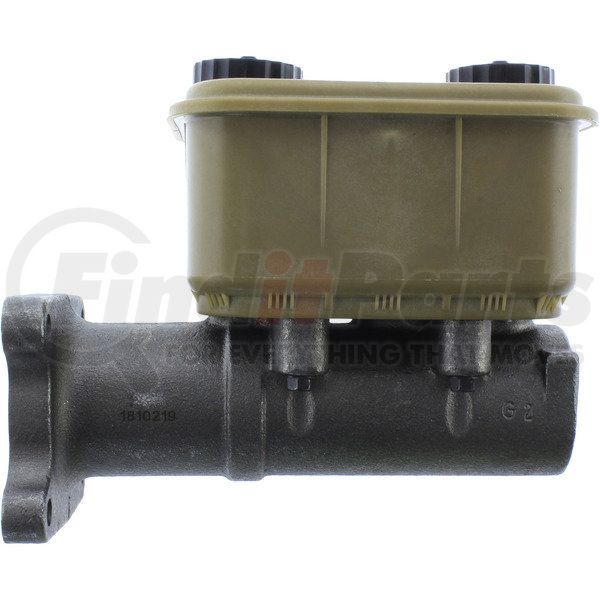

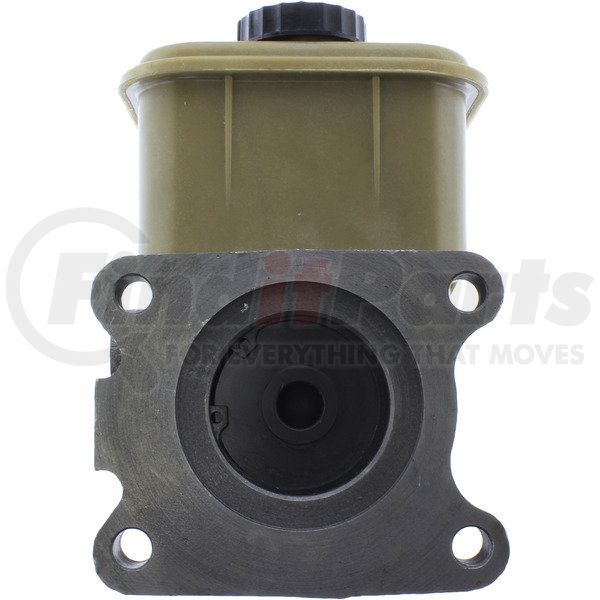

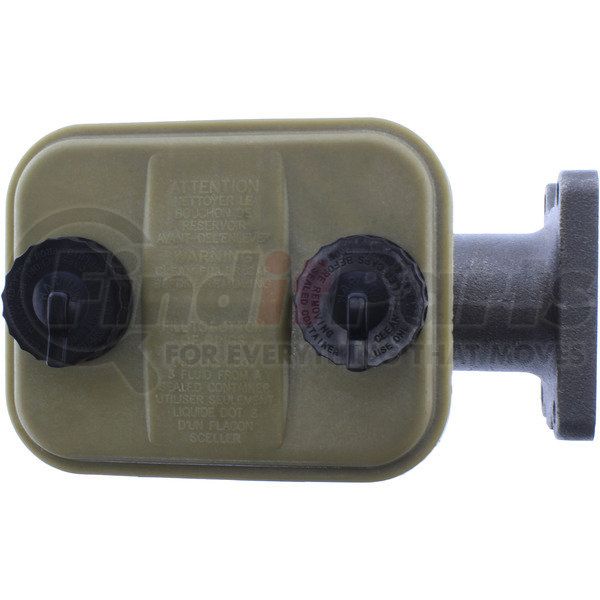

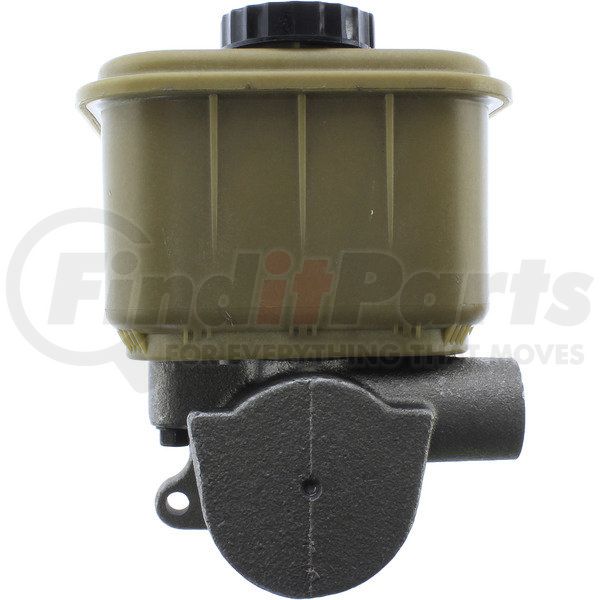

Centric Premium Brake Master Cylinder

Application Summary

International 1654 1984-1983, 1724 1985-1979, 1754 1985-1979, 1824 1984-1979, 1854 1985-1979, 1924 S 1982-1979, 1925 S 1982-1979, 1954 1982-1979, 1955 1982-1979, 2276 S 1985-1983, 2375 S 1985-1983, F1924 1981-1979, F1954 1982-1979, S1624 1982-1980, S1654 1984, S1723 1985-1980, S1724 1984-1980, S1753 1985-1984, S1754 1985-1981, S1823 1982-1980, S1824 1985-1980, S1853 1985-1981, S1854 1985-1981, S1924 1982-1980, S1925 1982-1980, S1954 1985-1981, S1955 1985-1981, S2125 1981-1980, S2155 1985-1984, S2375 1984, S2524 1982-1980, S2554 1985-1981

Features & Benefits

Match O.E. parts in quality; configuration and fitment. Complete with reservoirs; switches and floats. Original aluminum casting body design where applicable. Manufactured under the highest quality standards by OEM and OES manufacturers

Centric; CentricParts; Centric Parts; Centric Master Cylinder; Centric Parts Master Cylinder

Product Attributes

Reservoir Material	Plastic
Mounting Hardware Included	No
Mounting Hole Quantity	4
Master Cylinder Bore Diameter	2.000 IN
Brake Booster Included	No
Master Cylinder Cap Included	Yes
Master Cylinder Material	Cast Iron
Pushrod Included	No
Reservoir Included	Yes
Reservoir Type	Single
Primary Outlet Thread Diameter	0.750 IN
Secondary Outlet Thread Diameter	0.6875 IN
Bleeder Hoses Included	No
Port Quantity	2
Mounting Bracket Included	No
9275	18 IN
9276	18 IN
Bore Type	Straight
9425	50.800 MM
9556	11/16"-18
9557	3/4"-18
9566	Inverted
9567	Inverted
9568	50.800 MM
9570	Removable
Boss, Nipple Or Port: Front, Left: #a [cntrc]	1 1/16"-18 inv
Boss, Nipple Or Port: Rear: #a [cntrc]	3/4"-18 inv
Primary Outlet Flare Type [cntrc]	Inverted
Publication Bore [cntrc]	2"
Push Rod: Length / Depth [cntrc] In	0.575
Secondary Outlet Flare Type [cntrc]	Inverted
Weight [cntrc] Kgs	5.95
Weight [cntrc] Lbs	13.1

Additional Information

Country of Origin (Primary)	DE
Harmonized Tariff Code (HTS)	8413919050
NAFTA Preference Criterion Code	B
UPC	00805890011255

Fits Vehicles

International 1654 (1983-1984)
International F1954 (1979-1982)
International F1924 (1979-1981)
International 1955 (1979-1982)
International 1954 (1979-1982)
International 1925 S (1979-1982)
International 1924 S (1979-1982)
International 1854 (1979-1985)
International 1824 (1979-1984)
International 1754 (1979-1985)
International 1724 (1979-1985)
International 2375 S (1983-1985)
International 2276 S (1983-1985)
International S2554 (1981-1985)
International S2375 (1984)
International S2524 (1980-1982)
International S2155 (1984-1985)
International S2125 (1980-1981)
International S1955 (1981-1985)
International S1954 (1981-1985)
International S1925 (1980-1982)
International S1924 (1980-1982)
International S1854 (1981-1985)
International S1853 (1981-1985)
International S1824 (1980-1985)
International S1823 (1980-1982)
International S1754 (1981-1985)
International S1753 (1984-1985)
International S1724 (1980-1984)
International S1723 (1980-1985)
International S1654 (1984)
International S1624 (1980-1982)
