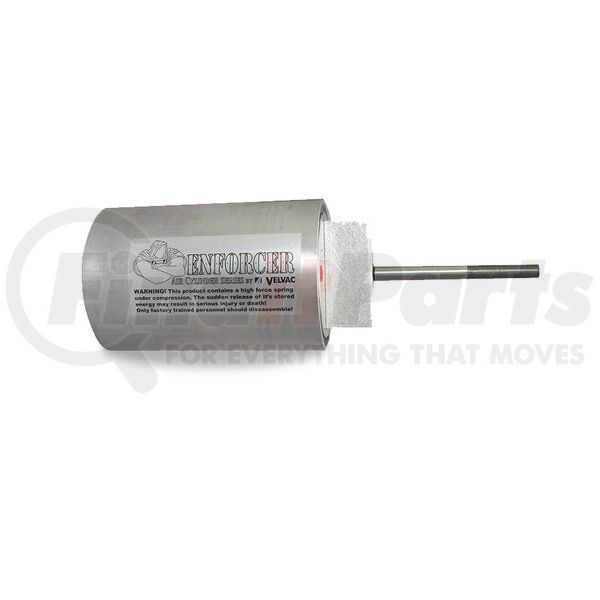

Name: Velvac 100613 Tailgate Cylinder, 6" Bore, 4.38" Stroke
SKU: 100613
Price: 398.99 USD
Availability: InStock

VELVAC part description

Item Overview:

Enforcer Air Cylinder Series

Machined from 6061 series aluminum, 5/8" diameter 303 stainless steel shaft with 5/8" - 18 threads, Nitrile "O" rings and a UHMW polyethylene wear band
Direct replacements to Haldex and MGM
Standard operating pressure 100 psi
90psi minimum to 150 psi maximum

Specifications:

Stroke	4.38"
Retracted Length	18.62"
Extended Length	23"
Cylinder Type	Spring Return
Style	Tailgate Cylinders
Diameter	6"
Thrust at 100 psi	1417 lbs
Draw at 100 psi	1400 lbs

Velvac Tailgate Cylinder

The Velvac tailgate cylinder restores the functionality of your rig’s tailgate. This component meets the industry’s applicable quality and safety standards to ensure dependable performance over a long period.

Features & Benefits

The perfect solution to your tailgate needs
Directly replaces MGM and Haldex tailgate cylinder
Machined from high-quality 6061 series aluminum
Features nitrile "O" rings and a UHMW polyethylene wear band
Standard operation pressure is 100 psi—90psi minimum to 150psi maximum

Product Description

Tailgate Cylinder

Product Attributes

Cylinder Type	Spring Return
Diameter	6"
Draw At 100 Psi	1400 lbs
Extended Length	23"
Retracted Length	18.62"
Stroke	4.38"
Style	Tailgate Cylinders
Thrust At 100 Psi	1417 lbs

VELVAC 100613 Cross Reference

We have 1 alternatives for the 100613 by VELVAC:

VEL100613

Velvac® is a leading manufacturer of air brake and valve components for heavy duty trucks. Founded in 1934 as Vacuum Power Equipment Company, the company has grown tremendously over the years with new products included in its catalog, such as mirrors, cameras and vision systems, fuel system products, and accessories. Six years after Vacuum Power Equipment Company opened its doors for business, its name was changed to "Velvac" because of the popularity of its Velvet Vacuum Brakes brand. Today, Velvac continues to expand and upgrade its broad product categories to meet its customers' increasing demands. Its main headquarters is in New Berlin, WI, and its primary manufacturing facility is in Reynosa, Mexico.
