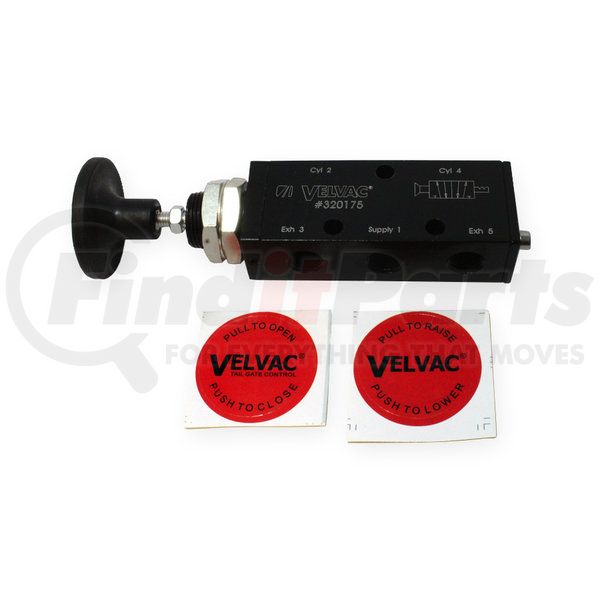

Name: Velvac 320175 Four-Way Push/Pull Valve, 2-Position Valve
SKU: 320175
Price: 54.49 USD
Availability: InStock

VELVAC part description

Item Overview:

Nitrile seals for long cycle life.
High impact knobs.
Balanced spool design.
Operating temperature range from -40°F to +180°F.
Stainless steel hardware.
Aluminum shaft with delrin detent ring provides easy identification of valve position.
Threaded aluminum mounting boss for 1" diameter through hole mounting (nuts included).
(3) 9/32" diameter body mounting holes.
(5) 1/4" - 18 FPT ports.
Normal operating pressure 100 psi.
Includes two faceplates: Pull to Open/Push to Close. Pull to Raise/Push to Lower.

Applications for valves: Two position valve operates any double acting air cylinder. Three position valve operates systems where full air or vacuum pressure must be isolated.

Specifications:

Product	Four-Way Push/Pull Valves
Note	Applications for valves
Category	Air Cylinder Control Valves

Velvac 4-Way Push/Pull Valve

The Velvac 4-way push/pull valve is a two-position valve that activates any double acting air cylinder. It comes with balanced spool design and stainless-steel hardware for durability and outstanding performance.

Features & Benefits

Fitted with high-impact knobs and nitrile seals for long service life
Works well within -40°F to +180°F operating temperature range
With Pull to Open/Push to Close and Pull to Raise/Push to Lower faceplates
Easy-to-identify valve position with its aluminum shaft featuring Delrin® detent ring
Includes nuts and threaded aluminum mounting boss for 1-inch diameter through hole mounting

Product Description

Four-Way Push/Pull Valve

Features & Benefits

Fitted with high-impact knobs and nitrile seals for long service life
Works well within -40°F to +180°F operating temperature range
With Pull to Open/Push to Close and Pull to Raise/Push to Lower faceplates
Easy-to-identify valve position with its aluminum shaft featuring Delrin® detent ring
Includes nuts and threaded aluminum mounting boss for 1-inch diameter through hole mounting

Product Attributes

Switch Position Quantity	2
Category	Air Cylinder Control Valves
Product	Four-Way Push/Pull Valves

Part Interchanges

VELVAC 320175 Cross Reference

We have 2 alternatives for the 320175 by VELVAC:
