Name: Truck-Lite 81510 Super 81 4 x 4 in. Square LED Work Light, Black, 8 Diode, 1890 Lumen, Blunt Cut, 12V to 24V
SKU: 81510
Price: 364.99 USD
Availability: InStock

TRUCK-LITE part description

Features and Benefits

Super Bright Output - Up To 2850 Warm Lumens!
Heavy-Duty Housing Is Constructed Of Die Cast Aluminum
Lens Manufactured Of Impact Resistant Polycarbonate
Circuitry Protected By Triple-Pass Conformal Coating

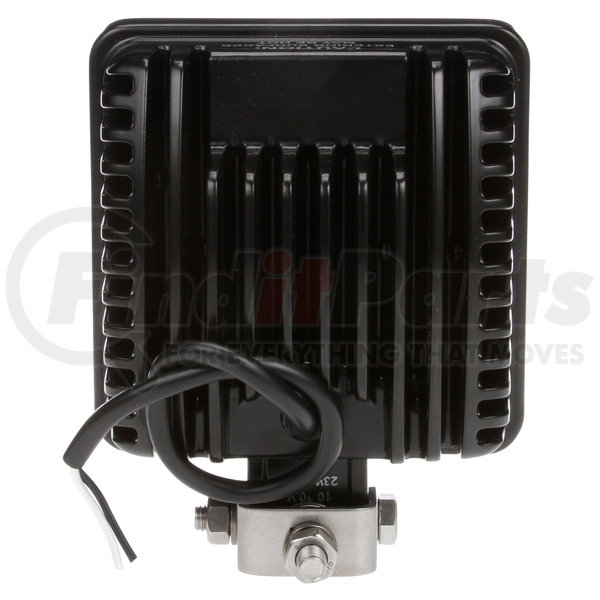

Rear Fins Keep Heat Away From LEDs And Lamp Circuity, Allowing For Increased Light Output And Lamp Longevity
White LEDs Offer Daylight-Like Visibility
Current Regulated Switching Circuit
18 Gauge ADR Compliant Wires
ECE Reg 10-3 EMI Compliant
10V-30V Multi-Volt
SAE Voltage Spike Protected

Technical Specifications

Product Type	Work Light
Packaging Type	Standard
KIT (Y/N)	No
Series	Super 81
VMRS	034-006-031
Warranty	5-Year
Total Height_INH	4.7
Total Height_MMT	119.38
Total Depth_INH	2.6
Total Depth_MMT	66.04
Total Width_INH	4.7
Total Width_MMT	119.38
Lumens_LM	1890
Plug Side One	Hardwired
Number of Wires	2
Lens Shape	Square
Lens Material	Polycarbonate
Lens Color	Clear
Sealed/Bulb Replaceable	Sealed
Voltage_VLT	12\|24
Number of Diodes/Bulbs	8
Mounting Connector Diameter_INH	0.313
Light Intensity_CP	3270
Lighting Technology	LED
Housing Color	Black
Plug Side Two	Blunt Cut
Mount Material	Stainless Steel
Beam Pattern	Work
Common Size	4"x4"
Mount Type	Stud
Lamp Connection	Hardwired
Wire Gauge	18
Current_AMP	2.04
Housing Material	Die-Cast Aluminum

Lighting Technology	LED
Voltage	12\|24
Size	4"x4"
Lens Material	Polycarbonate
Lens Color	Clear
Number Of Diodes/Bulbs	8
Connection/Plug Type	Hardwired

Product Description

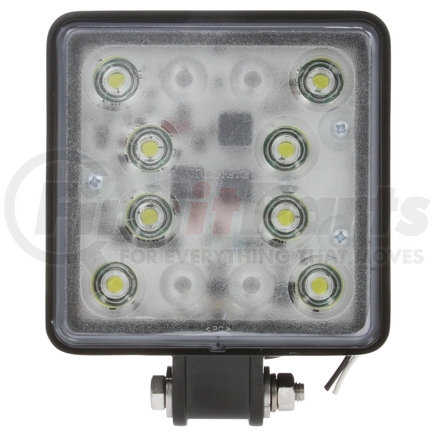

Super 81 4x4 in. Square LED Work Light, Black, 8 Diode, 1890 Lumen, Blunt Cut

Features & Benefits

Super Bright Output - Up To 2850 Warm Lumens!
Heavy-Duty Housing Is Constructed Of Die Cast Aluminum
Lens Manufactured Of impact-resistant Polycarbonate
Circuitry Protected By Triple-Pass Conformal Coating
Rear Fins Keep Heat Away From LEDs And Lamp Circuity, Allowing For Increased Light Output And Lamp Longevity
White LEDs Offer Daylight-Like Visibility
Current Regulated Switching Circuit
18 Gauge ADR Compliant Wires
ECE Reg 10-3 EMI Compliant
10V-30V Multi-Volt
SAE Voltage Spike Protected

Product Attributes

Bulb Technology	LED
Common Size	4x4 IN
Current Amp	2.04
High Output	No
Housing Color	Black
Housing Material	Die-Cast Aluminum
Kit	No
Lamp Connection	Hardwired
Lens Color	Clear
Lens Material	Polycarbonate
Lens Shape	Square
Light Intensity Cp	3270
Lumens	1890
Mount Material	Stainless Steel
Mount Type	Stud
Number Of Diodes/bulbs	8
Plug Side One	Hardwired
Plug Side Two	Blunt Cut
Sealed/bulb Replaceable	Sealed
Series	Super 81
Voltage	12, 24
Wire Quantity	2

Part Interchanges

TRUCK-LITE 81510 Cross Reference

We have 2 alternatives for the 81510 by TRUCK-LITE:
