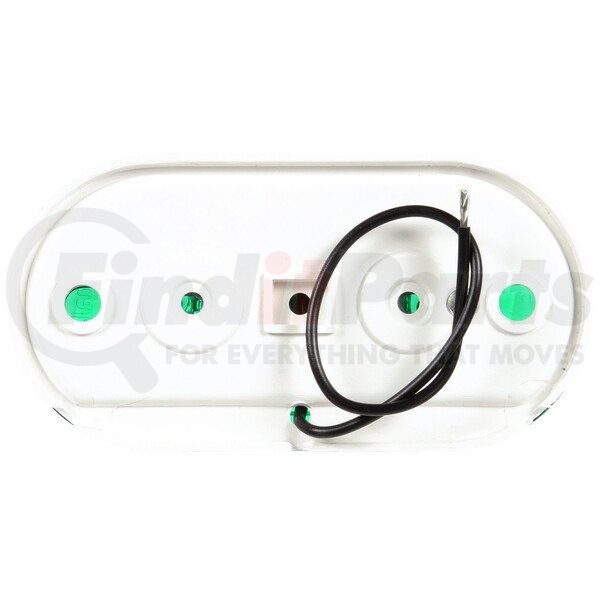

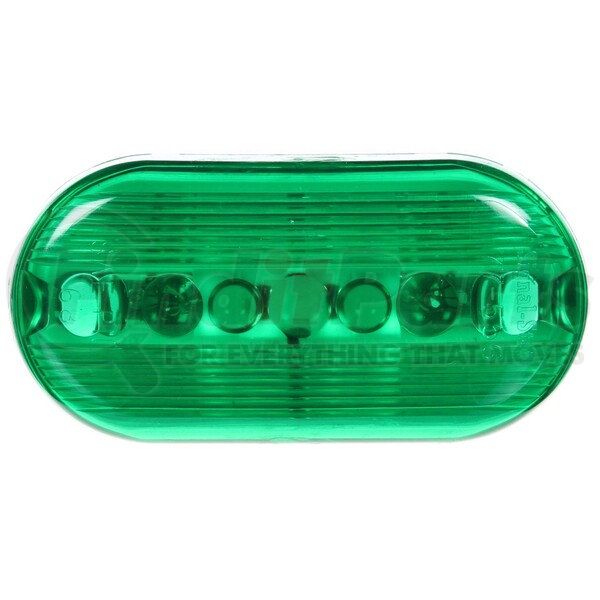

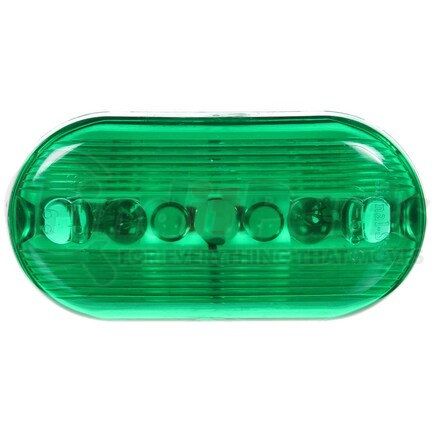

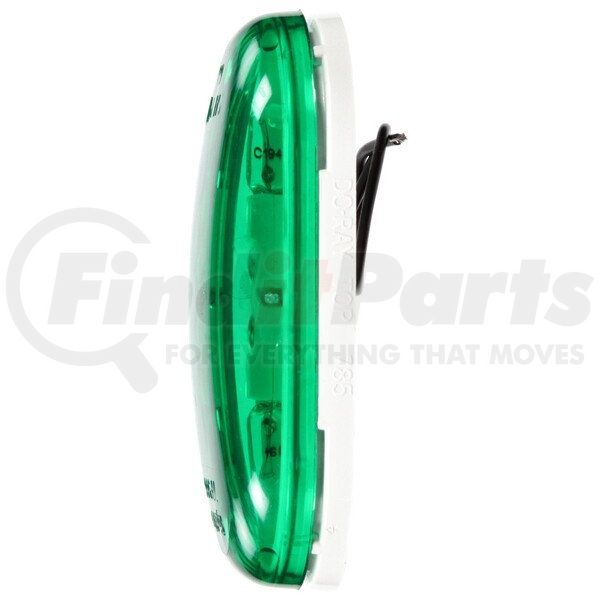

Truck-Lite 1259G - Signal-Stat, Incandescent, Green Oval, 2 Bulb, Marker Clearance Light, P2, 2 Screw, Hardwired, Stripped End, 12V
- Part Number
- 1259G
- Manufacturer
- TRUCK-LITE
- Description
-
Signal-Stat, Incandescent, Green Oval, 2 Bulb, Marker Clearance Light, P2, 2 Screw, Hardwired, Stripped End, 12V
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
TRUCK-LITE part description
Features and Benefits
- High impact polycarbonate housing protects against rust & corrosion,Snap-on lens permits easy bulb & lens replacement,Two bulb design - if one burns out, the other remains lighted
Technical Specifications
| Compliance Family | FMVSS 108|CMVSS108|DOT|SAE |
| Product Type | Marker Clearance Light |
| Packaging Type | Standard |
| KIT (Y/N) | No |
| Series | Signal-Stat |
| Standards Met | P2|PC |
| VMRS | 034-004-021 |
| Warranty | 1-Year |
| Total Height_INH | 2 |
| Total Height_MMT | 50.8 |
| Total Depth_INH | 1 |
| Total Depth_MMT | 25.4 |
| Total Width_INH | 4 |
| Total Width_MMT | 101.6 |
| Plug Side One | Hardwired |
| Number of Wires | 1 |
| Lens Height_INH | 2 |
| Lens Shape | Oval |
| Lens Material | Acrylic |
| Lens Color | Green |
| Reflectorized (Y/N) | No |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Voltage_VLT | 12 |
| Number of Diodes/Bulbs | 2 |
| Lens Width_INH | 4 |
| Lighting Technology | Incandescent |
| Diamond Shell (Y/N) | No |
| Plug Side Two | Stripped End |
| Common Size | 2"x4" |
| Mount Type | 2 Screw |
| Current Major_AMP | 0.27 |
| Lamp Connection | Hardwired |
| Wire Gauge | 18 |
| Housing Material | ABS |
| Lighting Technology | Incandescent |
| Voltage | 12 |
| Size | 2"x4" |
| Lens Material | Acrylic |
| Lens Color | Green |
| Number Of Diodes/Bulbs | 2 |
| Connection/Plug Type | Hardwired |
Features & Benefits
- High-impact polycarbonate housing protects against rust and corrosion,Snap-on lens permits easy bulb and lens replacement,Two bulb design - if one burns out, the other remains lighted
Product Attributes
| Housing Material | ABS |
| Bulb Technology | Incandescent |
| Common Root | 1259G |
| Diamond Shell | No |
| Kit | No |
| Lamp Connection | Hardwired |
| Lens Color | Green |
| Lens Height | 2 IN |
| Lens Material | Acrylic |
| Lens Shape | Oval |
| Lens Width | 4 IN |
| Mount Type | Bracket Mount |
| Number Of Diodes/bulbs | 2 |
| Number of Wires | 1 |
| Reflectorized | No |
| Sealed/bulb Replaceable | Bulb Replaceable |
| Series | Signal-Stat |
| Standards Met | P2, PC |
| Total Depth | 1 |
| Total Height | 2 |
| Total Length | 0.27 |
| Total Width | 4 |
| Voltage | 12 |
Truck-Lite® is a world-renowned manufacturer of mirrors, heavy-duty forward and signal lighting, trailer harnesses, and other safety and visibility-enhancing products. Its main headquarters is located in Falconer, NY, and it maintains ten more facilities across North America and Europe. The company may have started small as a sealed lighting manufacturer in 1955. But it has grown tremendously over the years—in fact, it introduced a series of firsts including the first sealed lighting products, first LED S/T/T lamps, and first forward lighting. Being first in product development has sure paved the way for Truck-Lite to become a successful business today.
