Bendix K073074 - FCS-9700 Fan Clutch Solenoid, Service New
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
BENDIX part description
BENDIX® FAN CLUTCH SOLENOID
| Mounting: | Ø .440 IN |
| Connector Type: | Metri-Pack 150 Series 2-Way Sealed Connector (Male) |
| Product Type: | Stand-Alone |
| Operation: | NC - Normally Closed (Black) |
| Supply Port 1: | 1/4 PTC |
| Delivery Port: | 1/4 PTC |
| Operating Voltage Range: | 9 VDC -16 VDC |
| Operating Pressure Range: | 60-150 PSI |
| Inlet Orifice: | Ø .045 IN |
| Exhaust Orifice: | Ø .047 IN |
| Flyback Diode: | 1N4004 |
| Resistance: | 38 ± 2 Ohms (at 70°F) |
| Maximum Operating Temperature: | 221 °F (105 °C) |
| Minimum Operating Temperature: | -40 °F (-40 °C) |
| Cautionary Notes: | Mount with the exhaust facing in. a downward or horizontal direction. Do not cover or paint exhaust. Exhaust port(s) must have a minimum of 10mm clearance from all obstructions. |
| Bracket Orientation: | Left |
Bendix Fan Clutch Solenoid Valve
The Bendix fan clutch solenoid valve is a low air flow solenoid valve designed primarily to control the fan clutch. Because of this crucial function, this valve is manufactured following stringent processes to guarantee the highest level of quality and performance.
Features & Benefits
- Made of premium-quality materials to withstand harsh operating conditions
- Stringently evaluated to ensure the highest level of quality and efficiency
| Product Type | Solenoid |
| Valve Type | FCS-9700 |
Product Description

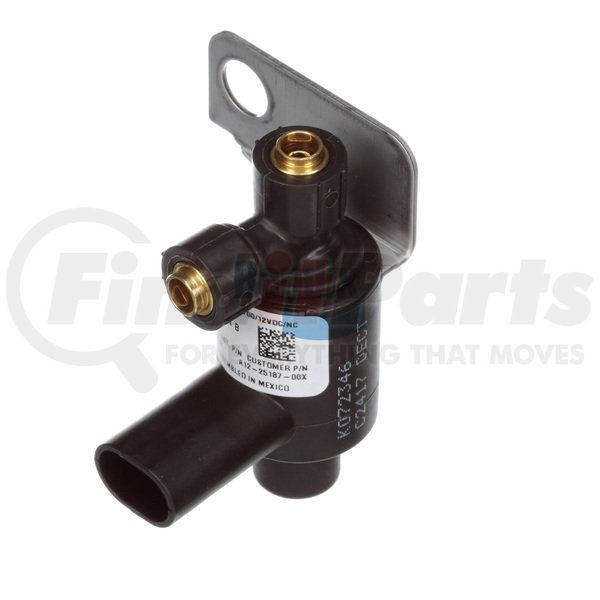

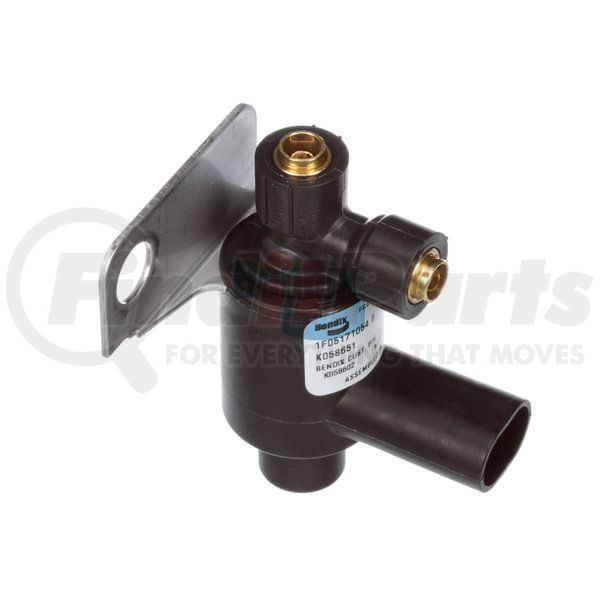

Fan Clutch Solenoid
Courtesy of Bendix – All rights reserved
Product Attributes
| Gross Weight | 0.160 KG |
| Market Indicator | Aftermarket (New) |
| Net Weight | 0.160 KG |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200060 |
| VMRS Code | 042003024 |
