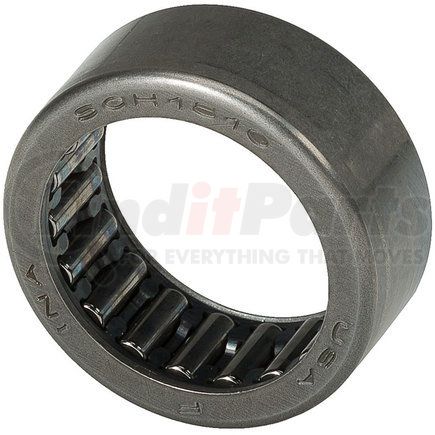

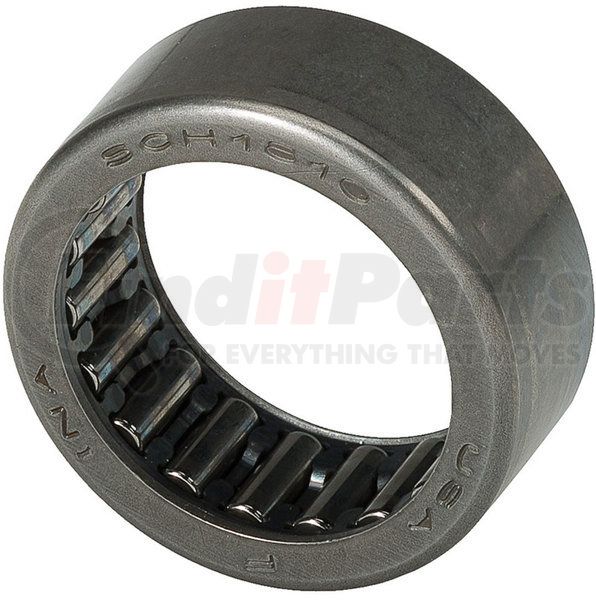

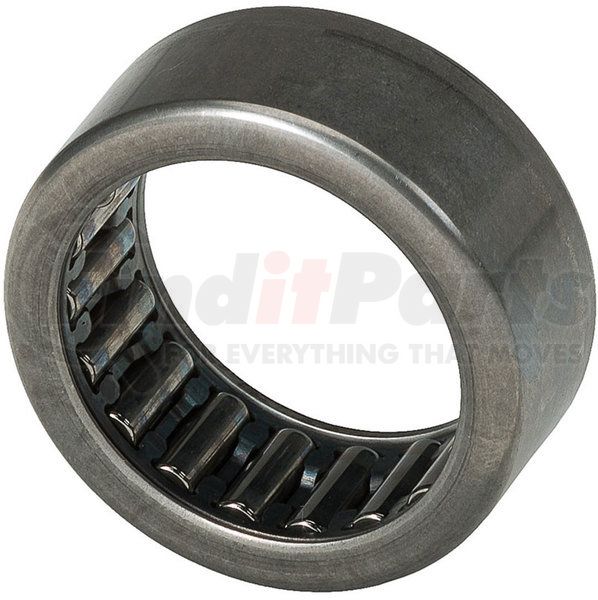

Name: National Seals SCH1810 Needle Bearing
SKU: sch1810
Price: 21.49 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

A full line of premium oil seals and bearings : • Premium bearing design matches OEM specifications

• Precision manufactured using premium steel grades for outstanding durability and performance

• Available in both caged design and full complement
Specifications

NEEDLE: Part Description: Needle Bearing

Bore (Inch): 1.1319

Bore (MM): 28.7500

Outside Diameter (Inch): 1.5000

Outside Diameter (MM): 38.1000

Width (Inch): 0.6252

Width (MM): 15.8800

Type: J

Shaft Diameter Max (Inch): 1.1319

Shaft Diameter Max (MM): 28.7503

Shaft Diameter Min (Inch): 1.1314

Shaft Diameter Min (MM): 28.7376

Housing Diameter Min (Inch): 1.5000

Housing Diameter Min (MM): 38.1000

Housing Diameter Max (Inch): 1.5010

Housing Diameter Max (MM): 38.1254
Applications

PASSENGER CAR & LIGHT TRUCK

Chevrolet Blazer 1990-1988

Chevrolet K1500 1990-1988

Chevrolet K2500 1990-1988

Chevrolet K3500 1989-1988

Chevrolet S10 1990-1983

Chevrolet S10 Blazer 1990-1983

Chevrolet V10 Suburban 1988

Chevrolet V1500 Suburban 1990-1989

Chevrolet V20 Suburban 1988

Chevrolet V2500 Suburban 1990-1989

Dodge Dakota 1993-1987

Dodge Ram 2500 2002-1994

Dodge Ram 3500 2002-1994

Dodge Ramcharger 1993-1988

Dodge W100 1989-1988

Dodge W150 1993-1988

Dodge W250 1993-1988

GMC Jimmy 1990-1988

GMC K1500 1990-1988

GMC K2500 1990-1988

GMC K3500 1989-1988

GMC S15 1990-1983

GMC S15 Jimmy 1990-1983

GMC V1500 Suburban 1990-1988

GMC V2500 Suburban 1990-1988

Jeep Cherokee 1996-1984

Jeep CJ7 1986-1984

Jeep Comanche 1992-1986

Jeep Grand Cherokee 1996-1993

Jeep Grand Wagoneer 1993

Jeep Wagoneer 1987-1984

Jeep Wrangler 1995-1987

Product Description

Needle Bearing

Application Summary

1988-1989 Dodge W100 (Drive: 4WD); 1988-1993 Dodge W150 (Drive: 4WD); 1988-1993 Dodge W250 (Drive: 4WD); 1994-2002 Dodge Ram 2500; 1994-2002 Dodge Ram 3500; 1987-1993 Dodge Dakota (Drive: 4WD); 1988-1993 Dodge Ramcharger (Drive: 4WD); 1984-1986 Jeep CJ7 (Drive: 4WD); 1984-1996 Jeep Cherokee (Drive: 4WD); 1986-1992 Jeep Comanche (Drive: 4WD); 1993-1996 Jeep Grand Cherokee (Drive: 4WD, AWD); 1993 Jeep Grand Wagoneer (Drive: 4WD); 1984-1987 Jeep Wagoneer (Drive: 4WD); 1987-1995 Jeep Wrangler (Drive: 4WD); 1988-1990 Chevrolet Blazer (Drive: 4WD); 1988-1990 Chevrolet K1500 (Drive: 4WD); 1988-1990 Chevrolet K2500 (Drive: 4WD); 1988-1989 Chevrolet K3500 (Drive: 4WD); 1983-1990 Chevrolet S10 Blazer (Drive: 4WD); 1983-1990 Chevrolet S10 (Drive: 4WD); 1988 Chevrolet V10 Suburban (Drive: 4WD); 1989-1990 Chevrolet V1500 Suburban (Drive: 4WD); 1988 Chevrolet V20 Suburban (Drive: 4WD); 1989-1990 Chevrolet V2500 Suburban (Drive: 4WD); 1988-1990 GMC K1500 (Drive: 4WD); 1988-1990 GMC K2500 (Drive: 4WD); 1988-1989 GMC K3500 (Drive: 4WD); 1988-1990 GMC V1500 Suburban (Drive: 4WD); 1988-1990 GMC V2500 Suburban (Drive: 4WD); 1988-1990 GMC Jimmy (Drive: 4WD); 1983-1990 GMC S15 Jimmy (Drive: 4WD); 1983-1990 GMC S15 (Drive: 4WD)

Features & Benefits

RIGHT TYPE -- Needle bearings are application-specific for the repair occasion, using either caged or full complement designs
PREMIUM MATERIALS -- Precision manufactured using high-quality materials for outstanding durability and performance
OE-STYLE DESIGN -- Engineered to meet OE specifications
COMPREHENSIVE COVERAGE -- Industry-leading coverage for domestic and import applications
RIGOROUS TESTING?--?Comprehensive?testing throughout design and development processes by National engineers for quality you can count on

Product Attributes

Bore (inch)	1.1319 IN
Bore (mm)	28.7500 MM
Housing Diameter Max (inch)	1.5010 IN
Housing Diameter Max (mm)	38.1254 MM
Housing Diameter Min (inch)	1.5000 IN
Housing Diameter Min (mm)	38.1000 MM
Outside Diameter (inch)	1.5000 IN
Outside Diameter (mm)	38.1000 MM
Part Description	Needle Bearing
Shaft Diameter Max (inch)	1.1319 IN
Shaft Diameter Max (mm)	28.7503 MM
Shaft Diameter Min (inch)	1.1314 IN
Shaft Diameter Min (mm)	28.7376 MM
Type	J
Width (inch)	0.6252 IN
Width (mm)	15.8800 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8482500000
Harmonized Tariff Code (HTS)	8482500000
UPC	00724956858422

Part Interchanges

Fits Vehicles

GMC V2500 Suburban (1988-1990)
GMC V1500 Suburban (1988-1990)
GMC S15 (1983-1990)
GMC S15 Jimmy (1983-1990)
GMC K3500 (1988-1989)
GMC K2500 (1988-1990)
GMC K1500 (1988-1990)
GMC Jimmy (1988-1990)
Chevrolet V20 Suburban (1988)
Chevrolet V2500 Suburban (1989-1990)
Chevrolet V1500 Suburban (1989-1990)
Chevrolet V10 Suburban (1988)
Chevrolet S10 (1983-1990)
Chevrolet S10 Blazer (1983-1990)
Chevrolet K3500 (1988-1989)
Chevrolet K2500 (1988-1990)
Chevrolet K1500 (1988-1990)
Chevrolet Blazer (1988-1990)
Jeep Wrangler (1987-1995)
Jeep Wagoneer (1984-1987)
Jeep Grand Wagoneer (1993)
Jeep Grand Cherokee (1993-1996)
Jeep Comanche (1986-1992)
Jeep Cherokee (1984-1996)
Jeep CJ7 (1984-1986)
Dodge W250 (1988-1993)
Dodge W150 (1988-1993)
Dodge W100 (1988-1989)
Dodge Ramcharger (1988-1993)
Dodge Ram 3500 (1994-2002)
Dodge Ram 2500 (1994-2002)
Dodge Dakota (1987-1993)

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
