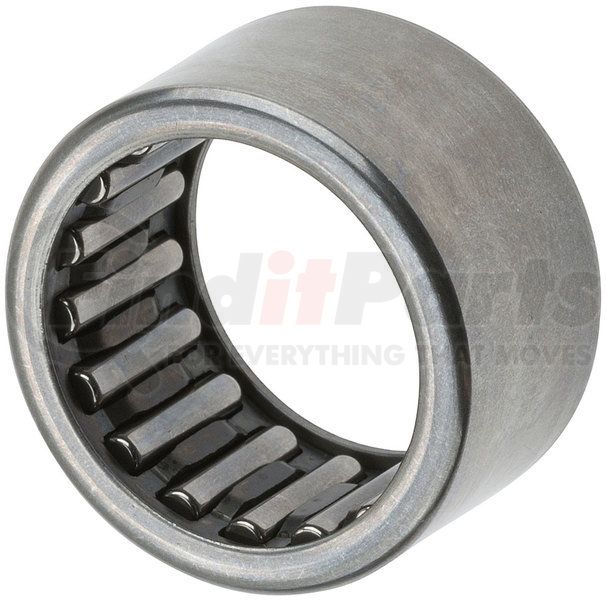

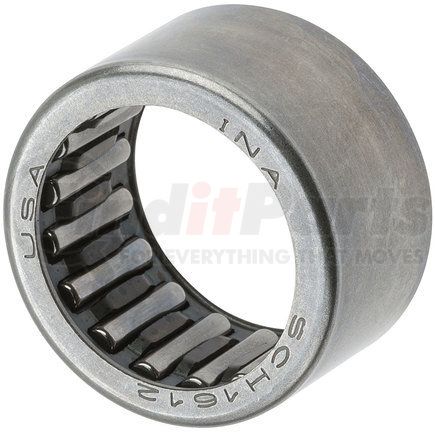

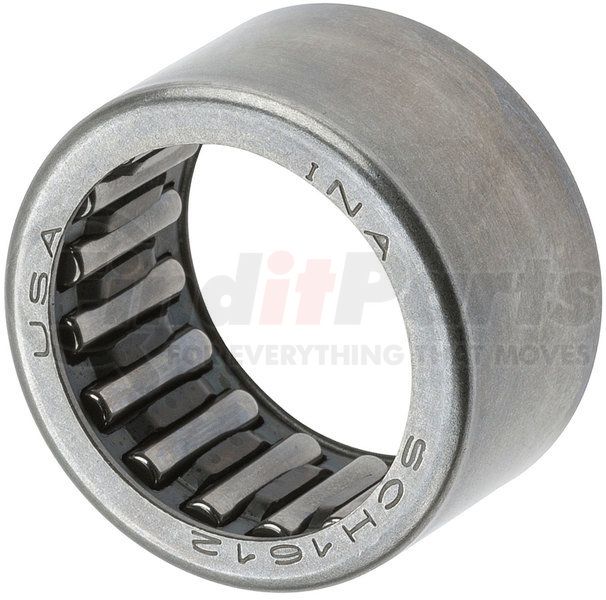

Name: National Seals JH1612 Needle Bearing
SKU: jh1612
Price: 11.49 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

A full line of premium oil seals and bearings : • Premium bearing design matches OEM specifications

• Precision manufactured using premium steel grades for outstanding durability and performance

• Available in both caged design and full complement
Specifications

NEEDLE: Part Description: Needle Bearing

Bore (Inch): 1.0000

Bore (MM): 25.4000

Outside Diameter (Inch): 1.3125

Outside Diameter (MM): 33.3380

Width (Inch): 0.7500

Width (MM): 19.0500

Type: JH

Shaft Diameter Max (Inch): 1.0000

Shaft Diameter Max (MM): 25.4000

Shaft Diameter Min (Inch): .9995

Shaft Diameter Min (MM): 25.3873

Housing Diameter Min (Inch): 1.3120

Housing Diameter Min (MM): 33.3248

Housing Diameter Max (Inch): 1.3130

Housing Diameter Max (MM): 33.3502
Applications

PASSENGER CAR & LIGHT TRUCK

Chevrolet Astro 1998-1990

Ford Bronco II 1990-1984

Ford Explorer 2003-1991

Ford Explorer Sport Trac 2005-2001

Ford Ranger 2011-1983

GMC Safari 1998-1990

GMC Syclone 1991

GMC Typhoon 1993-1992

International Scout II 1980

Jeep CJ5 1983-1980

Jeep CJ7 1986-1980

Jeep Scrambler 1985-1981

Mazda B2300 1997-1994

Mazda B3000 2008-1994

Mazda B4000 2010-1994

Mazda Navajo 1994-1991

Oldsmobile Bravada 1997-1991

Product Description

Needle Bearing

Application Summary

1980-1983 Jeep CJ5 (Rear) (Drive: 4WD); 1980-1986 Jeep CJ7 (Rear) (Drive: 4WD); 1981-1985 Jeep Scrambler (Rear) (Drive: 4WD); 1990-1998 Chevrolet Astro (Front) (Drive: AWD); 1991 GMC Syclone (Front) (Drive: AWD); 1992-1993 GMC Typhoon (Front) (Drive: AWD); 1990-1998 GMC Safari (Front) (Drive: AWD); 1991-1997 Oldsmobile Bravada (Front) (Drive: AWD); 2001-2003 Ford Explorer Sport (Rear) (Drive: 4WD); 2001-2005 Ford Explorer Sport Trac (Rear) (Drive: 4WD); 1984-1990 Ford Bronco II (Rear) (Drive: 4WD); 1991-2003 Ford Explorer (Rear) (Drive: 4WD, AWD); 1983-2011 Ford Ranger (Rear) (Drive: 4WD); 1980 International Scout II (Rear) (Drive: 4WD); 1991-1994 Mazda Navajo (Rear) (Drive: 4WD); 1995-1996 Mazda B2300 (Rear) (Drive: 4WD); 1994-2005 Mazda B3000 (Rear) (Drive: 4WD); 1994-2010 Mazda B4000 (Rear) (Drive: 4WD)

Features & Benefits

RIGHT TYPE -- Needle bearings are application-specific for the repair occasion, using either caged or full complement designs
PREMIUM MATERIALS -- Precision manufactured using high-quality materials for outstanding durability and performance
OE-STYLE DESIGN -- Engineered to meet OE specifications
COMPREHENSIVE COVERAGE -- Industry-leading coverage for domestic and import applications
RIGOROUS TESTING?--?Comprehensive?testing throughout design and development processes by National engineers for quality you can count on

Product Attributes

Bore (inch)	1.0000 IN
Bore (mm)	25.4000 MM
Housing Diameter Max (inch)	1.3130 IN
Housing Diameter Max (mm)	33.3502 MM
Housing Diameter Min (inch)	1.3120 IN
Housing Diameter Min (mm)	33.3248 MM
Outside Diameter (inch)	1.3125 IN
Outside Diameter (mm)	33.3380 MM
Part Description	Needle Bearing
Shaft Diameter Max (inch)	1.0000 IN
Shaft Diameter Max (mm)	25.4000 MM
Shaft Diameter Min (inch)	0.9995 IN
Shaft Diameter Min (mm)	25.3873 MM
Type	JH
Width (inch)	0.7500 IN
Width (mm)	19.0500 MM

Additional Information

Country of Origin (Primary)	DE
Harmonized Tariff Code (Schedule B)	8482400000
Harmonized Tariff Code (HTS)	8482400000
UPC	00724956007226

Part Interchanges

Fits Vehicles

International Scout II (1980)
Ford Explorer (1991-1995, 2001-2003)
Ford Bronco II (1984-1990)
Oldsmobile Bravada (1991-1994, 1996-1997)
GMC Safari (1990-1998)
GMC Typhoon (1992-1993)
GMC Syclone (1991)
Chevrolet Astro (1990-1998)
Jeep Scrambler (1981-1985)
Jeep CJ7 (1980-1986)
Jeep CJ5 (1980-1983)
Ford Explorer Sport (2001-2003)
Ford Explorer Sport Trac (2001-2005)
Ford Ranger (1983-2011)
Mazda B4000 (1994-2010)
Mazda B3000 (1994-2002, 2005)
Mazda B2300 (1995-1996)
Mazda Navajo (1991-1994)
