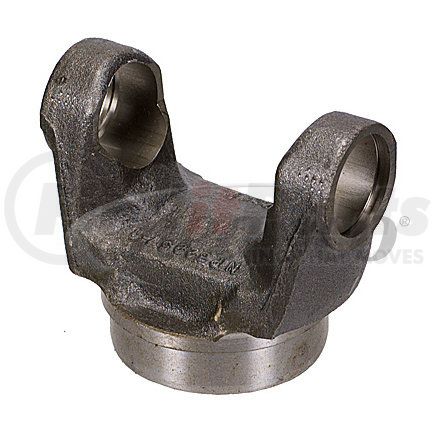

Name: Neapco N3-28-57-1 Drive Shaft Tube Weld Yoke
SKU: n328571
Price: 43.99 USD
Availability: InStock

NEAPCO part description

Neapco N3-28-57-1 1350 Weld Yoke 2.75" X 095W
N328571

Please use the downloadable catalog to select your Neapco U-joint part numbers
Please use the downloadable Dimension Guide to select your Neapco U-joint part numbers
Please use the downloadable catalog to select your Neapco driveline part numbers

N3-28-57-1
ALUMINUM Y/N:N
BALL STUD DIAMETER:
BUTT DIAMETER:2.563
CENTERLINE TO END OF BALL STUD:
CL TO POINT OF WELD:2.0
DRIVELLINE SERIES:1350
FLINGER/BOOT PART NO :
JOINT ANGLE:20
MAX JOINT ANGLE:
MOUNTING FACE TO END OF HUB:
MOUNTING FACE TO WELD POINT:
MOUNTING HOLE/THREAD SIZE:
PILOT DIAMETER:
TUBING DIAMETER AND WALL:2.750 X .095
TYPE OF BUTT:HO

Product Description

Drive Shaft Tube Weld Yoke, Outside Lock-Up

Product Attributes

Butt Diameter (in)	2.562
Center Line to Point of Weld (in)	2.000
Driveline Series	1350
Joint Angle (degrees)	20.0
Material	Steel
Tubing Diameter And Wall (in)	2.750 X.095
TYPE OF BUTT	HO

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708996890
Harmonized Tariff Code (HTS)	8708996890
NAFTA Preference Criterion Code	B
UPC	00083869005096

NEAPCO N3-28-57-1 Cross Reference

We have 3 alternatives for the N3-28-57-1 by NEAPCO:
