Name: Neapco N2-53-501 Drive Shaft Midship Stub Shaft
SKU: n253501
Price: 95.99 USD
Availability: InStock

NEAPCO part description

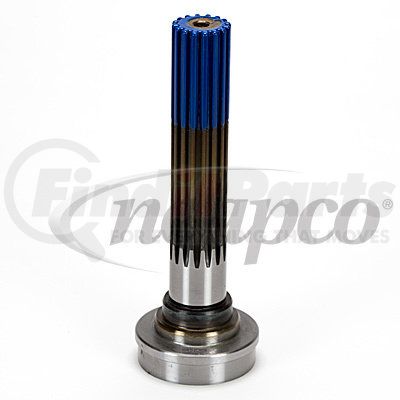

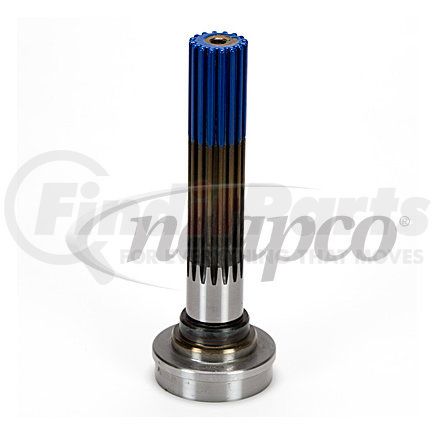

Neapco 2-53-501 Splined Stub Shaft
253501
PLEASE USE THE DANA ONILNE SLIP YOKE CATALOG TO SELECT YOUR PART NUMBERS

N2-53-501
SPLINE MAJOR DIAMETER:
FITS TUBE DIA:3
FITS TUBE WALL:
SPLINE COUNT:
SPLINE END TO RADIUS:
SPLINE END TO WELD:
Y SPLINE END TO BEARING SHOULDER:6.938
C BEARING DIAMETER:1.378
L SPLINE LENGTH:
STYLE:1

Product Description

Driveshaft Midship Stub Shaft

Product Attributes

Brg. Dia. (in)	1.378
Brg. Shoulder Dia.(in)	1.688
Butt Diameter (in)	2.844
End of Spline to Brg. Shoulder (in)	6.938
End of Spline to Point of Weld (in)	8.000
Length Of Shoulder (in)	0.812
Length of Spline (in)	5.406
Spline OD(in)/No. Teeth	1.375-16
Tubing Diameter And Wall (in)	3.000 X .083

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708996890
Harmonized Tariff Code (HTS)	8708996890
NAFTA Preference Criterion Code	B
UPC	00083869000879

Part Interchanges

NEAPCO N2-53-501 Cross Reference

We have 4 alternatives for the N2-53-501 by NEAPCO:

Neapco® has been leading the way in providing innovative driveline solutions for various industries, including automotive, agricultural, commercial vehicle, off-road, industrial, and construction since 1921. Its comprehensive product lineup includes propshafts, sideshafts, differentials, halfshafts, aluminum die castings, and other driveline components. All these products are made utilizing cutting-edge technologies to ensure consistent high quality and superior performance. And since these are engineered using premium-grade materials, users can rest assured that these products will offer reliability, long service life, and maximum durability even when used in the most demanding and extreme environments. Originally known as the New England Auto Products Corporation, Neapco strives harder to bring only the highest quality products and unparalleled customer service.
