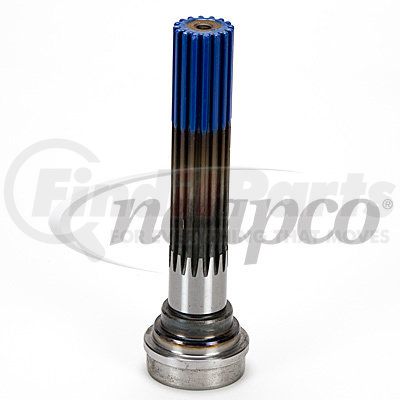

Name: Neapco N2-53-471 Drive Shaft Midship Stub Shaft
SKU: n253471
Price: 95.99 USD
Availability: InStock

NEAPCO part description

BEARING DIAMETER: 1.378

BUTT DIAMETER: 2.344

END OF SPLINE TO BEARING SHOULDER: 6.938

END OF SPLINE TO POINT OF WELD: 8.000

LENGTH OF SHOULDER: 0.812

LENGTH OF SPLINE: 5.406

SHOULDER DIAMETER: 1.688

SPLINE / NO TEETH: 1.375-16

TUBING DIAMETER AND WALL: 2.500X.083

Product Description

Driveshaft Midship Stub Shaft

Product Attributes

Brg. Dia. (in)	1.378
Brg. Shoulder Dia.(in)	1.688
Butt Diameter (in)	2.344
End of Spline to Brg. Shoulder (in)	6.938
End of Spline to Point of Weld (in)	8.000
Length Of Shoulder (in)	0.812
Length of Spline (in)	5.406
Spline OD(in)/No. Teeth	1.375-16
Tubing Diameter And Wall (in)	2.500 X .083

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708996890
Harmonized Tariff Code (HTS)	8708996890
NAFTA Preference Criterion Code	B
UPC	00083869012964

NEAPCO N2-53-471 Cross Reference

We have 3 alternatives for the N2-53-471 by NEAPCO:

Neapco® has been leading the way in providing innovative driveline solutions for various industries, including automotive, agricultural, commercial vehicle, off-road, industrial, and construction since 1921. Its comprehensive product lineup includes propshafts, sideshafts, differentials, halfshafts, aluminum die castings, and other driveline components. All these products are made utilizing cutting-edge technologies to ensure consistent high quality and superior performance. And since these are engineered using premium-grade materials, users can rest assured that these products will offer reliability, long service life, and maximum durability even when used in the most demanding and extreme environments. Originally known as the New England Auto Products Corporation, Neapco strives harder to bring only the highest quality products and unparalleled customer service.
