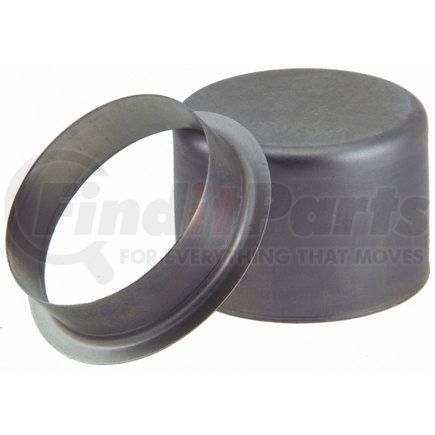

Name: National Seals 99364 Shaft Repair Sleeve
SKU: 99364
Price: 50.49 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® Redi-Sleeves® are precision stainless steel wear sleeves designed to quickly repair damaged, grooved or worn shafts

• Strong, durable stainless steel construction provides a corrosion-free sealing surface that surpasses most original shaft specifications

• Ideal for a shaft where indications of seal wear, such as tracks or grooves, have developed

• Ultra-thin construction (0.1 inch / 0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading

• Easy to install, featuring a removable flange and an installation tool

• The installation tool reduces the possibility of sleeve distortion and provides for sleeve installation without removal of the shaft from the serviced equipment

• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
Specifications

REDI-SLEEVE: Shaft Size Minimum (Inch): 3.740

Shaft Size Minimum (MM): 95.000

Shaft Size Maximum (Inch): 3.746

Shaft Size Maximum (MM): 95.150

Width on Shaft (Inch): 0.469

Width on Shaft (MM): 11.910

Overall Width (Inch): 0.594

Overall Width (MM): 15.090

Flanged Outside Diameter (Inch): 4.035

Flanged Outside Diameter (MM): 102.490

Installation Depth (Inch): 1.750

Installation Depth (MM): 44.450

Material: Stainless Steel
Applications

PASSENGER CAR & LIGHT TRUCK

Acura SLX 1999-1996

AM General Hummer 1995

Avanti II 1990-1987

Buick Commercial Chassis 1996-1991

Buick Opel 1979-1976

Buick Regal 1987-1985

Buick Roadmaster 1996-1991

Cadillac Brougham 1992-1990

Cadillac Commercial Chassis 1996-1992

Cadillac Fleetwood 1996-1993

Chevrolet Astro 1995-1986

Chevrolet Blazer 1995-1987

Chevrolet C10 1986-1985

Chevrolet C10 Suburban 1986-1985

Chevrolet C1500 1995-1988

Chevrolet C1500 Suburban 1995-1992

Chevrolet C20 1986-1985

Chevrolet C20 Suburban 1986-1985

Chevrolet C2500 1995-1988

Chevrolet C2500 Suburban 1995-1992

Chevrolet C30 1986

Chevrolet C3500 1995-1988

Chevrolet Camaro 1997-1985

Chevrolet Caprice 1996-1985

Chevrolet Commercial Chassis 1994-1991

Chevrolet Corvette 1996-1986

Chevrolet El Camino 1987-1985

Chevrolet G10 1995-1985

Chevrolet G20 1995-1985

Chevrolet G30 1995-1985

Chevrolet Impala 1996-1985

Chevrolet K10 1986-1985

Chevrolet K10 Suburban 1986-1985

Chevrolet K1500 1995-1988

Chevrolet K1500 Suburban 1995-1992

Chevrolet K20 1986-1985

Chevrolet K20 Suburban 1986-1985

Chevrolet K2500 1995-1988

Chevrolet K2500 Suburban 1995-1992

Chevrolet K30 1986

Chevrolet K3500 1995-1988

Chevrolet K5 Blazer 1986-1985

Chevrolet Monte Carlo 1988-1985

Chevrolet P20 1989-1986

Chevrolet P30 1995-1986

Chevrolet R10 1987

Chevrolet R10 Suburban 1988-1987

Chevrolet R1500 Suburban 1991-1989

Chevrolet R20 1988-1987

Chevrolet R20 Suburban 1988-1987

Chevrolet R2500 Suburban 1991-1989

Chevrolet R30 1988-1987

Chevrolet R3500 1991-1989

Chevrolet S10 1995-1988

Chevrolet S10 Blazer 1994-1988

Chevrolet Tahoe 1995

Chevrolet V10 1987

Chevrolet V10 Suburban 1988-1987

Chevrolet V1500 Suburban 1991-1989

Chevrolet V20 1987

Chevrolet V20 Suburban 1988-1987

Chevrolet V2500 Suburban 1991-1989

Chevrolet V30 1988-1987

Chevrolet V3500 1991-1989

Excalibur Limited 1993

Excalibur Phaeton 1989-1985

GMC C1500 1995-1985

GMC C1500 Suburban 1995-1985

GMC C2500 1995-1985

GMC C2500 Suburban 1995-1985

GMC C3500 1995-1986

GMC Caballero 1987-1985

GMC G1500 1995-1985

GMC G2500 1995-1985

GMC G3500 1995-1986

GMC Jimmy 1995-1985

GMC K1500 1995-1985

GMC K1500 Suburban 1995-1985

GMC K2500 1995-1986

GMC K2500 Suburban 1995-1986

GMC K3500 1995-1986

GMC P2500 1989-1986

GMC P3500 1995-1986

GMC R1500 1987

GMC R1500 Suburban 1991-1987

GMC R2500 1989-1987

GMC R2500 Suburban 1991-1987

GMC R3500 1991-1987

GMC S15 1990-1988

GMC S15 Jimmy 1991-1988

GMC Safari 1995-1986

GMC Sonoma 1995-1991

GMC Syclone 1991

GMC Typhoon 1993-1992

GMC V1500 1987

GMC V1500 Suburban 1991-1987

GMC V2500 1987

GMC V2500 Suburban 1991-1987

GMC V3500 1991-1987

GMC Yukon 1995-1992

Honda Passport 2002-1994

Isuzu Amigo 2000-1989

Isuzu Axiom 2004-2002

Isuzu Impulse 1989-1988

Isuzu Pickup 1995-1986

Isuzu Rodeo 2004-1991

Isuzu Rodeo Sport 2003-2001

Isuzu Trooper 2002-1986

Isuzu VehiCROSS 2001-1999

Oldsmobile Bravada 1994-1991

Oldsmobile Custom Cruiser 1992-1991

Oldsmobile Cutlass 1987-1985

Oldsmobile Cutlass Supreme 1987-1985

Pontiac Bonneville 1986-1985

Pontiac Firebird 1997-1985

Pontiac Grand Prix 1987-1985

Pontiac Parisienne 1986-1985

Product Description

Redi-sleeve

Application Summary

1993 Excalibur Limited (Rear); 1985-1989 Excalibur Phaeton (Rear); 1989-2000 Isuzu Amigo (Rear); 2002-2004 Isuzu Axiom (Rear); 1988-1989 Isuzu Impulse (Rear); 1986-1995 Isuzu Pickup (Rear); 1991-2004 Isuzu Rodeo (Rear); 2001-2003 Isuzu Rodeo Sport (Rear); 1986-2002 Isuzu Trooper (Rear); 1999-2001 Isuzu VehiCROSS (Rear); 1995 AM General Hummer (Rear); 1976-1979 Buick Opel (Rear); 1985-1987 Buick Regal (Rear); 1991-1996 Buick Roadmaster (Rear); 1991-1996 Buick Commercial Chassis (Rear); 1992-1996 Cadillac Commercial Chassis (Rear); 1993-1996 Cadillac Fleetwood (Rear); 1990-1992 Cadillac Brougham (Rear); 1988-1990 Chevrolet P40 (Rear); 1991-1995 Chevrolet C3500HD (Rear); 1991-1994 Chevrolet Commercial Chassis (Rear); 1985-1995 Chevrolet Astro (Rear); 1987-1995 Chevrolet Blazer (Rear); 1985-1986 Chevrolet K5 Blazer (Rear); 1985-1986 Chevrolet C10 (Rear); 1985-1986 Chevrolet C10 Suburban (Rear); 1988-1995 Chevrolet C1500 (Rear); 1992-1995 Chevrolet C1500 Suburban (Rear); 1985-1986 Chevrolet C20 (Rear); 1985-1986 Chevrolet C20 Suburban (Rear); 1988-1995 Chevrolet C2500 (Rear); 1992-1995 Chevrolet C2500 Suburban (Rear); 1986 Chevrolet C30 (Rear); 1988-1995 Chevrolet C3500 (Rear); 1985-1997 Chevrolet Camaro (Rear); 1985-1996 Chevrolet Caprice (Rear); 1986-1996 Chevrolet Corvette (Rear); 1985-1987 Chevrolet El Camino (Rear); 1985-1995 Chevrolet G10 (Rear); 1985-1995 Chevrolet G20 (Rear); 1985-1996 Chevrolet G30 (Rear); 1985-1996 Chevrolet Impala (Rear); 1985-1986 Chevrolet K10 (Rear); 1986 Chevrolet K10 Suburban (Rear); 1988-1995 Chevrolet K1500 (Rear); 1992-1995 Chevrolet K1500 Suburban (Rear); 1985-1986 Chevrolet K20 (Rear); 1985-1986 Chevrolet K20 Suburban (Rear); 1988-1995 Chevrolet K2500 (Rear); 1992-1995 Chevrolet K2500 Suburban (Rear); 1986 Chevrolet K30 (Rear); 1988-1995 Chevrolet K3500 (Rear); 1985-1988 Chevrolet Monte Carlo (Rear); 1986-1989 Chevrolet P20 (Rear); 1986-1995 Chevrolet P30 (Rear); 1987...

Features & Benefits

Designed to repair damaged, grooved or worn shafts
Durable stainless steel construction for corrosion-free sealing surface that surpasses most original shaft specifications
Ideal for a shaft where indications of seal wear, such as tracks or grooves have developed
Ultra-thin construction (0.01/0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading
Easy to install with removable flange and installation tool
Installation tool reduces sleeve distortion and allows for installation without removal from the shaft

Product Attributes

Flanged Outside Diameter (inch)	4.035 IN
Flanged Outside Diameter (mm)	102.490 MM
Installation Depth (inch)	1.750 IN
Installation Depth (mm)	44.450 MM
Material	Stainless Steel
Overall Width (inch)	0.594 IN
Overall Width (mm)	15.090 MM
Part Description	Redi-Sleeve
Product Description	Repair Sleeve
Shaft Size (inch)	3.740 IN
Shaft Size (mm)	95.000 MM
Shaft Size Maximum (inch)	3.746 IN
Shaft Size Maximum (mm)	95.150 MM
Shaft Size Minimum (inch)	3.740 IN
Shaft Size Minimum (mm)	95.000 MM
Unit of Dimension	Inch
Width On Shaft (inch)	0.469 IN
Width On Shaft (mm)	11.910 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	7307290090
Harmonized Tariff Code (HTS)	7307290090
UPC	00724956214365

Part Interchanges

Fits Vehicles

Oldsmobile Custom Cruiser (1991-1992)
Pontiac Parisienne (1985-1986)
Pontiac Grand Prix (1985-1987)
Pontiac Firebird (1985-1997)
Pontiac Bonneville (1985-1986)
Oldsmobile Cutlass Supreme (1985-1987)
Oldsmobile Bravada (1991-1994)
GMC Yukon (1992-1995)
GMC V3500 (1987-1991)
GMC V2500 Suburban (1987-1991)
GMC V2500 (1987)
GMC V1500 Suburban (1987-1991)
GMC V1500 (1987)
GMC Safari (1986-1995)
GMC Typhoon (1992-1993)
GMC Syclone (1991)
GMC Sonoma (1991-1995)
GMC S15 (1988-1990)
GMC S15 Jimmy (1988-1991)
GMC R3500 (1987-1991)
GMC R2500 Suburban (1987-1991)
GMC R2500 (1987-1989)
GMC R1500 Suburban (1987-1991)
GMC R1500 (1987)
GMC P3500 (1986-1995)
GMC P2500 (1986-1989)
GMC K3500 (1986, 1988-1995)
GMC K2500 Suburban (1986, 1992-1995)
GMC K2500 (1986, 1988-1995)
GMC K1500 Suburban (1986, 1992-1995)
GMC K1500 (1985-1986, 1988-1995)
GMC Jimmy (1985-1995)
GMC G3500 (1986-1995)
GMC G2500 (1985-1995)
GMC G1500 (1985-1995)
GMC Caballero (1985-1987)
GMC C3500 (1986, 1988-1995)
GMC C2500 Suburban (1985-1986, 1992-1995)
GMC C2500 (1985-1986, 1988-1995)
GMC C1500 Suburban (1985-1986, 1992-1995)
GMC C1500 (1985-1986, 1988-1995)
Chevrolet V3500 (1989-1991)
Chevrolet V30 (1987-1988)
Chevrolet V2500 Suburban (1989-1991)
Chevrolet V20 Suburban (1987-1988)
Chevrolet V20 (1987)
Chevrolet V1500 Suburban (1989-1991)
Chevrolet V10 Suburban (1987-1988)
Chevrolet V10 (1987)
Chevrolet Tahoe (1995)
Chevrolet S10 (1988-1995)
Chevrolet S10 Blazer (1988-1994)
Chevrolet R3500 (1989-1991)
Chevrolet R30 (1987-1988)
Chevrolet R2500 Suburban (1989-1991)
Chevrolet R2500 (1989)
Chevrolet R20 Suburban (1987-1988)
Chevrolet R20 (1987-1988)
Chevrolet R1500 Suburban (1989-1991)
Chevrolet R10 Suburban (1987-1988)
Chevrolet R10 (1987)
Chevrolet P30 (1986-1995)
Chevrolet P20 (1986-1989)
Chevrolet Monte Carlo (1985-1988)
Chevrolet K3500 (1988-1995)
Chevrolet K30 (1986)
Chevrolet K2500 Suburban (1992-1995)
Chevrolet K2500 (1988-1995)
Chevrolet K20 Suburban (1985-1986)
Chevrolet K20 (1985-1986)
Chevrolet K1500 Suburban (1992-1995)
Chevrolet K1500 (1988-1995)
Chevrolet K10 Suburban (1986)
Chevrolet K10 (1985-1986)
Chevrolet Impala (1985, 1994-1996)
Chevrolet G30 (1985-1996)
Chevrolet G20 (1985-1995)
Chevrolet G10 (1985-1995)
Chevrolet El Camino (1985-1987)
Chevrolet Corvette (1986-1996)
Chevrolet Caprice (1985-1996)
Chevrolet Camaro (1985-1997)
Chevrolet C3500 (1988-1995)
Chevrolet C30 (1986)
Chevrolet C2500 Suburban (1992-1995)
Chevrolet C2500 (1988-1995)
Chevrolet C20 Suburban (1985-1986)
Chevrolet C20 (1985-1986)
Chevrolet C1500 Suburban (1992-1995)
Chevrolet C1500 (1988-1995)
Chevrolet C10 Suburban (1985-1986)
Chevrolet C10 (1985-1986)
Chevrolet K5 Blazer (1985-1986)
Chevrolet Blazer (1987-1995)
Chevrolet Astro (1985-1995)
Cadillac Commercial Chassis (1992-1996)
Cadillac Brougham (1990-1992)
Cadillac Fleetwood (1993-1996)
Buick Commercial Chassis (1991-1996)
Buick Roadmaster (1991-1996)
Buick Regal (1985-1987)
AM General Hummer (1995)
Isuzu VehiCROSS (1999-2001)
Isuzu Trooper (1986-2002)
Isuzu Rodeo Sport (2001-2003)
Isuzu Pickup (1986-1995)
Isuzu Impulse (1988-1989)
Isuzu Amigo (1989-1994, 1998-2000)
Excalibur Phaeton (1985-1989)
Excalibur Limited (1993)
Avanti II (1987-1991)
Chevrolet Commercial Chassis (1991-1994)
GMC C3500HD (1991-1995)
Chevrolet C3500HD (1991-1995)
GMC P4500 (1988-1990)
Chevrolet P40 (1988-1990)
Buick Opel (1976-1979)
Isuzu Rodeo (1991-2004)
Isuzu Axiom (2002-2004)
Oldsmobile Cutlass (1985-1987)
Honda Passport (1994-2002)
Acura SLX (1996-1999)
