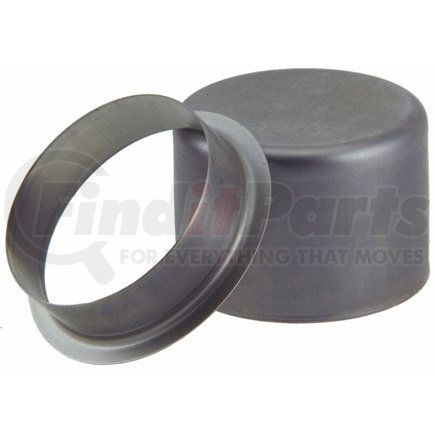

Name: National Seals 99274 Shaft Repair Sleeve
SKU: 99274
Price: 55.99 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

The National® Redi-Sleeve is ideal for a shaft where indications of seal wear, such as tracks or grooves, have developed.

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for todays vehicles.

Designed to repair damaged, grooved or worn shafts
Durable stainless steel construction for corrosion-free sealing surface that surpasses most original shaft specifications
Ideal for a shaft where indications of seal wear, such as tracks or grooves have developed
Ultra-thin construction (0.1 inch / 0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading
Easy to install with removable flange and installation tool
Installation tool reduces sleeve distortion and allows for installation without removal from the shaft

Part Specifications

NATIONAL REDI-SLEEVE SPECS

Shaft Size Minimum (Inch)	2.745
Shaft Size Minimum (MM)	69.720
Shaft Size Maximum (Inch)	2.751
Shaft Size Maximum (MM)	69.880
Width on Shaft (Inch)	0.781
Width on Shaft (MM)	19.840
Overall Width (Inch)	0.938
Overall Width (MM)	23.830
Flanged Outside Diameter (Inch)	3.125
Flanged Outside Diameter (MM)	79.380
Installation Depth (Inch)	1.250
Installation Depth (MM)	31.750
Material	Stainless Steel

Product Description

Redi-sleeve

Application Summary

2008-2019 Chrysler 300 (Drive: AWD / Qualifier: Full Time 4WD, with Borg-Warner 4440 Transfer Case, 1 Speed, with Full Time 4WD); 2017-2019 Dodge Challenger (Drive: AWD / Qualifier: Full Time 4WD, with Borg-Warner 4440 Transfer Case, 1 Speed, with Full Time 4WD); 2008-2019 Dodge Charger (Drive: AWD / Qualifier: Full Time 4WD, with Borg-Warner 4440 Transfer Case, 1 Speed, with Full Time 4WD); 2008 Dodge Magnum (Drive: AWD / Qualifier: Full Time 4WD, with Borg-Warner 4440 Transfer Case, 1 Speed)

Features & Benefits

Designed to repair damaged, grooved or worn shafts
Durable stainless steel construction for corrosion-free sealing surface that surpasses most original shaft specifications
Ideal for a shaft where indications of seal wear, such as tracks or grooves have developed
Ultra-thin construction (0.01/0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading
Easy to install with removable flange and installation tool
Installation tool reduces sleeve distortion and allows for installation without removal from the shaft

Product Attributes

Flanged Outside Diameter (inch)	3.125 IN
Flanged Outside Diameter (mm)	79.380 MM
Installation Depth (inch)	1.250 IN
Installation Depth (mm)	31.750 MM
Material	Stainless Steel
Overall Width (inch)	0.938 IN
Overall Width (mm)	23.830 MM
Part Description	Redi-Sleeve
Product Description	Repair Sleeve
Shaft Size (inch)	2.748 IN
Shaft Size (mm)	69.799 MM
Shaft Size Maximum (inch)	2.751 IN
Shaft Size Maximum (mm)	69.880 MM
Shaft Size Minimum (inch)	2.745 IN
Shaft Size Minimum (mm)	69.720 MM
Unit of Dimension	Inch
Width On Shaft (inch)	0.781 IN
Width On Shaft (mm)	19.840 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	7307290090
Harmonized Tariff Code (HTS)	7307290090
UPC	00724956213993

Part Interchanges

Fits Vehicles

Dodge Challenger (2017-2019)
Dodge Magnum (2008)
Dodge Charger (2008-2019)
Chrysler 300 (2008-2019)
