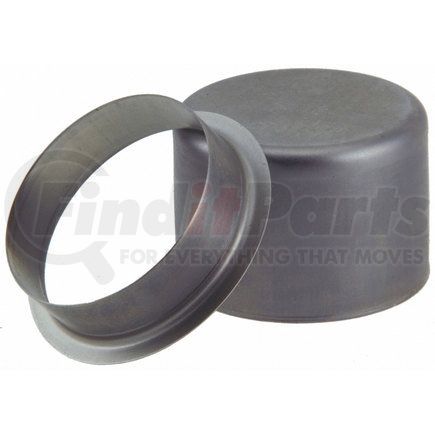

National Seals 99272 - Shaft Repair Sleeve

• Description

  National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® Redi-Sleeves® are precision stainless steel wear sleeves designed to quickly repair damaged, grooved or worn shafts
  • Strong, durable stainless steel construction provides a corrosion-free sealing surface that surpasses most original shaft specifications
  • Ideal for a shaft where indications of seal wear, such as tracks or grooves, have developed
  • Ultra-thin construction (0.1 inch / 0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading
  • Easy to install, featuring a removable flange and an installation tool
  • The installation tool reduces the possibility of sleeve distortion and provides for sleeve installation without removal of the shaft from the serviced equipment
  • Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.

• Specifications

  REDI-SLEEVE: Shaft Size Minimum (Inch): 2.750
  Shaft Size Minimum (MM): 69.850
  Shaft Size Maximum (Inch): 2.756
  Shaft Size Maximum (MM): 70.000
  Width on Shaft (Inch): 0.406
  Width on Shaft (MM): 10.310
  Overall Width (Inch): 0.563
  Overall Width (MM): 14.300
  Flanged Outside Diameter (Inch): 3.125
  Flanged Outside Diameter (MM): 79.380
  Installation Depth (Inch): 1.250
  Installation Depth (MM): 31.750
  Material: Stainless Steel

• Applications

  PASSENGER CAR & LIGHT TRUCK
  Bertone X-1/9 1989-1984
  Chevrolet Nova 1988-1985
  Fiat 124 1983-1971
  Fiat 131 1978-1975
  Fiat Brava 1981-1979
  Fiat Strada 1982-1979
  Fiat X-1/9 1983-1979
  Geo Prizm 1997-1989
  Lancia Beta 1981-1976
  Lancia Scorpion 1976
  Lancia Zagato 1982-1979
  Mazda GLC 1985-1977
  Mazda Mizer 1977-1976
  Renault Caravelle 1967-1963
  Renault R10 1971-1967
  Renault R8 1967-1963
  for Subaru 1400 1974-1973
  for Subaru Brat 1980-1978
  for Subaru Deluxe 1973-1972
  for Subaru DL 1984-1973
  for Subaru FE 1979
  for Subaru GF 1979-1975
  for Subaru GL 1987-1972
  for Subaru GLF 1980
  for Subaru Standard 1987-1976
  for Subaru Star 1972-1970
  Toyota Celica 1997-1990
  Toyota Corolla 1997-1968
  Toyota MR2 1989-1985
  Toyota Starlet 1984-1981
  Toyota Tercel 1988-1980
  Volkswagen Beetle 1979-1961
  Volkswagen Campmobile 1971-1968
  Volkswagen Fastback 1973-1966
  Volkswagen Karmann Ghia 1974-1961
  Volkswagen Squareback 1973-1966
  Volkswagen Super Beetle 1980-1971
  Volkswagen Thing 1974-1973
  Volkswagen Transporter 1974-1961

Product Description

Redi-sleeve

Application Summary

1970-1972 Subaru Star (Rear); 1972-1973 Subaru Deluxe (Rear); 1973-1974 Subaru 1400 (Rear); 1978-1980 Subaru Brat (Rear); 1973-1984 Subaru DL (Rear); 1979 Subaru FE (Rear); 1975-1979 Subaru GF (Rear); 1972-1987 Subaru GL (Rear); 1980 Subaru GLF (Rear); 1976-1987 Subaru Standard (Rear); 1967-1971 Renault R10 (Rear); 1963-1967 Renault Caravelle (Rear); 1963-1967 Renault R8 (Rear); 1984-1989 Bertone X-1/9 (Rear); 1985-1988 Chevrolet Nova (Rear); 1989-1997 Geo Prizm (Rear); 1971-1978 Fiat 124 (Rear); 1975-1978 Fiat 131 (Rear); 1979-1982 Fiat Strada (Rear); 1979-1983 Fiat X-1/9 (Rear); 1968-1971 Volkswagen Campmobile (Rear); 1966-1973 Volkswagen Fastback (Rear); 1961-1974 Volkswagen Karmann Ghia (Rear); 1966-1973 Volkswagen Squareback (Rear); 1971-1980 Volkswagen Super Beetle (Rear); 1973-1974 Volkswagen Thing (Rear); 1961-1979 Volkswagen Beetle (Rear); 1961-1974 Volkswagen Transporter (Rear); 1990-1997 Toyota Celica (Rear); 1968-1997 Toyota Corolla (Rear); 1985-1989 Toyota MR2 (Rear); 1981-1984 Toyota Starlet (Rear); 1980-1988 Toyota Tercel (Rear); 1977-1985 Mazda GLC (Rear); 1976-1977 Mazda Mizer (Rear); 1976 Lancia Scorpion (Rear); 1976-1981 Lancia Beta (Rear); 1979-1982 Lancia Zagato (Rear)

Features & Benefits

• Designed to repair damaged, grooved or worn shafts
• Durable stainless steel construction for corrosion-free sealing surface that surpasses most original shaft specifications
• Ideal for a shaft where indications of seal wear, such as tracks or grooves have developed
• Ultra-thin construction (0.01/0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading
• Easy to install with removable flange and installation tool
• Installation tool reduces sleeve distortion and allows for installation without removal from the shaft

• SKF 99272
• General Motors 0704-7899
• Chicago Rawhide 99272
• Victor Reinz 99272RS
• Timken KWK99272

Fits Vehicles

• Geo Prizm (1989-1997)
• Chevrolet Nova (1985-1988)
• Bertone X-1/9 (1984-1989)
• Subaru GLF (1980)
• Subaru GF (1975-1979)
• Subaru FE (1979)
• Subaru Brat (1978-1980)
• Lancia Zagato (1979, 1981-1982)
• Lancia Beta (1976-1979, 1981)
• Fiat X-1/9 (1979-1983)
• Fiat Strada (1979-1982)
• Fiat 131 (1975-1978)
• Lancia Scorpion (1976)
• Subaru 1400 (1973-1974)
• Subaru Deluxe (1972-1973)
• Renault R8 (1963-1967)
• Renault Caravelle (1963-1967)
• Subaru Standard (1976-1987)
• Mazda Mizer (1976-1977)
• Mazda GLC (1977-1985)
• Volkswagen Transporter (1961-1974)
• Volkswagen Thing (1973-1974)
• Volkswagen Super Beetle (1971-1980)
• Volkswagen Squareback (1966-1973)
• Volkswagen Karmann Ghia (1961-1974)
• Volkswagen Fastback (1966-1973)
• Volkswagen Campmobile (1968-1971)
• Subaru Star (1970-1972)
• Subaru GL (1972-1975, 1979-1980, 1986-1987)
• Subaru DL (1973-1984)
• Renault R10 (1967-1971)
• Fiat 124 (1971-1978)
• Toyota Tercel (1980-1988)
• Toyota Starlet (1981-1984)
• Toyota MR2 (1985-1989)
• Toyota Corolla (1968-1979, 1983-1997)
• Toyota Celica (1990-1997)
• Volkswagen Beetle (1961-1979)
