Name: National Seals 99226 Shaft Repair Sleeve
SKU: 99226
Price: 50.49 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

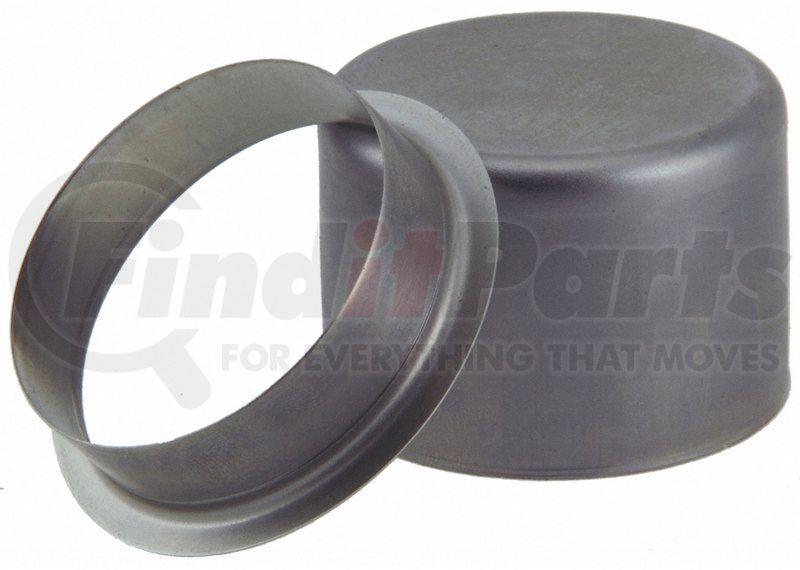

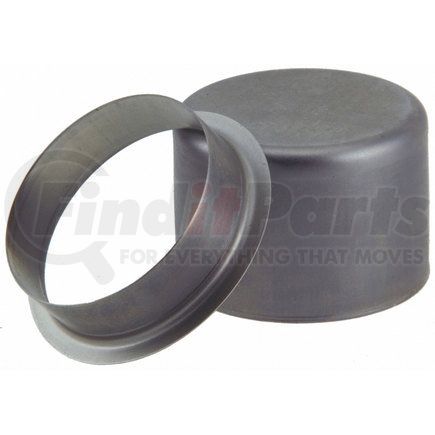

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® Redi-Sleeves® are precision stainless steel wear sleeves designed to quickly repair damaged, grooved or worn shafts

• Strong, durable stainless steel construction provides a corrosion-free sealing surface that surpasses most original shaft specifications

• Ideal for a shaft where indications of seal wear, such as tracks or grooves, have developed

• Ultra-thin construction (0.1 inch / 0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading

• Easy to install, featuring a removable flange and an installation tool

• The installation tool reduces the possibility of sleeve distortion and provides for sleeve installation without removal of the shaft from the serviced equipment

• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
Specifications

REDI-SLEEVE: Shaft Size Minimum (Inch): 2.237

Shaft Size Minimum (MM): 56.820

Shaft Size Maximum (Inch): 2.243

Shaft Size Maximum (MM): 56.970

Width on Shaft (Inch): 0.764

Width on Shaft (MM): 19.410

Overall Width (Inch): 0.900

Overall Width (MM): 22.860

Flanged Outside Diameter (Inch): 2.562

Flanged Outside Diameter (MM): 65.070

Installation Depth (Inch): 1.250

Installation Depth (MM): 31.750

Material: Stainless Steel
Applications

PASSENGER CAR & LIGHT TRUCK

Buick Skylark 1967-1964

Buick Special 1967-1964

Buick Sportwagon 1967-1965

Chrysler Cordoba 1983-1980

Chrysler Fifth Avenue 1983

Chrysler LeBaron 1981-1978

Chrysler New Yorker 1982

Chrysler Newport 1981-1979

Chrysler Town & Country 1981-1978

Dodge 330 1964-1963

Dodge 440 1964-1963

Dodge A100 Truck 1970-1964

Dodge A108 Van 1970-1967

Dodge Aspen 1980-1976

Dodge B100 1980-1975

Dodge B100 Van 1974-1971

Dodge B150 1987-1981

Dodge B200 1980-1975

Dodge B200 Van 1974-1971

Dodge B250 1987-1981

Dodge B300 1980-1975

Dodge B300 Van 1974-1971

Dodge CB300 1979-1973

Dodge Challenger 1972-1970

Dodge Charger 1976-1968

Dodge Coronet 1976-1965

Dodge D100 1987-1975

Dodge D100 Pickup 1974-1968

Dodge D100 Series 1967-1960

Dodge D150 1987-1978

Dodge D200 1980-1975

Dodge D200 Pickup 1974-1968

Dodge D200 Series 1967-1960

Dodge D250 1987-1981

Dodge D300 1978-1975

Dodge D300 Pickup 1974-1968

Dodge D300 Series 1967-1960

Dodge Dart 1976-1960

Dodge Diplomat 1983-1978

Dodge Lancer 1962-1961

Dodge Mirada 1983-1980

Dodge Monaco 1978-1977

Dodge P100 1966-1965

Dodge P200 1972-1965

Dodge P200 Van 1974-1961

Dodge P300 1972-1965

Dodge P300 Van 1974-1961

Dodge Phoenix 1961-1960

Dodge Pioneer 1961-1960

Dodge Polara 1973-1963

Dodge Ramcharger 1980-1974

Dodge Seneca 1961-1960

Dodge St. Regis 1981-1979

Dodge W100 1987-1975

Dodge W100 Pickup 1974-1968

Dodge W100 Series 1967-1960

Dodge W150 1987-1978

Dodge W200 1980-1975

Dodge W200 Pickup 1974-1968

Dodge W200 Series 1967-1960

Dodge W300 1978-1975

Dodge W300 Pickup 1974-1968

Dodge W300 Series 1967-1963

Fargo A100 Van 1970-1964

Fargo A108 Van 1970-1967

Fargo B100 Van 1972-1971

Fargo B200 Van 1972-1971

Fargo B300 Van 1972-1971

Fargo D100 Panel Delivery 1967-1966

Fargo D100 Pickup 1972-1966

Fargo D110 Pickup 1972-1966

Fargo D200 Panel Delivery 1967-1966

Fargo D200 Pickup 1972-1966

Fargo D210 Pickup 1972-1966

Fargo F100 Panel Delivery 1965-1961

Fargo F100 Pickup 1965-1961

Fargo FW100 Panel Delivery 1965-1961

Fargo FW100 Pickup 1965-1961

Fargo P100 Parcel Delivery 1969-1966

Fargo P200 Parcel Delivery 1971-1961

Fargo P300 Parcel Delivery 1971-1961

Fargo W100 Panel Delivery 1967-1966

Fargo W100 Pickup 1972-1966

Fargo W110 Pickup 1972-1969

Fargo W200 Pickup 1972-1966

Jeep CJ3 1966

Jeep CJ5 1971-1966

Jeep CJ5A 1968-1966

Jeep CJ6 1971-1966

Jeep CJ6A 1968-1966

Jeep Commando 1971-1966

Jeep Dispatcher 1969-1966

Jeep DJ5 1971-1966

Jeep DJ6 1968-1966

Jeep FC150 1966

Jeep Jeepster 1971-1966

Jeep Universal 1967-1966

Jeep Universal Truck 1969-1966

Oldsmobile Cutlass 1965-1964

Oldsmobile F85 1965-1964

Oldsmobile Vista Cruiser 1965-1964

Plymouth Barracuda 1972-1965

Plymouth Belvedere 1970-1960

Plymouth Belvedere II 1967-1965

Plymouth Caravelle 1983-1978

Plymouth Custom 1961-1960

Plymouth Duster 1976-1970

Plymouth Fleet Special 1963-1960

Plymouth Fury 1978-1960

Plymouth Fury I 1974-1968

Plymouth Fury II 1974-1965

Plymouth Fury III 1973-1965

Plymouth Gran Fury 1983-1980

Plymouth PB100 1980-1975

Plymouth PB100 Van 1974

Plymouth PB150 1983-1981

Plymouth PB200 1980-1975

Plymouth PB200 Van 1974

Plymouth PB250 1983-1981

Plymouth Satellite 1974-1965

Plymouth Savoy 1964-1960

Plymouth Scamp 1976-1971

Plymouth Sport Wagon 1961-1960

Plymouth Suburban 1961-1960

Plymouth Trailduster 1980-1974

Plymouth Valiant 1976-1960

Plymouth Volare 1980-1976

Product Description

Redi-sleeve

Application Summary

1967-1970 Fargo A108 Van (Front); 1964-1970 Fargo A100 Van (Front); 1966-1967 Fargo D100 Panel Delivery (Front); 1966-1972 Fargo D110 Pickup (Front); 1966-1967 Fargo D200 Panel Delivery (Front); 1966-1972 Fargo D210 Pickup (Front); 1961-1965 Fargo F100 Panel Delivery (Front); 1961-1965 Fargo F100 Pickup (Front); 1961-1965 Fargo FW100 Panel Delivery (Front); 1961-1965 Fargo FW100 Pickup (Front); 1966-1969 Fargo P100 Parcel Delivery (Front); 1961-1971 Fargo P200 Parcel Delivery (Front); 1961-1971 Fargo P300 Parcel Delivery (Front); 1966-1967 Fargo W100 Panel Delivery (Front); 1969-1972 Fargo W110 Pickup (Front); 1971-1972 Fargo B100 Van (Front); 1971-1972 Fargo B200 Van (Front); 1971-1972 Fargo B300 Van (Front); 1966-1972 Fargo D100 Pickup (Front); 1966-1972 Fargo D200 Pickup (Front); 1966-1972 Fargo W100 Pickup (Front); 1966-1972 Fargo W200 Pickup (Front); 1980-1983 Chrysler Cordoba (Front); 1983 Chrysler Fifth Avenue (Front); 1978-1981 Chrysler LeBaron (Front); 1982 Chrysler New Yorker (Front); 1979-1981 Chrysler Newport (Front); 1978-1981 Chrysler Town & Country (Front); 1963-1964 Dodge 330 (Front); 1967-1970 Dodge A108 Van (Front); 1961-1967 Dodge D100 Series (Front); 1961-1967 Dodge D200 Series (Front); 1961-1967 Dodge D300 Series (Front); 1963-1973 Dodge Polara (Front); 1961-1967 Dodge W100 Series (Front); 1961-1967 Dodge W200 Series (Front); 1963-1967 Dodge W300 Series (Front); 1961-1974 Dodge P300 Van (Front); 1961-1967 Dodge P100 Van (Front); 1961-1974 Dodge P200 Van (Front); 1960-1961 Dodge Pioneer (Front); 1960-1961 Dodge Seneca (Front); 1964-1970 Dodge A100 Truck (Front); 1964-1966 Dodge A100 (Front); 1965-1968 Dodge P100 (Front); 1965-1972 Dodge P200 (Front); 1965-1972 Dodge P300 (Front); 1971-1974 Dodge B100 Van (Front); 1975-1980 Dodge B100 (Front); 1981-1987 Dodge B150 (Front); 1975-1980 Dodge B200 (Front); 1981-1987 Dodge B250 (Front); 1975-1980 Dodge B300 (Front); 1976-1980 Dodge Aspen (Front);...

Features & Benefits

Designed to repair damaged, grooved or worn shafts
Durable stainless steel construction for corrosion-free sealing surface that surpasses most original shaft specifications
Ideal for a shaft where indications of seal wear, such as tracks or grooves have developed
Ultra-thin construction (0.01/0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading
Easy to install with removable flange and installation tool
Installation tool reduces sleeve distortion and allows for installation without removal from the shaft

Product Attributes

Flanged Outside Diameter (inch)	2.562 IN
Flanged Outside Diameter (mm)	65.070 MM
Installation Depth (inch)	1.250 IN
Installation Depth (mm)	31.750 MM
Material	Stainless Steel
Overall Width (inch)	0.900 IN
Overall Width (mm)	22.860 MM
Part Description	Redi-Sleeve
Product Description	Repair Sleeve
Shaft Size (inch)	2.240 IN
Shaft Size (mm)	56.896 MM
Shaft Size Maximum (inch)	2.243 IN
Shaft Size Maximum (mm)	56.970 MM
Shaft Size Minimum (inch)	2.237 IN
Shaft Size Minimum (mm)	56.820 MM
Unit of Dimension	Inch
Width On Shaft (inch)	0.764 IN
Width On Shaft (mm)	19.410 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	7307290090
Harmonized Tariff Code (HTS)	7307290090
UPC	00724956213771

Part Interchanges

Fits Vehicles

Plymouth Volare (1976-1980)
Plymouth PB250 (1981-1983)
Plymouth PB200 (1975-1978, 1980)
Plymouth PB150 (1981-1983)
Plymouth PB100 (1975-1980)
Plymouth Gran Fury (1980-1983)
Dodge W300 (1975-1978)
Dodge W200 (1975-1980)
Dodge W150 (1978-1987)
Dodge St. Regis (1979-1981)
Dodge Monaco (1977-1978)
Dodge Mirada (1980-1983)
Dodge Diplomat (1978-1983)
Dodge D300 (1975-1978)
Dodge D250 (1981-1987)
Dodge D200 (1975-1980)
Dodge D150 (1977-1987)
Dodge B300 (1975-1980)
Dodge B250 (1981-1987)
Dodge B200 (1975-1980)
Dodge B150 (1981-1987)
Dodge Aspen (1976-1980)
Dodge B100 (1975-1980)
Chrysler Town & Country (1978-1981)
Chrysler Newport (1979-1981)
Chrysler New Yorker (1982)
Chrysler LeBaron (1978-1981)
Chrysler Fifth Avenue (1983)
Chrysler Cordoba (1980-1983)
Dodge W100 (1975-1977, 1984-1987)
Dodge D100 (1975-1979, 1984-1987)
Fargo B300 Van (1971-1972)
Fargo B200 Van (1971-1972)
Fargo B100 Van (1971-1972)
Fargo W110 Pickup (1969-1972)
Fargo A108 Van (1967-1970)
Jeep Universal Truck (1966-1969)
Fargo W200 Pickup (1966-1972)
Fargo W100 Pickup (1966-1972)
Fargo W100 Panel Delivery (1966-1967)
Fargo P100 Parcel Delivery (1966-1969)
Fargo D210 Pickup (1966-1972)
Fargo D200 Pickup (1966-1972)
Fargo D200 Panel Delivery (1966-1967)
Fargo D110 Pickup (1966-1972)
Fargo D100 Pickup (1966-1972)
Fargo D100 Panel Delivery (1966-1967)
Fargo A100 Van (1964-1970)
Dodge A100 (1964-1966)
Buick Sportwagon (1964)
Buick Special (1964-1967)
Fargo P300 Parcel Delivery (1961-1971)
Fargo P200 Parcel Delivery (1961-1971)
Fargo FW100 Pickup (1961-1965)
Fargo FW100 Panel Delivery (1961-1965)
Fargo F100 Pickup (1961-1963, 1965)
Fargo F100 Panel Delivery (1961-1965)
Dodge P300 Van (1961, 1973-1974)
Dodge P200 Van (1961, 1973-1974)
Dodge P100 Van (1961, 1967)
Plymouth Custom (1960-1961)
Dodge Seneca (1960-1961)
Dodge Pioneer (1960-1961)
Dodge Phoenix (1960-1961)
Jeep CJ6A (1966-1968)
Jeep CJ5A (1966-1968)
Plymouth Belvedere II (1965-1967)
Plymouth Caravelle (1978-1983)
Plymouth Valiant (1960-1976)
Plymouth Trailduster (1974-1980)
Plymouth Suburban (1960-1961)
Plymouth Sport Wagon (1960-1961)
Plymouth Scamp (1971-1976)
Plymouth Savoy (1960-1964)
Plymouth Satellite (1965-1974)
Plymouth PB200 Van (1974)
Plymouth PB100 Van (1974)
Plymouth Fury III (1965-1973)
Plymouth Fury II (1965-1974)
Plymouth Fury I (1968-1974)
Plymouth Fury (1960-1978)
Plymouth Fleet Special (1960-1963)
Plymouth Duster (1970-1976)
Plymouth Belvedere (1960-1970)
Plymouth Barracuda (1964-1972)
Oldsmobile F85 (1964-1965)
Jeep Universal (1966-1967)
Jeep Jeepster (1966-1971)
Jeep DJ6 (1966-1968)
Jeep DJ5 (1966-1971)
Jeep Dispatcher (1966-1969)
Jeep Commando (1966-1971)
Jeep CJ6 (1966-1971)
Jeep CJ5 (1966-1971)
Jeep CJ3 (1966)
Dodge W300 Series (1963-1967)
Dodge W300 Pickup (1968-1974)
Dodge W200 Series (1961-1967)
Dodge W200 Pickup (1968-1974)
Dodge W100 Series (1961-1967)
Dodge W100 Pickup (1968-1974)
Dodge Ramcharger (1974-1980)
Dodge Polara (1963-1964, 1966-1973)
Dodge P300 (1965, 1967-1972)
Dodge P200 (1965-1972)
Dodge P100 (1965-1966, 1968)
Dodge Lancer (1961-1962)
Dodge Dart (1960-1976)
Dodge D300 Series (1961-1967)
Dodge D300 Pickup (1968-1974)
Dodge D200 Series (1961-1967)
Dodge D200 Pickup (1968-1974)
Dodge D100 Series (1961-1967)
Dodge D100 Pickup (1968-1974)
Dodge Coronet (1965-1976)
Dodge Charger (1968-1974, 1976)
Dodge Challenger (1970-1972)
Dodge CB300 (1973-1975, 1977-1979)
Dodge B300 Van (1971-1974)
Dodge B200 Van (1971-1974)
Dodge B100 Van (1971-1974)
Dodge A108 Van (1967-1970)
Dodge A100 Truck (1964-1970)
Dodge 440 (1963-1964)
Dodge 330 (1963-1964)
Buick Skylark (1964-1967)

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
