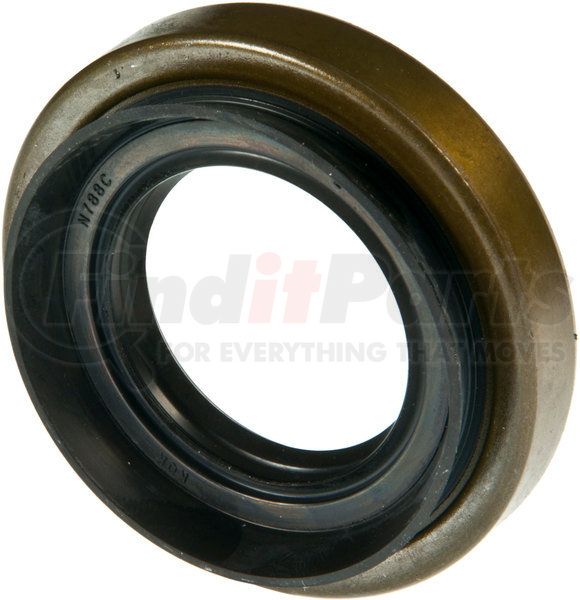

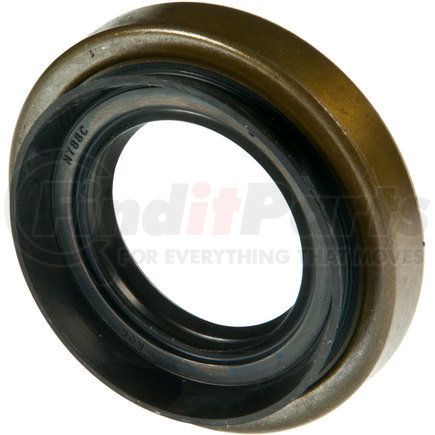

Name: National Seals 710419 Oil Seal
SKU: 710419
Price: 12.99 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® oil seals are recognized worldwide for their quality and reliable performance for every type of repair.

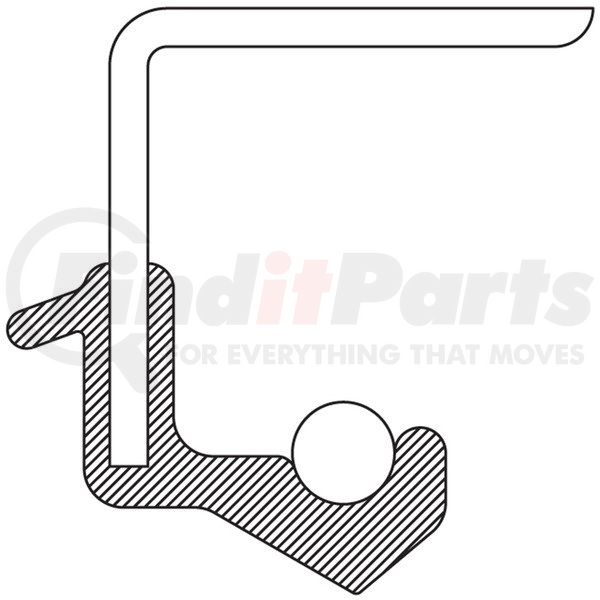

• Design Type: Spring Loaded; Multi-Lip

• Provides good low temperature capability

• Low swell in hydrocarbon fluids

• Temperature Range: -40°F to 225°F; -40°C to 107°C

• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
Specifications

OIL SEAL: Part Description: Oil Seal

Shaft (Inch): 1.378

Shaft (MM): 35.000

Housing Bore (Inch): 2.480

Housing Bore (MM): 63.000

Outside Diameter (Inch): 2.491

Outside Diameter (MM): 63.280

Width (Inch): 0.394

Width (MM): 10.000

Material: Nitrile

Type: 68

Series: 710400
Applications

PASSENGER CAR & LIGHT TRUCK

Chevrolet Nova 1988-1985

Chevrolet Prizm 2002-1998

Geo Prizm 1997-1989

Lexus RX300 2003-1999

Lexus RX330 2006-2004

Lexus RX350 2009-2007

Lotus Elise 2011-2005

Lotus Exige 2010-2006

Pontiac Vibe 2010-2003

Scion xA 2006-2004

Scion xB 2006-2004

Scion xD 2012-2008

Toyota 4Runner 1989-1986

Toyota Celica 2005-1990

Toyota Corolla 2012-1984

Toyota Echo 2005-2000

Toyota Highlander 2005-2001

Toyota Matrix 2012-2003

Toyota MR2 1989-1985

Toyota MR2 Spyder 2005-2000

Toyota Paseo 1999-1992

Toyota Pickup 1989-1986

Toyota Previa 1997-1991

Toyota RAV4 2010-1996

Toyota Sienna 2010-2004

Toyota Tercel 1999-1987

Toyota Van 1989-1987

Toyota Van Wagon 1988

Toyota Yaris 2012-2006

Product Description

Oil Seal

Application Summary

1985-1988 Chevrolet Nova (Left); 1998-2002 Chevrolet Prizm (Left); 1989-1997 Geo Prizm (Left); 2003-2010 Pontiac Vibe (Left); 1999-2003 Lexus RX300 (Rear); 2004-2006 Lexus RX330 (Rear); 2007-2009 Lexus RX350 (Rear); 1986-1995 Toyota 4Runner (Front); 2001-2013 Toyota Highlander (Rear); 1988-1991 Toyota Camry (Front); 1988-2005 Toyota Celica (Front, Left); 1984-2013 Toyota Corolla (Left); 2000-2005 Toyota Echo (Left); 2003-2014 Toyota Matrix (Left); 1985-1989 Toyota MR2 (Left); 2000-2005 Toyota MR2 Spyder (Left); 1992-1999 Toyota Paseo (Left); 1991-1997 Toyota Previa (Front); 2004-2010 Toyota Sienna (Rear); 1987-1999 Toyota Tercel (Left); 1996-2005 Toyota RAV4 (Rear); 1988 Toyota Van Wagon (Front); 1986-1995 Toyota Pickup (Front); 2006-2019 Toyota Yaris (Left); 1987-1989 Toyota Van (Front); 2005-2011 Lotus Elise (Left); 2006-2010 Lotus Exige (Left); 2004-2006 Scion xA (Left); 2004-2006 Scion xB (Left); 2008-2014 Scion xD (Left)

Features & Benefits

Design type: spring loaded; single-lip
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Material	Nitrile
Inside Diameter	1.378 IN
Thickness	0.394 IN
Outside Diameter	2.491 IN
Sealing Material	Nitrile
Housing Bore (inch)	2.480 IN
Housing Bore (mm)	63.000 MM
Outside Diameter (inch)	2.491 IN
Outside Diameter (mm)	63.280 MM
Overall Width With Side Lip (mm)	16.500 MM
Overall Width With Side Lip (inch)	0.650 IN
Part Description	Oil Seal
Series	710400
Shaft (inch)	1.378 IN
Shaft (mm)	35.000 MM
Type	68
Unit of Dimension	Metric
Width (inch)	0.394 IN
Width (mm)	10.000 MM

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00087674970686

Part Interchanges

Fits Vehicles

Geo Prizm (1989-1997)
Chevrolet Prizm (1998-2002)
Chevrolet Nova (1985-1988)
Scion xD (2008-2014)
Lexus RX350 (2007-2009)
Toyota Yaris (2006-2019)
Lotus Exige (2006-2010)
Lotus Elise (2005-2011)
Lexus RX330 (2004-2006)
Toyota Sienna (2004-2010)
Scion xB (2004-2006)
Scion xA (2004-2006)
Pontiac Vibe (2003-2010)
Toyota Van Wagon (1988)
Toyota Van (1987-1989)
Toyota RAV4 (1996-2005)
Toyota Tercel (1987-1999)
Toyota Pickup (1986-1995)
Toyota Previa (1991-1997)
Toyota Paseo (1992-1999)
Toyota MR2 Spyder (2000-2005)
Toyota MR2 (1985-1989)
Toyota Matrix (2003-2014)
Toyota Echo (2000-2005)
Toyota Corolla (1984-2013)
Toyota Celica (1988-1997, 2000-2005)
Toyota Camry (1988-1991)
Toyota Highlander (2001-2013)
Toyota 4Runner (1986-1995)
Lexus RX300 (1999-2003)

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
