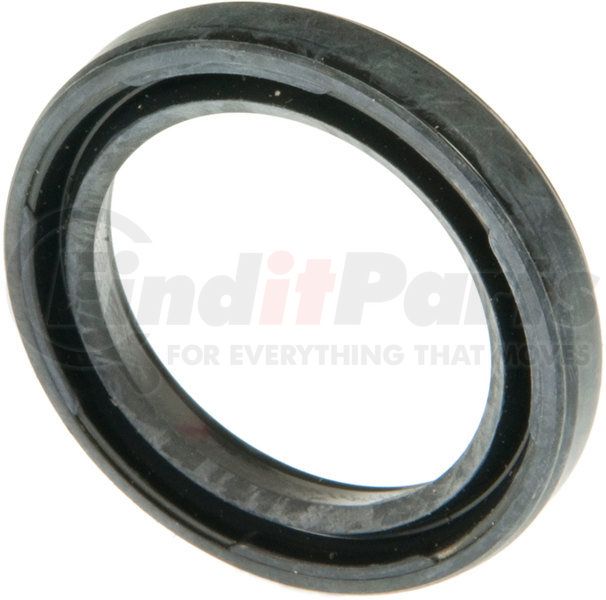

Name: National Seals 710254 Trans Case Seal
SKU: 710254
Price: 7.99 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® oil seals are recognized worldwide for their quality and reliable performance for every type of repair.

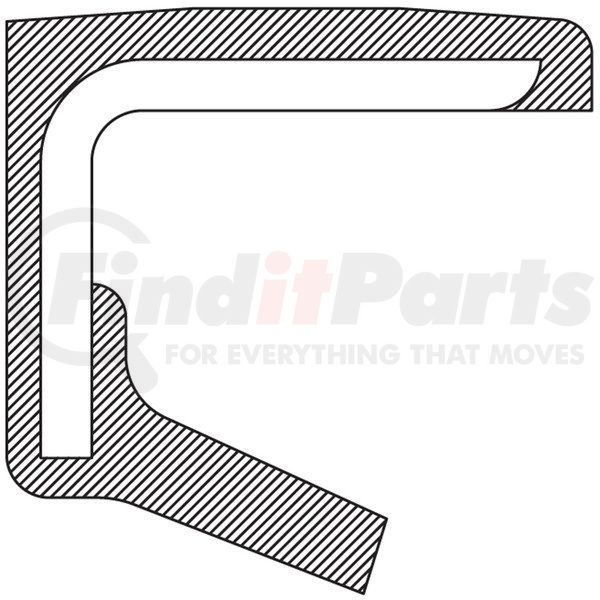

• Design Type: Springless; Single-Lip

• Provides good low temperature capability

• Low swell in hydrocarbon fluids

• Temperature Range: -40°F to 225°F; -40°C to 107°C

• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
Specifications

OIL SEAL: Part Description: Oil Seal

Shaft (Inch): 0.905

Shaft (MM): 23.000

Housing Bore (Inch): 1.252

Housing Bore (MM): 31.800

Outside Diameter (Inch): 1.260

Outside Diameter (MM): 32.000

Width (Inch): 0.217

Width (MM): 5.500

Material: Nitrile

Type: 34

Series: 710200
Applications

PASSENGER CAR & LIGHT TRUCK

Lexus GX470 2009-2003

Toyota 4Runner 2012-1985

Toyota FJ Cruiser 2012-2007

Toyota Pickup 1995-1985

Toyota Previa 1997-1991

Toyota Sequoia 2012-2001

Toyota T100 1998-1993

Toyota Tacoma 2012-1995

Toyota Tundra 2006-2000

Product Description

Trans Case Comp. Flange Seal

Application Summary

2003-2009 Lexus GX470 (Drive: 4WD / Qualifier: with Aisin VF4BM Transfer Case, with Part Time 4WD, 2 Speed); 2010-2019 Lexus GX460 (Drive: AWD / Qualifier: with Aisin VF4BM Transfer Case, with Part Time 4WD, 2 Speed); 1985-2019 Toyota 4Runner (Drive: 4WD / Qualifier: with Aisin RF1A Transfer Case, with Part Time 4WD, 2 Speed, with Aisin VF1A Transfer Case, with Aisin VF4AM Transfer Case, with Full Time 4WD, with Aisin VF4BM Transfer Case, with Aisin VF2A Transfer Case, with Aisin VF2BM Transfer Case); 1991-1997 Toyota Previa (Drive: AWD / Qualifier: with Aisin TF1AV Transfer Case, with Full Time 4WD, 1 Speed); 2000-2006 Toyota Tundra (Drive: 4WD / Qualifier: with Aisin VF4AM Transfer Case, with Full Time 4WD, 2 Speed, with Aisin VF4BM Transfer Case, with Part Time 4WD, with Aisin VF2BM Transfer Case, with Aisin VF2A Transfer Case); 2001-2008 Toyota Sequoia (Drive: 4WD / Qualifier: with Aisin VF4AM Transfer Case, with Full Time 4WD, 2 Speed); 1993-1998 Toyota T100 (Drive: 4WD / Qualifier: with Aisin VF1A Transfer Case, with Part Time 4WD, 2 Speed); 1995-2019 Toyota Tacoma (Drive: 4WD / Qualifier: with Aisin RF1A Transfer Case, with Part Time 4WD, 2 Speed, with Aisin VF1A Transfer Case, with Aisin VF2BM Transfer Case, with Aisin VF2A Transfer Case, with Aisin VF2CM Transfer Case); 1985-1995 Toyota Pickup (Drive: 4WD / Qualifier: with Aisin RF1A Transfer Case, with Part Time 4WD, 2 Speed, with Aisin VF1A Transfer Case); 2007-2014 Toyota FJ Cruiser (Drive: 4WD / Qualifier: with Aisin VF2A Transfer Case, with Part Time 4WD, 2 Speed, with Aisin VF4B Transfer Case, with Full Time 4WD)

Features & Benefits

Design type: springless; single-lip
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Material	Nitrile
Inside Diameter	0.905 IN
Thickness	0.217 IN
Outside Diameter	1.268 IN
Housing Bore (inch)	1.260 IN
Housing Bore (mm)	32.000 MM
Outside Diameter (inch)	1.268 IN
Outside Diameter (mm)	32.200 MM
Part Description	Oil Seal
Series	710200
Shaft (inch)	0.905 IN
Shaft (mm)	23.000 MM
Type	34
Unit of Dimension	Metric
Width (inch)	0.217 IN
Width (mm)	5.500 MM

Additional Information

Country of Origin (Primary)	JP
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956297443

Part Interchanges

Fits Vehicles

Lexus GX460 (2010-2019)
Toyota FJ Cruiser (2007-2014)
Toyota Tacoma (1995-2019)
Toyota T100 (1993-1998)
Toyota Sequoia (2001-2008)
Toyota Tundra (2000-2006)
Toyota Previa (1991-1997)
Toyota Pickup (1985-1995)
Toyota 4Runner (1985-2019)
Lexus GX470 (2003-2009)

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
