Name: National Seals 710134 Man Trans Seal
SKU: 710134
Price: 16.49 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions For more than 70 years. Our design team keeps pace with the industry and provides advanced solutions For today™s vehicles. : • National® oil seals are recognized worldwide For their quality and reliable performance For every type of repair.

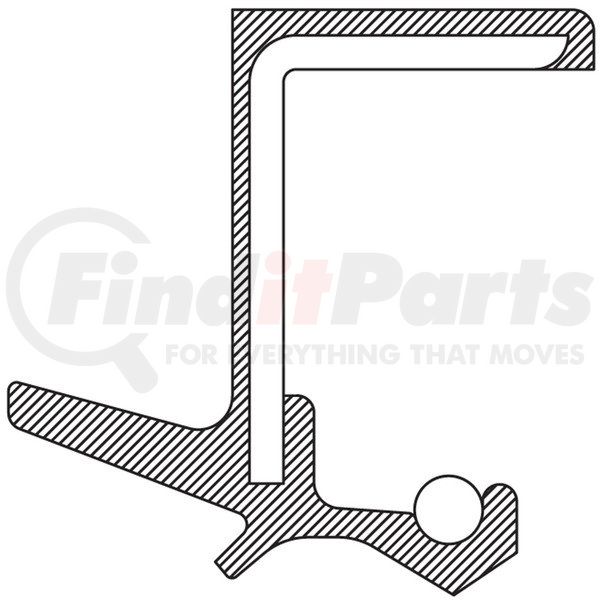

• Design Type: Spring Loaded; Multi-Lip

• Provides good low temperature capability

• Low swell in hydrocarbon fluids

• Temperature Range: -40°F to 225°F; -40°C to 107°C

• Products sold are warranted to be free from defects in workmanship or material For a period of one (1) year from the date of purchase.
Specifications

OIL SEAL: Part Description: Oil Seal

Shaft (Inch): 1.575

Shaft (MM): 40.000

Housing Bore (Inch): 2.205

Housing Bore (MM): 56.000

Outside Diameter (Inch): 2.213

Outside Diameter (MM): 56.200

Flanged Outside Diameter (Inch): 2.559

Flanged Outside Diameter (MM): 65.000

Width (Inch): 0.394

Width (MM): 10.000

Material: Nitrile

Type: 40

Series: 710100
Applications

PASSENGER CAR & LIGHT TRUCK

For Nissan 200SX 1998-1995

For Nissan NX 1993-1991

For Nissan Pulsar 1983

For Nissan Pulsar NX 1990-1983

For Nissan Sentra 1999-1983

For Nissan Stanza 1986-1982

Product Description

Man Trans Output Shaft Seal

Application Summary

1991-1993 Nissan NX (Right) (Transmission Base Gear: 5 & Transmission Control Type: Manual / Qualifier: with Aichi F31A Transmission); 1995-1998 Nissan 200SX (Right) (Transmission Base Gear: 5 & Transmission Control Type: Manual / Qualifier: with Aichi F31A Transmission); 1983 Nissan Pulsar (Right) (Transmission Base Gear: 5 & Transmission Control Type: Manual / Qualifier: with Aichi F31A Transmission); 1983-1990 Nissan Pulsar NX (Right) (Transmission Base Gear: 5 & Transmission Control Type: Manual / Qualifier: with Aichi F31A Transmission); 1983-1999 Nissan Sentra (Right) (Transmission Base Gear: 5 & Transmission Control Type: Manual / Qualifier: with Aichi F31A Transmission); 1982-1986 Nissan Stanza (Right) (Transmission Base Gear: 5 & Transmission Control Type: Manual / Qualifier: with Aichi F31A Transmission)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Material	Nitrile
Inside Diameter	1.575 IN
Thickness	0.394 IN
Outside Diameter	2.213 IN
Flanged Outside Diameter (inch)	2.559 IN
Flanged Outside Diameter (mm)	65.000 MM
Housing Bore (inch)	2.205 IN
Housing Bore (mm)	56.000 MM
Outside Diameter (inch)	2.213 IN
Outside Diameter (mm)	56.200 MM
Overall Width With Side Lip (mm)	20.000 MM
Overall Width With Side Lip (inch)	0.787 IN
Part Description	Oil Seal
Series	710100
Shaft (inch)	1.575 IN
Shaft (mm)	40.000 MM
Type	40
Unit of Dimension	Metric
Width (inch)	0.394 IN
Width (mm)	10.000 MM

Additional Information

Country of Origin (Primary)	TW
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956233670

Part Interchanges

Fits Vehicles

Nissan NX (1991-1993)
Nissan Stanza (1982-1986)
Nissan Sentra (1983-1999)
Nissan Pulsar NX (1983-1984, 1987-1990)
Nissan Pulsar (1983)
Nissan 200SX (1995-1998)

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
