Name: National Seals 710078 Auto Trans Seal
SKU: 710078
Price: 26.99 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® oil seals are recognized worldwide for their quality and reliable performance for every type of repair.

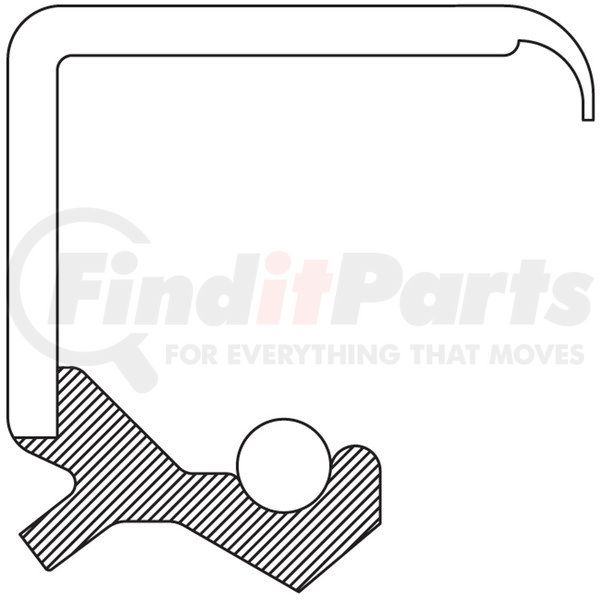

• Design Type: Spring Loaded; Multi-Lip

• Excellent high temperature capabilities and compatible within a wide range of fluids

• Provides long life while provideing superior performance

• Temperature Range: -40°F to 400°F; -40°C to 204°C

• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
Specifications

OIL SEAL: Part Description: Oil Seal

Shaft (Inch): 1.772

Shaft (MM): 45.000

Housing Bore (Inch): 2.441

Housing Bore (MM): 62.000

Outside Diameter (Inch): 2.447

Outside Diameter (MM): 62.150

Width (Inch): 0.315

Width (MM): 8.000

Material: Fluoro-Elastomer

Type: 47

Series: 710000
Applications

PASSENGER CAR & LIGHT TRUCK

Asuna Sunfire 1993

Chevrolet Spectrum 1988-1985

Geo Spectrum 1989

Geo Storm 1993-1990

Isuzu I-Mark 1989-1985

Isuzu Stylus 1993-1991

Pontiac Sunburst 1988-1985

Product Description

Auto Trans Torque Conv. Seal

Application Summary

1985-1989 Isuzu I-Mark (Transmission Base Gear: 3 & Transmission Control Type: Automatic / Qualifier: with Jatco F3A Transmission); 1991-1993 Isuzu Stylus (Transmission Base Gear: 3 & Transmission Control Type: Automatic / Qualifier: with Jatco F3A Transmission); 1985-1988 Chevrolet Spectrum (Transmission Base Gear: 3 & Transmission Control Type: Automatic / Qualifier: with Jatco F3A Transmission); 1989 Geo Spectrum (Transmission Base Gear: 3 & Transmission Control Type: Automatic / Qualifier: with Jatco F3A Transmission); 1990-1993 Geo Storm (Transmission Base Gear: 3 & Transmission Control Type: Automatic / Qualifier: with Jatco F3A Transmission); 1985-1988 Pontiac Sunburst (Qualifier: with Jatco F3A Transmission, 3 Speed); 1993 Asuna Sunfire (Qualifier: with Jatco F3A Transmission, 3 Speed)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40degF to 400degF / -40degC to 204degC
Excellent high temperature capabilities
Compatible with wide range of fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Material	Fluoro-Elastomer
Inside Diameter	1.772 IN
Thickness	0.315 IN
Outside Diameter	2.447 IN
Housing Bore (inch)	2.441 IN
Housing Bore (mm)	62.000 MM
Outside Diameter (inch)	2.447 IN
Outside Diameter (mm)	62.150 MM
Part Description	Oil Seal
Series	710000
Shaft (inch)	1.772 IN
Shaft (mm)	45.000 MM
Type	47
Unit of Dimension	Metric
Width (inch)	0.315 IN
Width (mm)	8.000 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956180165

Part Interchanges

Fits Vehicles

Geo Storm (1990-1993)
Geo Spectrum (1989)
Chevrolet Spectrum (1985-1988)
Isuzu Stylus (1991-1993)
Isuzu I-Mark (1985-1989)
Asuna Sunfire (1993)
Pontiac Sunburst (1985-1988)

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
